JAZZ-AC-T is a 2.7″ monochrome 128×64 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Negative Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C). It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used indoor and outdoor. This product is assembled chip on glass with 1/65 Duty and 1/9 Bias. This LCD uses Controller IC ST7567 or equivalent with an option to choose between serial interface (4-line SPI) and parallel interface (6800 or 8080). This is an ROHS compliant product manufactured with ISO standards and procedures.

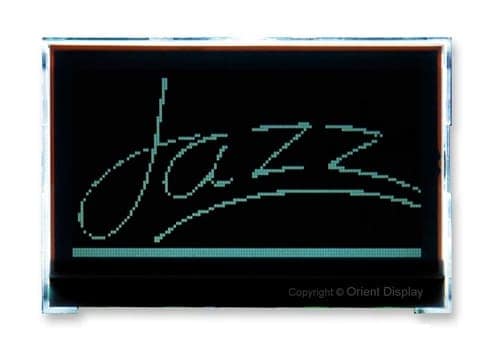

Graphic 128×64 COG LCD Module
The highest quality product at the lowest price.
- FSTN Negative
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- COG Type (Chip on Glass)
- ROHS Compliant
Download Product References Below
Product Datasheet: JAZZ-AC-T
Downloadable Example Codes for JAZZ-A Modules
JAZZ-AC-W Software Code (Controller ST7567 MCU NXP1766)
JAZZ-AC-W Display Code
Product Demo (Video): JAZZ-AC-W with White LED backlight
|Dots/ Resolution||128 x 64|
|LCD Mode||FSTN Negative|
|Diagonal Dimension (inches)||2.7|
|Module Size WxHxT max(mm)||69.10 x 46.40 x 2.90 (LCD Only)|
|View Area WxH (mm)||65.50 x 37.20|
|Dot Size WxH (mm)||0.49 x 0.45|
|Dot Pitch WxH (mm)||0.52 x 0.48|
Backlight Highly Recommended
|COG (Chip on Glass)|
JAZZ-A Modules are one of our best selling graphic LCD module offerings. It is widely known in the LCD market because it is available in many varieties which gives it a lot of versatility to formulate any LCD mode and back-light color combination you can think of while having very competitive pricing. This Line also offers these combinations without having to modify your PCB or software design.
