Orient Display- offering graphic LCD display module with top-notch products at attractive prices.

Orient Display is a company that specializes in manufacturing graphic LCD, graphic display modules and many more. The company was founded in 1996 by specializing in fields of production, R&D, quality controls. Thanks for the management and employee’s continuous hardworking and enormous effort and shareholder continuous investment over years, Orient Display factory is now the world’s lead LCD graphic displays manufacturer in flat panel industry and is listed as a public company in China stock market.. Now, Orient Display factory has 3 plants that can produce graphic LCD modules. Factories have complete quality and environment management system, ISO9001, ISO/IATF16949, ISO14001, IECQ QC080000. It is also No.1 in the world for automotive capacitive touch screen which took around 18% market share in the world automotive market.Orient Display has extensive graphic LCD displays (liquid crystal display) standard product lines in dot matrix format of graphic resolution including 122×32, 128×64, 128×128, 160×32, 160×64, 160×160, 192×48, 192×64,202×32, 240×64, 240×160, 240×128, 282×128, 320×240 etc. The sizes range from 1.0” LCD to 5.2” LCD display.

Orient Display graphic LCD display modules

Orient Display graphic LCD display modules include different options of polarizer in reflective (saving power), transmissive (better contrast) or transflective (sunlight readable and battery powered) types.

Display technologies

Orient Display graphic LCD display modules have the selection of different display technologies from low-cost TN (twisted nematic), HTN (high performance twisted nematic), to higher end yellow green STN (super twisted nematic), blue STN, gray STN, FSTN (Film compensated STN), vertical alignment LCD to even higher quality wide viewing angle and automotive grade FFSTN, ASTN to meet different requirements.
Orient Display graphic LCD display modules also have different kinds for package technologies from traditional COB (Chip on Board), to TAB (Tape Automatic Bonding), to highly compacted COG ( Chip on Glass) and COF (Chip on Film).

Colors of backlight

Orient Display graphic LCD display modules have the options of different colors of backlight, yellow green, pure green blue, red, orange, amber and RGB (Red-Green-Blue) to make the monochrome LCDs more colorful.

Orient Display graphic LCD display modules have most available interface choices, I2C, SPI, parallel 6800, 8080, MCU etc. With our strong technical capability, some of our graphic LCD products are with Arduino shield which are more convenient for our customers.

Touch panel options

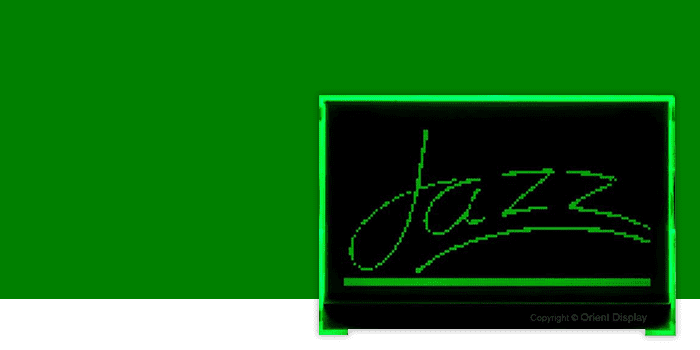

Orient Display graphic LCD display modules have touch panel options. The 2.7” JAZZ 128×64 dot matrix graphic LCD display series has option of RTP (Resistive Touch Panel). Most of Orient Display graphic LCD displays can be custom made either with RTP or CTP (Capacitive Touch Panel).

Orient Display graphic LCD displays have been widely used in industry instrument, meters, machinery equipment, home appliances, white goods, smart home monitors, thermostats, automation, hand held medical devices, automotive, POS systems, audio/visual display systems, marine, aerospace, toys etc.

If you have any questions about Orient Display technologies and products, feel free to contact our engineers for details.

Showing all 20 results

Show sidebar

AM0186R-11 (282×128 dots COG LCD Module)

$4.12
  • Resolution: 282 x 128 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Reflective
  • Backlight: None
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG

AMG12232DR-B-B6WTDW (2.2″ 122×32 Graphic LCD Module)

$11.38
  • Diagonal Dimension: 2.2 Inch
  • Resolution: 122 x 32 pixels
  • LCD mode: STN Negative Blue
  • Polarizer: Transmissive
  • Backlight: White LED
  • White on Blue Background
  • Connection: Pin
  • IC Package Type: COB

AMG12232DR-B-G6WFDW (2.2″ 122×32 Graphic LCD Module)

$11.38
  • Diagonal Dimension: 2.2 Inch
  • Resolution: 122 x 32 pixels
  • LCD mode: STN Positive Gray
  • Polarizer: Transflective
  • Backlight: White LED
  • Dark on Gray Background
  • Connection: Pin
  • IC Package Type: COB

AMG128128PR-G-W12WFDW (2.1″ 128×128 COG LCD Module)

$12.38
  • Diagonal Dimension: 2.1 Inch
  • Resolution: 128 x 128 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transflective
  • Backlight: White LED
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG

AMG12864AR-B-Y6WFDY-AT-NV-Y (2.9″ 128×64 Graphic LCD Module)

$15.30
  • Diagonal Dimension: 2.9 Inch
  • Resolution: 128 x 64 pixels
  • LCD mode: STN Positive Yellow Green
  • Polarizer: Transflective
  • Backlight: Yellow Green LED
  • Dark on Yellow Green Background
  • Connection: Pin
  • IC Package Type: COB

AMG12864AR-B-Y6WFDY-SS (2.9″ 128×64 Graphic LCD Module) NO DC-DC

$15.30
  • Diagonal Dimension: 2.9 Inch
  • Resolution: 128 x 64 pixels
  • LCD mode: STN Positive Yellow Green
  • Polarizer: Transflective
  • Backlight: Yellow Green LED
  • Dark on Yellow Green Background
  • Connection: Pin
  • IC Package Type: COB
  • Features: No DC-DC

AMG12864BR-B-W6WFDW-NV (2.7″ 128×64 COB LCD Module)

$15.52
  • Diagonal Dimension: 2.7 Inch
  • Resolution: 128 x 64 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transflective
  • Backlight: White LED
  • Black on Gray Background
  • Connection: Pin
  • IC Package Type: COG

AMG12864JR-B-Y6WFDY-NV (2.4″ 128×64 Graphic LCD Module)

$13.54
  • Diagonal Dimension: 2.4 Inch
  • Resolution: 128 x 64 pixels
  • LCD mode: STN Positive Yellow Green
  • Polarizer: Transflective
  • Backlight: Yellow Green LED
  • Dark on Yellow Green Background
  • Connection: Pin
  • IC Package Type: COB

AMG12864PR-G-B12WTDW (2.9″ 128×64 COG LCD Module)

$13.04
  • Diagonal Dimension: 2.9 Inch
  • Resolution: 128 x 64 pixels
  • LCD mode: STN Negative Blue
  • Polarizer: Transmissive
  • Backlight: White LED
  • White on Blue Background
  • Connection: FPC
  • IC Package Type: COG

AMG12864PR-G-W12WTDW (2.9″ 128×64 COG LCD Module)

$13.47
  • Diagonal Dimension: 2.9 Inch
  • Resolution: 128 x 64 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transmissive
  • Backlight: White LED
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG

AMG12864R2-G-W6WFDW (1.7″ 128×64 COG LCD Module)

$9.61
  • Diagonal Dimension: 1.7 Inch
  • Resolution: 128 x 64 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transflective
  • Backlight: White LED
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG

AMG19248AR-B-Y6WFDY (3.8″ 192×48 Graphic LCD Module)

$14.16
  • Diagonal Dimension: 3.8 Inch
  • Resolution: 192 x 48 pixels
  • LCD mode: STN Positive Yellow Green
  • Polarizer: Transflective
  • Backlight: Yellow Green LED
  • Dark on Yellow Green Background
  • Connection: Pin
  • IC Package Type: COB

AMG19264AR-B-Y6WFDY-NV (3.3″ 192×64 Graphic LCD Module)

$15.98
  • Diagonal Dimension: 3.3 Inch
  • Resolution: 192 x 64 pixels
  • LCD mode: STN Positive Yellow Green
  • Polarizer: Transflective
  • Backlight: Yellow Green LED
  • Dark on Yellow Green Background
  • Connection: Pin
  • IC Package Type: COB

AMG240128PR-G-B6WTDW (4.0″ 240×128 Graphic COG LCD Module)

$20.46
  • Diagonal Dimension: 4.0 Inch
  • Resolution: 240 x 128 pixels
  • LCD mode: STN Negative Blue
  • Polarizer: Transmissive
  • Backlight: White LED
  • White on Blue Background
  • Connection: FPC
  • IC Package Type: COG

AMG240128PR-G-W6WFDW (4.0″ 240×128 COG Graphic LCD Module)

$19.66
  • Diagonal Dimension: 4.0 Inch
  • Resolution: 240 x 128 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transflective
  • Backlight: White LED
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG

AMG240160P-G-W6WFDW (2.5″ 240×160 COG Graphic LCD Module)

$12.24
  • Diagonal Dimension: 2.5 Inch
  • Resolution: 240 x 160 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transflective
  • Backlight: White LED
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG

AMG240160Q-G-W6WFDW (3.9″ 240×160 COG Graphic LCD Module)

$21.52
  • Diagonal Dimension: 2.8 Inch
  • Resolution: 282 x 128 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transflective
  • Backlight: White LED
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG

AMG24064AR-M-Y6WFDY-NV (5.2″ 240×64 Graphic LCD Module)

$40.63
  • Diagonal Dimension: 5.2 Inch
  • Resolution: 240 x 64 pixels
  • LCD mode: STN Positive
  • Polarizer: Transflective
  • Backlight: Yellow Green LED
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COB

AMG24064BR-M-Y6WFDY-UC-NV (5.2″ 240×64 Graphic LCD Module)

$40.63
  • Diagonal Dimension: 5..2 Inch
  • Resolution: 240 x 64 pixels
  • LCD mode: STN Positive
  • Polarizer: Transflective
  • Backlight: Yellow Green LED
  • Black on Yellow Green Background
  • Connection: Pin
  • IC Package Type: COB

AMG24064P-G-W6WFDW (4.3″ 240×64 COG LCD Module)

$15.99
  • Diagonal Dimension: 4.3 Inch
  • Resolution: 240 x 64 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transflective
  • Backlight: White LED
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG
