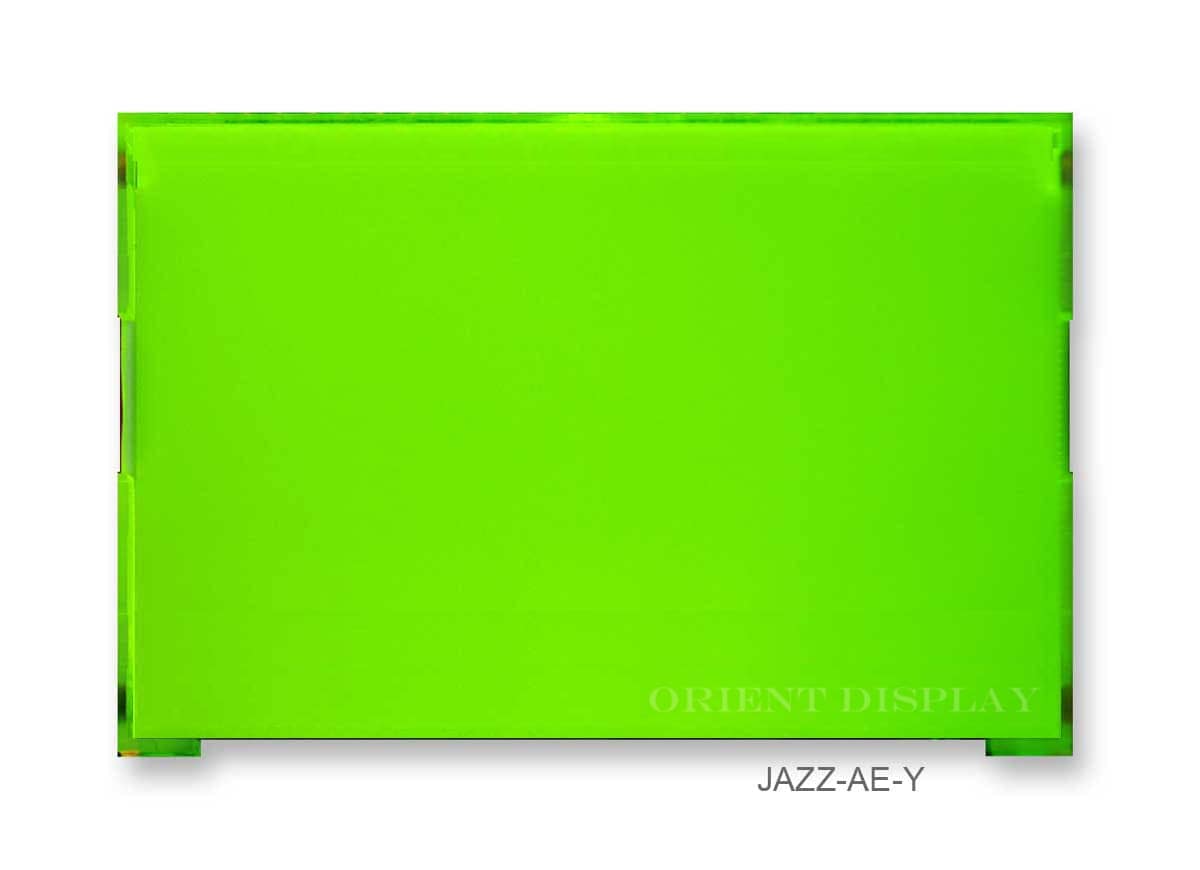

JAZZ-AE-Y (YELLOW GREEN LED Backlight for JAZZ A Graphic LCD)
$2.92CONTACT FOR VOLUME PRICING
77 in stock
- JAZZ LED Backlight
- Diagonal Dimension: 2.7 Inch
- Backlight: Yellow Green LED
- Assembly: Wired Type
- Touch Panel: None
Pricing table
Quantity | Unit Price |
---|---|
25-49 | $2.53 |
50-99 | $2.13 |
100-149 | $1.97 |
150-199 | $1.87 |
200- | $1.77 |
Contact us for larger volume orders and any other enquiries.
Description
JAZZ-AE-Y is a Yellow Green LED backlight that can be used for all JAZZ-A LCD modules.
It has a robust snap-in design that perfectly secures the LCD.
Download Product References Below
Product Datasheet: JAZZ-AE-Y
Model/Series Name: | JAZZ-AE-Y |
Diagonal Dimension (in): | 2.7 |
Backlight Size (mm) | 71.2 X 48.5 X 5.2 |
Active Area (mm) | 69.4 x 46.7 |
Backlight Color | Yellow Green |
Backlight Type | LED |
Backlight Assembly | Wired Type |
JAZZ-A -Y Modules are one of our best selling graphic LCD module offerings. It is widely known in the LCD market because it is available in many varieties which gives it a lot of versatility to formulate any LCD mode and back-light color combination you can think of while having very competitive pricing. This Line also offers these combinations without having to modify your PCB or software design.
Please send your email to info@orientdisplay.com for more details.
LCD Options: FSTN Positive JAZZ-AC-W | FSTN Negative JAZZ-AC-T |
STN Positive Gray JAZZ-AC-G | STN Positive Yellow Green JAZZ-AC-Y | STN Negative Blue JAZZ-AC-B
LED backlight Options: White JAZZ-AE-W | Red JAZZ-AE-R | Blue JAZZ-AE-B
Green JAZZ-AE-G | Amber JAZZ-AE-A | Yellow Green JAZZ-AE-Y
Additional information
Weight | 0.21 lbs |
---|---|
Dimensions | 48.50 × 71.20 × 5.20 mm |
displaytype | |
backlightcolor | |
diagonal-size | |
touchpanel |
