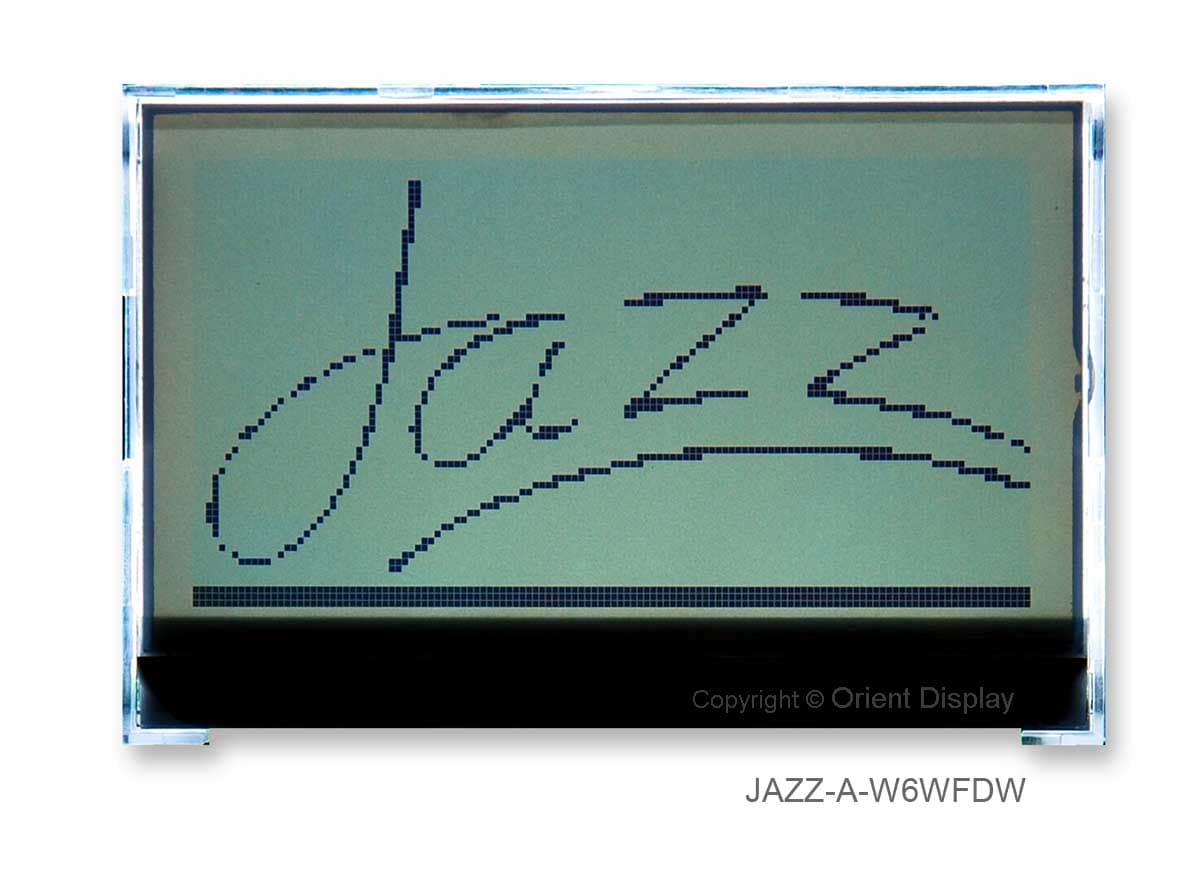

JAZZ-AC-W (Graphic 128×64 COG LCD Module)
$5.81CONTACT FOR VOLUME PRICING
40 in stock
- JAZZ Monochrome Graphic LCD Glass Panel
- Diagonal Dimension: 2.7 Inch
- Resolution: 128 x 64 pixels
- LCD mode: FSTN Positive
- Polarizer: Transflective
- Connection: FPC
- IC Package Type: COG
- Backlight: None
- Touch Panel: None
Pricing table
Quantity | Unit Price |
---|---|
25-49 | $5.15 |
50-99 | $4.48 |
100-149 | $4.14 |
150-199 | $3.86 |
200- | $3.58 |
Contact us for larger volume orders and any other enquiries.
Description
Graphic 128×64 COG LCD module JAZZ-AC-W
JAZZ-AC-W is a 2.7″ monochrome 128×64 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C). It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used indoor and outdoor. 128×64 JAZZ-AC-W is assembled chip on glass with 1/65 Duty and 1/9 Bias. This LCD uses Controller IC ST7567 or equivalent with an option to choose between serial interface (4-line SPI) and parallel interface (6800 or 8080). This is an ROHS compliant product manufactured with ISO standards and procedures.
The highest quality product at the lowest price.
Graphic 128×64 COG LCD Module JAZZ-AC-W
- FSTN Positive
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective
- COG Type (Chip on Glass)
- ROHS Compliant
Download Product References Below
Product Datasheet: JAZZ-AC-W
Controller Datasheet: ST7567
Downloadable Example Codes for JAZZ-A Modules
JAZZ-AC-W Software Code (Controller ST7567 MCU NXP1766)
JAZZ-AC-W Display Code
Product Demo (Video): JAZZ-AC-W with White LED backlight
Optional Accessories
JAZZ-A Evaluation Board: JAZZ-AB
JAZZ-A Standard Resistive Touch Panel: JAZZ-AT
Model/Series Name | JAZZ-AC-W |
Dots/ Resolution | 128 x 64 |
LCD Mode | FSTN Positive |
Polarizer Type | Transflective |
Diagonal Dimension (inches) | 2.7 |
Module Size WxHxT max(mm) | 69.10 x 46.40 x 2.90 (LCD Only) |
View Area WxH (mm) | 65.50 x 37.20 |
Dot Size WxH (mm) | 0.49 x 0.45 |
Dot Pitch WxH (mm) | 0.52 x 0.48 |
Controller | ST7567 |
LCD Assembly | COG (Chip on Glass) |
Complete set of JAZZ-AC-W with different backlight colors available for purchase: |
JAZZ-AC-W Modules are one of our best selling graphic LCD module offerings. It is widely known in the LCD market because it is available in many varieties which gives it a lot of versatility to formulate any LCD mode and back-light color combination you can think of while having very competitive pricing. This Line also offers these combinations without having to modify your PCB or software design.
Please send your email to info@orientdisplay.com for more details.
LCD Options: FSTN Positive JAZZ-AC-W | FSTN Negative JAZZ-AC-T |
STN Positive Gray JAZZ-AC-G | STN Positive Yellow Green JAZZ-AC-Y | STN Negative Blue JAZZ-AC-B
LED backlight Options: White JAZZ-AE-W | Red JAZZ-AE-R | Blue JAZZ-AE-B
Green JAZZ-AE-G | Amber JAZZ-AE-A | Yellow Green JAZZ-AE-Y
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Additional information
Weight | 0.42 lbs |
---|---|
Dimensions | 46.40 × 65.50 × 2.90 mm |
backlightcolor | |
diagonal-size | |
displaymode | |
displaytype | |
polarizertype | |
resolution | |
touchpanel | |
viewingdirection |
