OLED Display

PRODUCT IS BACKED BY ORIENT DISPLAY’S LOWEST PRICE GUARANTEE POLICY

More information

Orient Display- offering standard and custom OLED Display and OLED Panel Display Modules with top-notch products at attractive prices.

Orient Display is a company that specializes in manufacturing OLED Displays with working with OLED screen glass partners in Taiwan to offer very competitive OLED Display Price. The company was founded in 1996 by specializing in fields of production, R&D, quality controls. Thanks for the management and employee’s continuous hardworking and enormous effort and shareholder continuous investment over years, Orient Display factory is now the world’s lead touch panel display and OLED display module manufacturer in flat panel industry and is listed as a public company in China stock market.

Now, Orient Display factory has 2 production lines that can produce PMOLED and AMOLED display modules. Factories have complete quality and environment management system, ISO9001, ISO/IATF16949, ISO14001, IECQ QC080000. It is also No.1 in the world for automotive capacitive touch screen which took around 18% market share in the world automotive market.

OLED Display Advantages

  • Fast Response Speed: OLED display response times are around 1,000 times faster than LCD displays; it is around 10 0 μs (0.01 ms). While LCD displays perform poorly at low temperature which has no effect on OLED display performance.
  • Greater Contrast: LCD displays need a backlight to be seen which makes some light leaking to cause losing contrast, while OLED displays are true black for the background to create superior contrast.
  • Wider Viewing Angles: LCD displays have genetic drawback of using rubbing process in manufacturing which makes the viewing angle narrower, while OLED displays don’t have such an issue.
  • Thinner and Lighter in Weight: LCD displays need a backlight to light up. The backlight has a light guide, diffuser, reflector, BEF, PCB for LED chips, etc. which LCD displays difficult to be very thin. OLED screen panel emits light itself which makes it lighter and thinner.
  • Power Consumption: Again, an LCD screen needs a backlight to make it work. The backlight has to light the whole LCD panel even in the sleep mode or only a small fraction of the display to be used, such as showing only time on the cell. Phone. Even with quantum dots backlight technology development, it is still very expensive to use, while OLED can just display part of the pixels selectively to save power.

Orient Display Standard OLED Line

Orient Display has several standard OLED displays products for customer to buy OLED display to have hands on experience. They range from 0.96”, 1.27”, 1.45”, 1.54”, 1.69”, 2.23”, 3.12” with resolution 128×32, 128×64, 128×96, 128×128, 160×128, 256×64. The interfaces have the options of 6800,8080 parallel, 3 or 4 wire SPI, I2C, and RGB interface. Our standard OLED products colors have RGB and white, but we have a lot of other sizes, resolutions and colors to choose available either as standard or custom OLED panel display solutions. Orient Display doesn’t have a touch panel available in our standard OLED display products but custom made RTP or CTP are welcome and we also provide an integrated solutions for our customers.

For more convenience for our customers, especially for electronic students and hobbyists, Orient Display develops a line of Arduino OLED Display Modules.

Full OLED Display and Touch Panel Integration Solution

Touch panels have been a much better human machine interface which has become widely popular. Orient Display has been investing heavily for capacitive touch screen sensor manufacturing capacity and LCD module production ability. With Orient huge production capacity, top notch quality, and competitive pricing, Orient has been working with top OLED panel manufacturers to provide the best touch display technology in the market.

If you have any questions about Orient Display technologies and products, feel free to contact our engineers for details.

Showing all 24 results

Show sidebar

0.66” Arduino OLED Displays, 64×48, Monochrome White, 4-Wire SPI Interface

$7.35
  • Passive Matrix OLED
  • Diagonal Dimension: 0.66 Inch
  • Resolution: 64 x 48 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

0.68” Arduino OLED Displays, 96×32, Monochrome White, 4-Wire SPI Interface

$7.35
  • Passive Matrix OLED
  • Diagonal Dimension: 0.68 Inch
  • Resolution: 96 x 32 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

0.83” Arduino OLED Displays, 96×39, Monochrome Blue, 4-Wire SPI Interface

$7.64
  • Passive Matrix OLED
  • Diagonal Dimension: 0.83 Inch
  • Resolution: 96 x 39 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

0.95” Arduino OLED Displays, 96×64, Color RGB, 4-Wire SPI Interface

$10.20
  • Passive Matrix OLED
  • Diagonal Dimension: 0.95 Inch
  • Resolution: 96 x 64 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

0.96” Arduino OLED Displays, 128 x64, Monochrome Blue, 4-Wire SPI Interface

$8.01
  • Passive Matrix OLED
  • Diagonal Dimension: 0.96 Inch
  • Resolution: 128 x 64 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

0.96” Arduino OLED Displays, 128 x64, Monochrome White, 4-Wire SPI Interface

$8.01
  • Passive Matrix OLED
  • Diagonal Dimension: 0.96 Inch
  • Resolution: 128 x 64 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

0.96” Arduino OLED Displays, 128 x64, Monochrome Yellow/Blue, 4-Wire SPI Interface

$8.01
  • Passive Matrix OLED
  • Diagonal Dimension: 0.96 Inch
  • Resolution: 128 x 64 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

0.96” Arduino OLED Displays, 64×128, Monochrome White, 4-Wire SPI Interface

$8.49
  • Passive Matrix OLED
  • Diagonal Dimension: 0.96 Inch
  • Resolution: 64 x 128 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

0.96” Arduino OLED Displays, 96×96, Monochrome White, 4-Wire SPI Interface

$8.78
  • Passive Matrix OLED
  • Diagonal Dimension: 0.96 Inch
  • Resolution: 96 x 96 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

0.96” OLED, 128×64, Monochrome, Parallel/SPI/IIC Interface

$4.53
  • Passive Matrix OLED
  • Diagonal Dimension: 0.96 Inch
  • Resolution: 128 x 64 pixels
  • Interface: Parallel, 3-/4-wire SPI, I²C Interface
  • Luminance: 120 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.09” Arduino OLED Displays, 128 x64, Monochrome White, 4-Wire SPI Interface

$9.12
  • Passive Matrix OLED
  • Diagonal Dimension: 1.09 Inch
  • Resolution: 128 x 64 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.27” OLED, 128×96, Color, Parallel/SPI Interface

$11.34
  • Passive Matrix OLED
  • Diagonal Dimension: 1.27 Inch
  • Resolution: 128 x 96 pixels
  • Interface: Parallel, 3-/4-wire SPI Interface
  • Luminance: 100 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.3” Arduino OLED Displays, 128 x 64, Monochrome Blue, 4-Wire SPI Interface

$9.97
  • Passive Matrix OLED
  • Diagonal Dimension: 1.3 Inch
  • Resolution: 128 x 64 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.3” Arduino OLED Displays, 128 x 64, Monochrome White, 4-Wire SPI Interface

$9.97
  • Passive Matrix OLED
  • Diagonal Dimension: 1.3 Inch
  • Resolution: 128 x 64 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.3” Arduino OLED Displays, 64 x 128, Monochrome White, 4-Wire SPI Interface

$10.43
  • Passive Matrix OLED
  • Diagonal Dimension: 1.3 Inch
  • Resolution: 64 x 128 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.45” OLED, 160×128, Color, Parallel/SPI/RGB Interface

$14.14
  • Passive Matrix OLED
  • Diagonal Dimension: 1.45 Inch
  • Resolution: 160 x 128 pixels
  • Interface: Parallel, 4-wire SPI, 6-bit RGB Interface
  • Luminance: 100 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.50” OLED, 128×128, Color, Parallel/SPI Interface

$12.76
  • Passive Matrix OLED
  • Diagonal Dimension: 1.50 Inch
  • Resolution: 128 x 128 pixels
  • Interface: Parallel, 3-/4-wire SPI Interface
  • Luminance: 90 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.54” Arduino OLED Displays, 128 x 64, Monochrome Blue, 4-Wire SPI Interface

$11.89
  • Passive Matrix OLED
  • Diagonal Dimension: 1.54 Inch
  • Resolution: 128 x 64 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

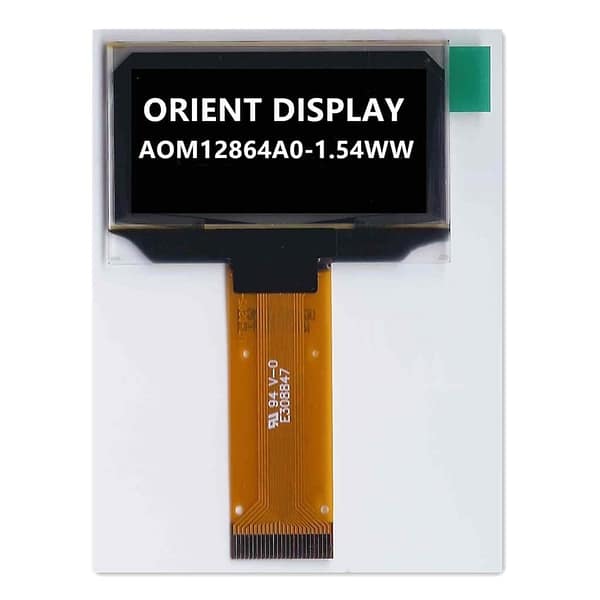

1.54” Arduino OLED Displays, 128 x 64, Monochrome White, 4-Wire SPI Interface

$11.89
  • Passive Matrix OLED
  • Diagonal Dimension: 1.54 Inch
  • Resolution: 128 x 64 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.54” Arduino OLED Displays, 128 x 64, Monochrome Yellow, 4-Wire SPI Interface

$11.89
  • Passive Matrix OLED
  • Diagonal Dimension: 1.54 Inch
  • Resolution: 128 x 64 pixels
  • Interface: 4-wire SPI / Compatible Arduino
  • Luminance: 60 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.54” OLED, 128×64, Monochrome, Parallel/SPI/I2C Interface

$14.06
  • Passive Matrix OLED
  • Diagonal Dimension: 1.54 Inch
  • Resolution: 128 x 64 pixels
  • Interface: 8-bit Parallel, 4-wire SPI, I2C Interface
  • Luminance: 120 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

1.69” OLED, 160×128, Color, Parallel/SPI/RGB Interface

$20.57
  • Passive Matrix OLED
  • Diagonal Dimension: 1.69 Inch
  • Resolution: 160 x 128 pixels
  • Interface: 8-/9-bit Parallel, 4-wire SPI, 6-bit RGB Interface
  • Luminance: 75 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

2.23” OLED, 128×32, Monochrome, Parallel/SPI/I2C Interface

$16.47
  • Passive Matrix OLED
  • Diagonal Dimension: 2.23 Inch
  • Resolution: 128 x 32 pixels
  • Interface: 8-bit Parallel, 4-wire SPI, I2C Interface
  • Luminance: 120 cd/m2
  • Viewing Direction: All
  • Touch Panel: None

3.12” OLED, 256×64, Monochrome, Parallel/SPI Interface

$21.44
Model / Series Name AOM25664A0-3.12WW
Diagonal Dimension (Inches) 3.12
Dots WxH 256 x 64
Module Size WxHxD max (mm) 88.00 x 47.80 x 2.00
Display Mode
