LCD GLASS PANEL FEATURES
PRODUCT IS BACKED BY ORIENT DISPLAY’S LOWEST PRICE GUARANTEE POLICY
Orient Display- offering LCD glass panel with top-notch products at attractive prices.
Orient Display is a company that specializes in manufacturing LCD glass panels, glass display screen, glass panel display, glass LED display, cover lens glass and other panels with glass. The company was founded in 1996 by specializing in fields of production, R&D, quality controls. Thanks for the management and employee’s continuous hardworking and enormous effort and shareholder continuous investment over years,Orient Display factory is now the world’s lead display glass panel manufacturer in flat panel industry and is listed as a public company in China stock market. Orient Display factory has 4 plants that can produce lcd glass panels. Factories have complete quality and environment management system, ISO9001, ISO/IATF16949, ISO14001, IECQ QC080000. LCD display glass panel is a traditional product, Orient Display is always working on the ways to reduce glass panel price and cost to meet the simple display market requirement.

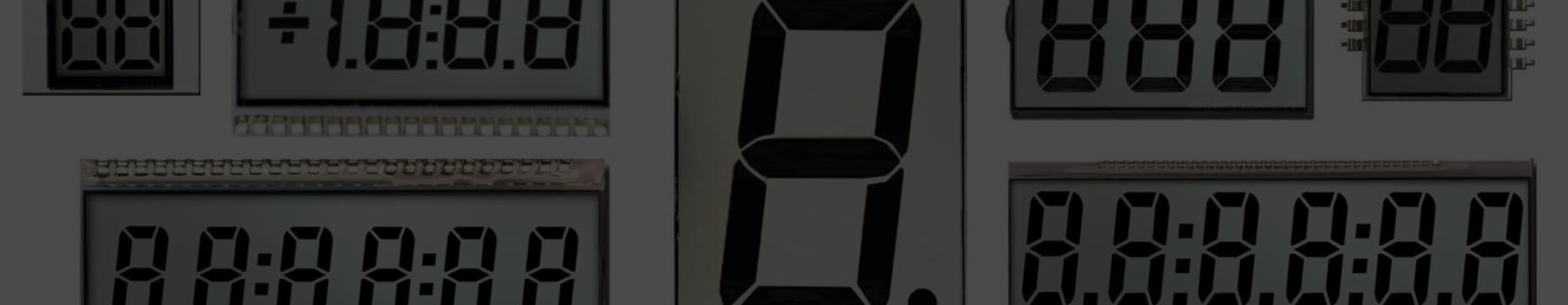

Standard LCD display panels
Orient Display standard LCD display panels are either TN (twisted nematic) or vertical alignment technology (VTN), positive and negative image.
Different options of polarizer in LCD glass panel
Orient Display LCD display panels include different options of polarizer in reflective (saving power), transmissive (better contrast) or transflective (sunlight readable and battery powered) types. Orient LCD glass panels include 1; 2; 2.1/2; 3; 3.1/2; 3.3/4; 4; 4.1/2; 5; 6; 8; and 24 digits. Orient LCD glass panels also include 7 , 14 or 16 segments to display digits and alphanumeric letters. The temperature ranges are from room temperature to wide temperature applications. Orient LCD glass panels can have metal pin or zebra connections. Some of them have different color backlight (blue, white, Yellow-green, pure green and amber) available.
We understand that the standard LCD display screens can’t meet the customer’s various requirements, Orient Display offers custom made LCD glass panel with low NRE (tooling cost), low MOQ, fast sample, and production lead time. Orient Display is proud to have all the display technologies related with LCD glass panel displays.
If you have any questions about Orient Display technologies and products, feel free to contact our engineers for details.
Check Also: monochrome TFT
OD-103R (1 Digit LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
OD-103T (1 Digit LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-202 (2-Digit LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-204 (2-Digit LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
OD-251 (2.5 Digit LCD Glass Panel)
- TN LCD Glass Panel
- 2.5 Digit
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-301 (LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-302 (3 Digit LCD Glass Panel)
- TN LCD Glass Panel
- 3 Digit
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-3516 (3.5 Digit LCD Glass Panel)
- TN LCD Glass Panel
- 3.5 Digit
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-357 (LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: 0°C to 50°C
- Storage Temp: -10°C to 60°C
- Reflective Polarizer
- ROHS Compliant
OD-358R (LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
OD-358T (LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-371 (LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
OD-372 (3 3/4 Digit LCD Glass Panel)
- TN LCD Glass Panel
- 3 3/4 Digit
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
OD-409 (4 Digit LCD Glass Panel)
- TN LCD Glass Panel
- 4 Digit
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-6010 (LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
OD-454 (LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -30°C to 80°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
OD-502 (LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -30°C to 80°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-609 (6 Digit LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 80°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-609R (6 Digit LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 80°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
OD-893 (8 Digit LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -30°C to 80°C
- Storage Temp: -40°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-894A (8 Digit LCD Glass Panel)
- TN LCD Glass Panel
- Positive Display
- 12 o'clock Viewing Direction
- Operating Temp: -20°C to 80°C
- Storage Temp: -40°C to 80°C
- Transflective Polarizer
- ROHS Compliant
