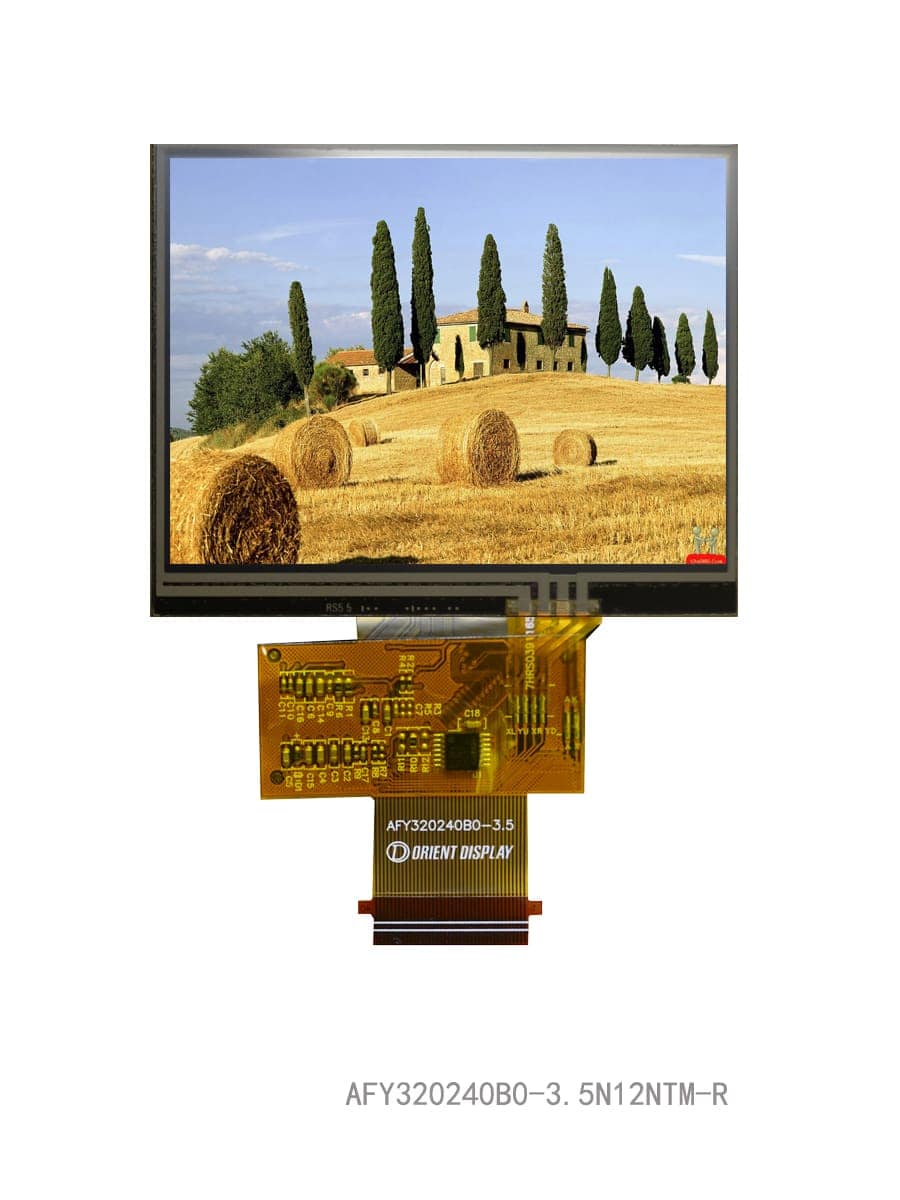

3.5″ TFT, 320×240, 440 Nits with Resistive Touch Panel
$24.95CONTACT FOR VOLUME PRICING
366 in stock
- Diagonal Dimension: 3.5 Inch
- Resolution: 320 x 240 pixels
- Interface: RGB
- Luminance: 440 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: Resistive (RTP)
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $24.01 |
| 50- | $23.07 |
Contact us for larger volume orders and any other enquiries.
Description
A simple 3.5″ Full Color / Medium Brightness TFT Module, Transmissive/ Normal White with 320 x (RGB) x 240 dots.
The highest quality product at the lowest price. Ships from the USA.
- 3.5″ TFT, 320 x (RGB) x 240
- Full Color / Medium Brightness TFT Module
- Transmissive / Normal White / Resistive Touch Panel (RTP)
- 12 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFY320240B0-3.5N12NTM-R
Controller Datasheet: HX8238-D
Optional Accessory: JAZZ-RGB-D1
| Model / Series Name | AFY320240A0-3.5N6NTM-R |
| Diagonal Dimension (inch) | 3.5 |
| Dots WxH | 320 x 240 |
| Module Size WxHxT max (mm) | 76.9 x 63.9 x 4.4 |
| Display Mode | 1670K TFT / Transmissive / Normal White |
| IC | HX8238-D |
| Interface Type | RGB |
| Logic Power Supply Voltage | 3.3V |
| Backlight | LED/White/Edge |
| Luminance | 440 cd/m2 |
| Touch Panel | Resistive |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
| Weight | 0.42 lbs |
|---|---|
| Dimensions | 63.90 × 76.90 × 4.4 mm |
| backlightcolor | |
| diagonal-size | |
| displaytype | |
| polarizertype | |
| resolution | |
| touchpanel | |
| viewingdirection |
