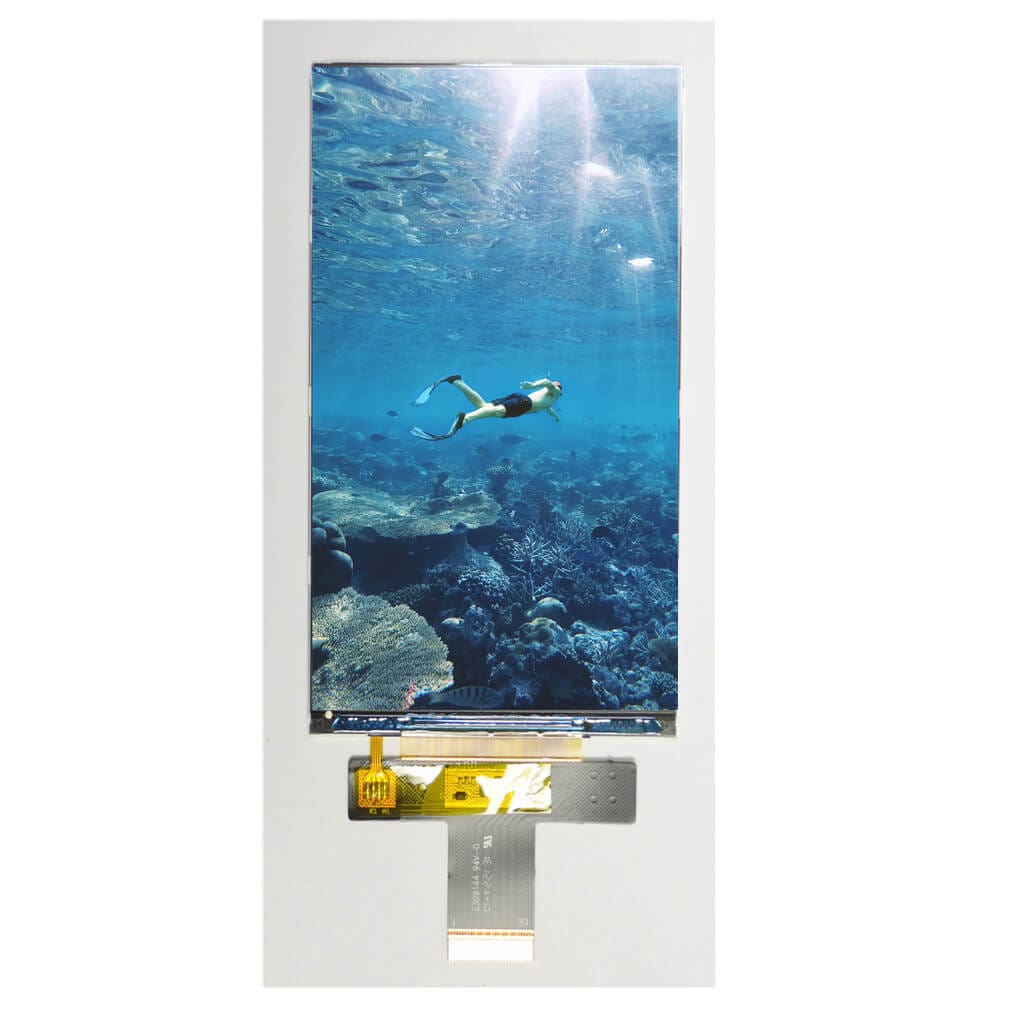

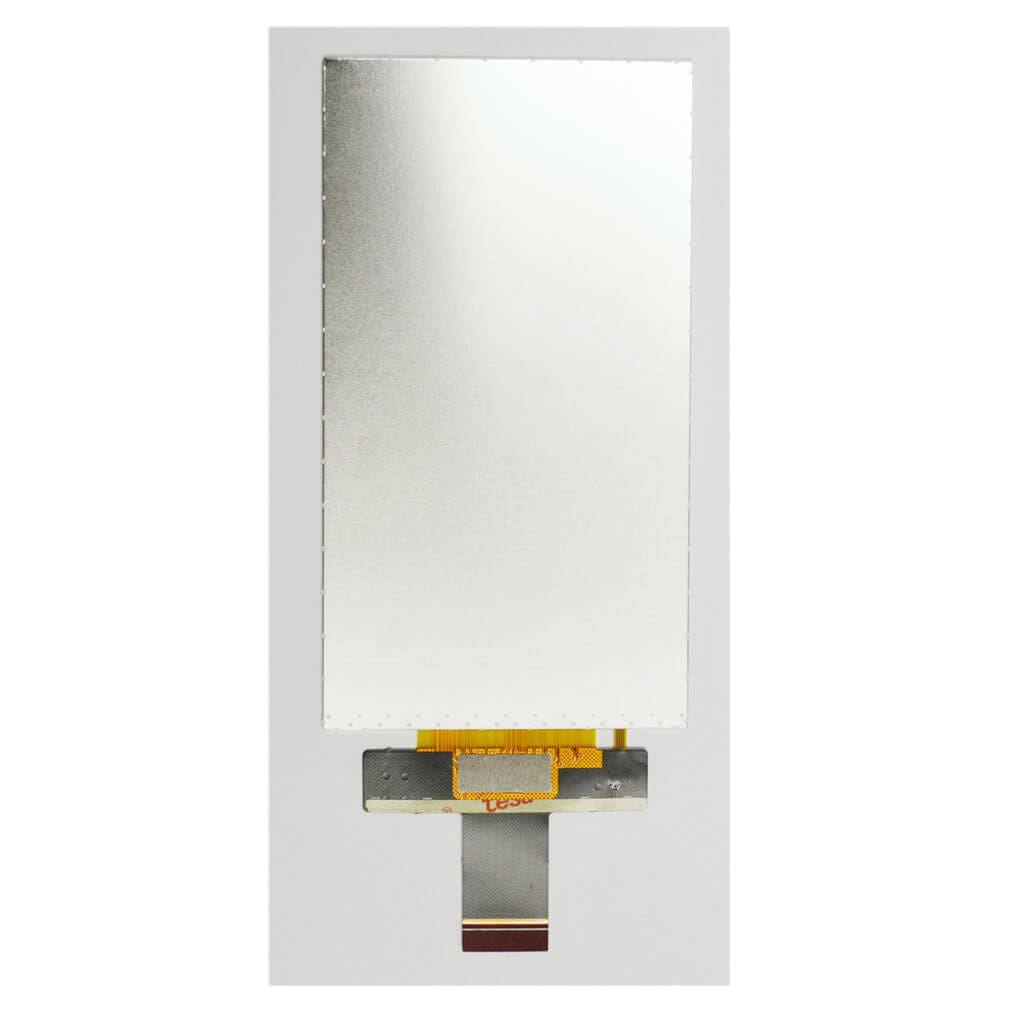

5.0″ IPS TFT, 720×1280, All Viewing Angle, Medium Brightness, MIPI Interface
$30.54CONTACT FOR VOLUME PRICING
19 in stock
- Diagonal Dimension: 5 Inch
- Resolution: 720 x 1280 pixels
- Interface: MIPI
- Luminance: 350 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
Description
A simple 5.0″ TFT Display 720×1280 Full Color / Medium Brightness TFT Module, Transmissive/ Normal Black / IPS All Viewing Angle.
5.0 Inch IPS TFT Display
The highest quality product at the lowest price. Ships from the USA.
- 5.0″ TFT, 720 x (RGB) x 1280
- Full Color / Medium Brightness TFT Module
- ALL Viewing Direction
- Transmissive / Normal Black
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFC7201280A0-5.0INTM-I
Controller Datasheet: ST7703I
Optional Accessory: TBA
| Model / Series Name | AFC7201280A0-5.0INTM-I |
| Diagonal Dimension (inch) | 5.0 |
| Dots WxH | 720 x 1280 |
| Module Size WxHxD max (mm) | 65.3 * 118.782 * 1.64mm |
| Display Mode | IPS TFT / Transmissive / Normal Black |
| IC | ST7703I |
| Interface Type | MIPI |
| Logic Power Supply Voltage | 3.3V |
| Backlight | White LED |
| Luminance | 350 cd/m2 |
| Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
Reviews (0)
Shipping & Delivery
Related products
4.3″ TFT, 480×272, 420 Nits with Capacitive Touch Panel
Medium Brightness TFT Panels, TFT with Touch Panels, Color TFT, Capacitive Touch Panels Displays, Touch Panels
- Diagonal Dimension: 4.3 Inch
- Resolution: 480 x 272 pixels
- Interface: RGB
- Luminance: 420 cd/m2
- Viewing Direction: 12 o'clock
- Touch Panel: Capacitive (CTP)

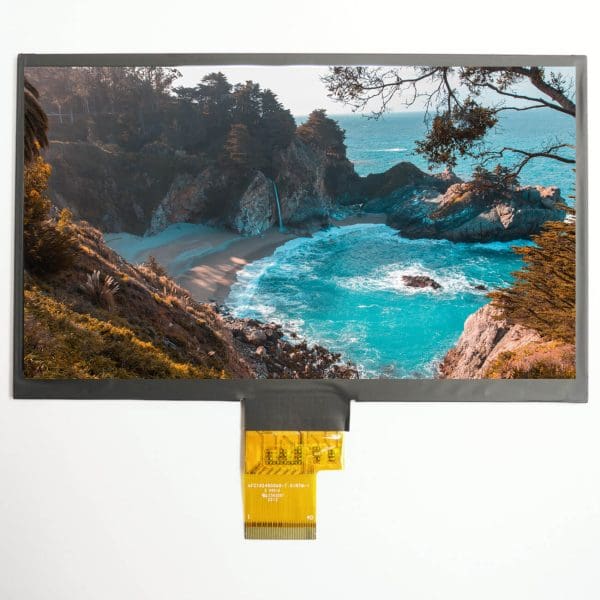

7.0″ IPS TFT, 1024×600, All Viewing Angle, Medium Brightness, MIPI Interface
