4.3" TFT, 480x272, 560 Nits
$20.92 $10.46
7.0″ TFT, 800×480, 560 Nits
$38.94 $19.47CONTACT FOR VOLUME PRICING
170 in stock
- Final sale: Non-refundable.
- Product is EOL, Do not suggest for new design.
- Diagonal Dimension: 7 Inch
- Resolution: 800 x 480 pixels
- Interface: RGB 24 BITS
- Luminance: 560 cd/m2
- Viewing Direction: 6 o’clock
- Touch Panel: None
SKU: AFY800480A0-7.0N6NTM
Categories: Medium Brightness TFT Panels, Color TFT, On sale
Description
(Final Sale)

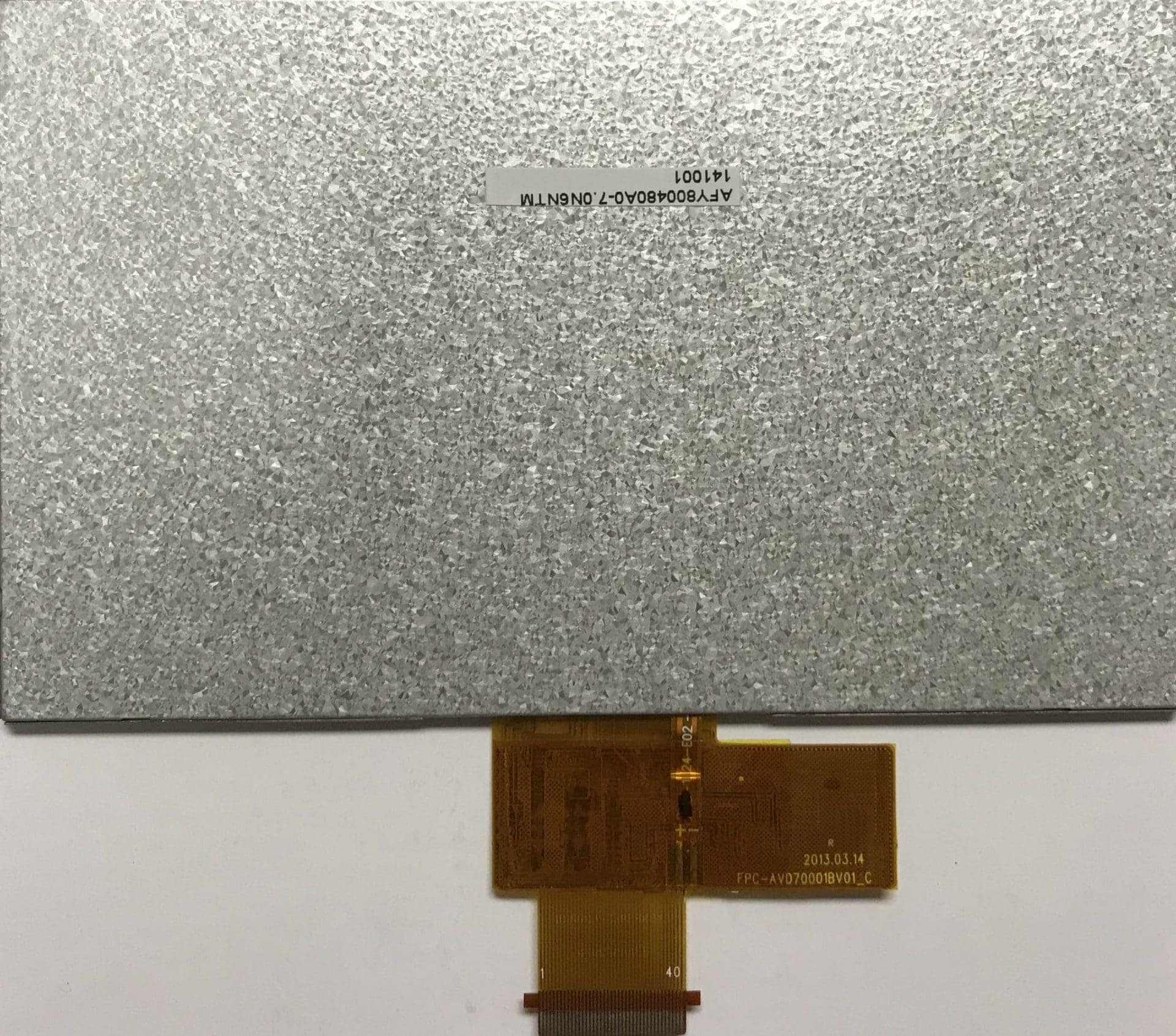

A simple 7.0″ Full Color / Medium Brightness TFT Module, Transmissive/ Normal White with 800 x (RGB) x 480 dots.
The highest quality product at the lowest price. Ships from the USA.
7.0 Inch TFT Display with 560 Nits
- 7.0″ TFT, 800 x (RGB) x 480
- Full Color / Medium Brightness TFT Module
- Transmissive / Normal White
- Six o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFY800480A0-7.0N6NTM
Optional Accessory: JAZZ-RGB-D1
Model / Series Name | AFY800480A0-7.0N6NTM |
Diagonal Dimension (Inches) | 7.0 |
Dots WxH | 800 x 480 |
Module Size WxHxD max (mm) | 164.9 x 100 x 3.5 |
Display Mode | 1670K TFT / Transmissive / Normal White |
IC | ILI5960 / ILI6128B |
Interface Type | RGB 24 BITS |
Logic Power Supply Voltage | 3.3 |
Backlight | 18 Chip White LED, lf = 60mA |
Luminance | 560 cd/m2 |
Touch Panel | None |
Also check out the LCD Displays available in our assortment.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
