2.4" TFT, 240x320, 370 Nits with Resistive Touch Panel
HomeTFT DisplaysTFT Display PanelsMedium Brightness TFT Panels 2.4″ TFT, 240×320, 370 Nits with Resistive Touch Panel
Previous product
4.3" TFT, 480x272, 250 Nits with Resistive Touch Panel
4.3" TFT, 480x272, 250 Nits with Resistive Touch Panel $25.34 $12.67
Back to products
Next product
4.3" TFT, 480x272, 560 Nits
4.3" TFT, 480x272, 560 Nits $20.92 $10.46

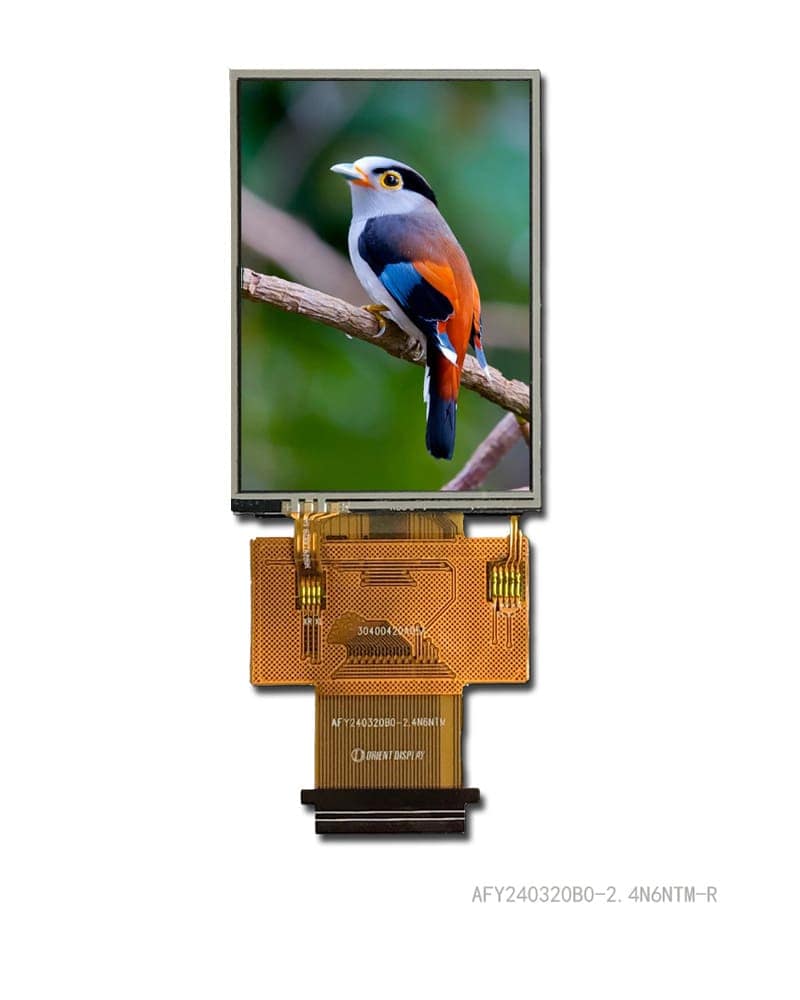

2.4″ TFT, 240×320, 370 Nits with Resistive Touch Panel

$13.08CONTACT FOR VOLUME PRICING

  • Diagonal Dimension: 2.4 Inch
  • Resolution: 240 x 320 pixels
  • Interface: MCU/RGB SPI
  • Luminance: 370 cd/m2
  • Viewing Direction: 6 o’clock
  • Touch Panel: Resistive (RTP)

Pricing table

QuantityUnit Price
25-49$11.51
50-99$9.93
100-149$9.12
150-199$8.45
200-$7.77

Contact us for larger volume orders and any other enquiries.

79 in stock

Compare
Add to wishlist
SKU: AFY240320B0-2.4N6NTM-R Categories: Medium Brightness TFT Panels, TFT with Touch Panels, Color TFT, Resistive Touch Panels Displays, Touch Panels
Share
Facebook Email linkedin
  • Description
  • Additional information
  • Reviews (0)
  • Shipping & Delivery

A simple 2.4″ Full Color / Medium Brightness TFT Module, Transmissive/ Medium White with 240 x (RGB) x 320 dots, resistive touch panel

The highest quality product at the lowest price. Ships from the USA.
  • 2.4″ TFT, 240 x (RGB) x 320
  • Full Color / Medium Brightness TFT Module
  • Transmissive / Medium White / Resistive Touch Panel (RTP)
  • Six o’clock Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant

Download Product References Below
Product Datasheet: AFY240320B0-2.4N6NTM-R
Controller Datasheet: ILI9341V
Optional Accessory: JAZZ-CPU-D1
Model / Series Name AFY240320B0-2.4N6NTM-R
Diagonal Dimension (inch) 2.4
Dots WxH 240 x 320
Module Size WxHxT max (mm) 42.72 x 60.26 x 3.71
Display Mode 262K TFT / Transmissive / Normal White
IC ILI9341V (see IC Controller Example Codes here)
Interface Type MCU/RGB SPI
Logic Power Supply Voltage 2.8V
Backlight 4 Chip White LED, lf = 60 mA
Luminance 370 cd/m2
Touch Panel Resistive



These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Weight 0.18 lbs
Dimensions 60.26 × 42.70 × 3.71 mm
backlightcolor

White

diagonal-size

2.4

displaytype

TFT – TN

polarizertype

Transmissive

resolution

240×320

touchpanel

Resistive Touch Panel

viewingdirection

6 o'clock
