3.5” TN TFT display with SPI interface, 320×240, Medium Brightness
$33.40CONTACT FOR VOLUME PRICING
30 in stock

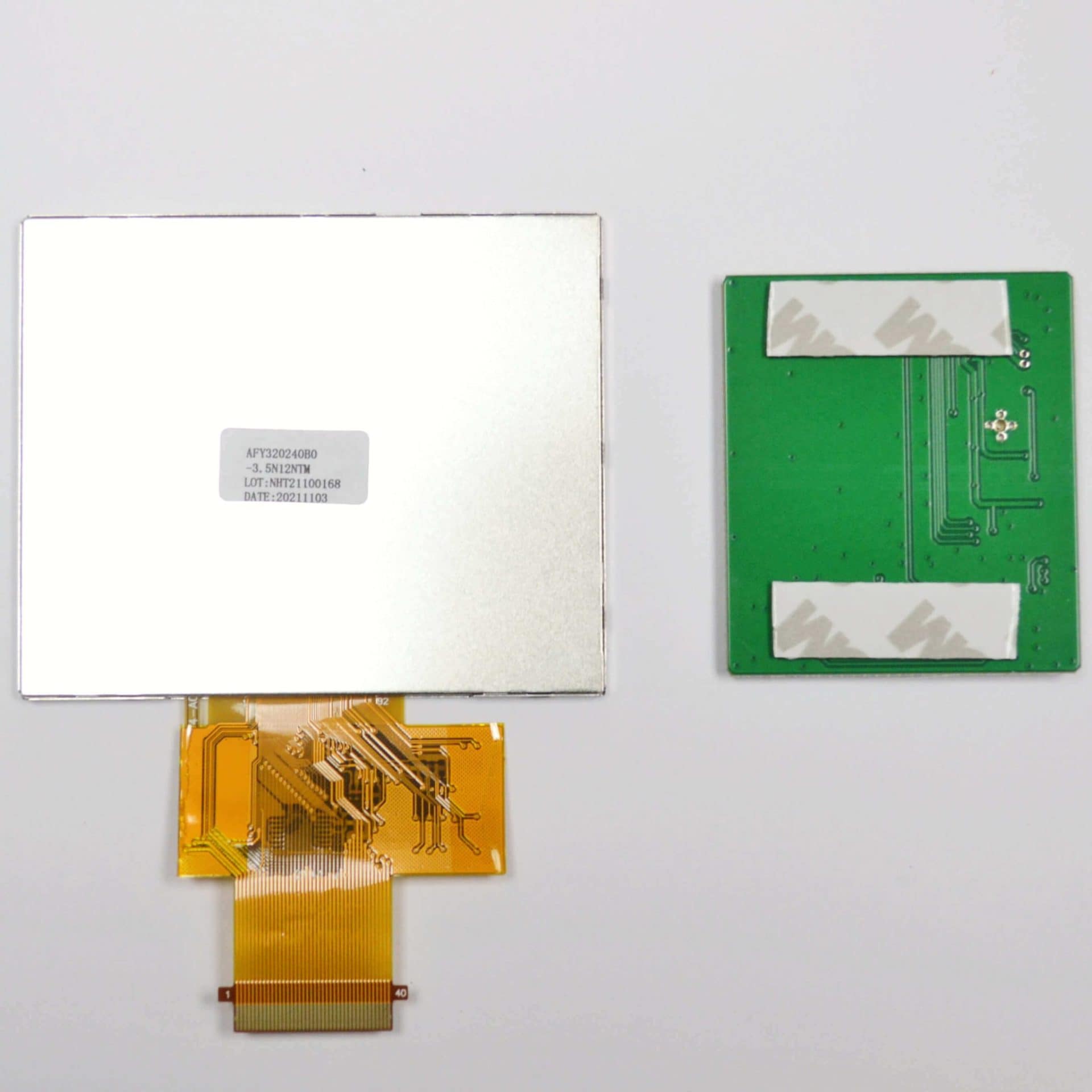

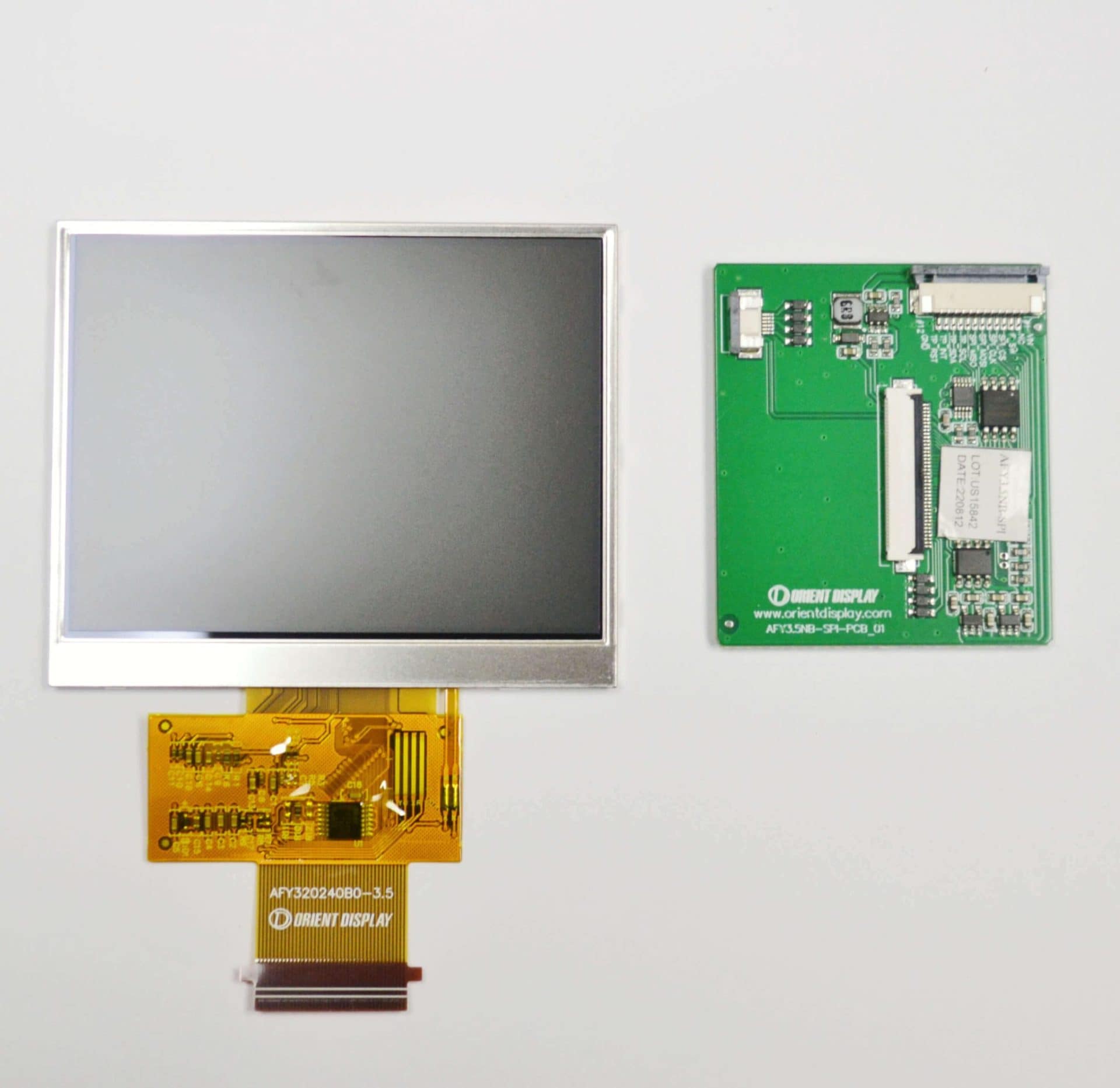

- Includes 1pc AFY320240B0-3.5N12NTM and 1pc AFY3.5NB-SPI-PCB01
- Diagonal Dimension: 3.5 Inch
- Resolution: 320 x 240 pixels
- Interface: SPI
- Luminance: 495 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Description
3.5″ TN TFT Display 320×240 Full Color / Medium Brightness TFT Module, Transmissive, with SPI interface.
3.5 Inch TN TFT Display with SPI interface
The highest quality product at the lowest price. Ships from the USA.
- 3.5″ TFT, 320 x 240
- Full Color / Medium Brightness TFT Module
- 12 o’clock Viewing Direction
- Transmissive
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
User Manual: P SERIES (SPI INTERFACE) USER MANUAL
TFT Datasheet: AFY320240B0-3.5N12NTM
Controller Datasheet: NP4185
| Model / Series Name | AFY320240B0-3.5N12NTM-SPI |
| Diagonal Dimension (inch) | 3.5 |
| Dots WxH | 320 x 240 |
| Module Size WxHxD max (mm) | 76.9 * 63.9 * 2.5mm |
| Display Mode | TN TFT / Transmissive / Normal White |
| IC | NP4185 |
| Interface Type | SPI interface |
| Logic Power Supply Voltage | 3.3V |
| Backlight | White LED |
| Luminance | 495 cd/m2 |
| Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
| Weight | 0.4 lbs |
|---|---|
| Dimensions | 65 × 80 × 3 mm |
| backlightcolor | |
| diagonal-size | |
| displaytype | |
| polarizertype | |
| touchpanel | |
| viewingdirection |
