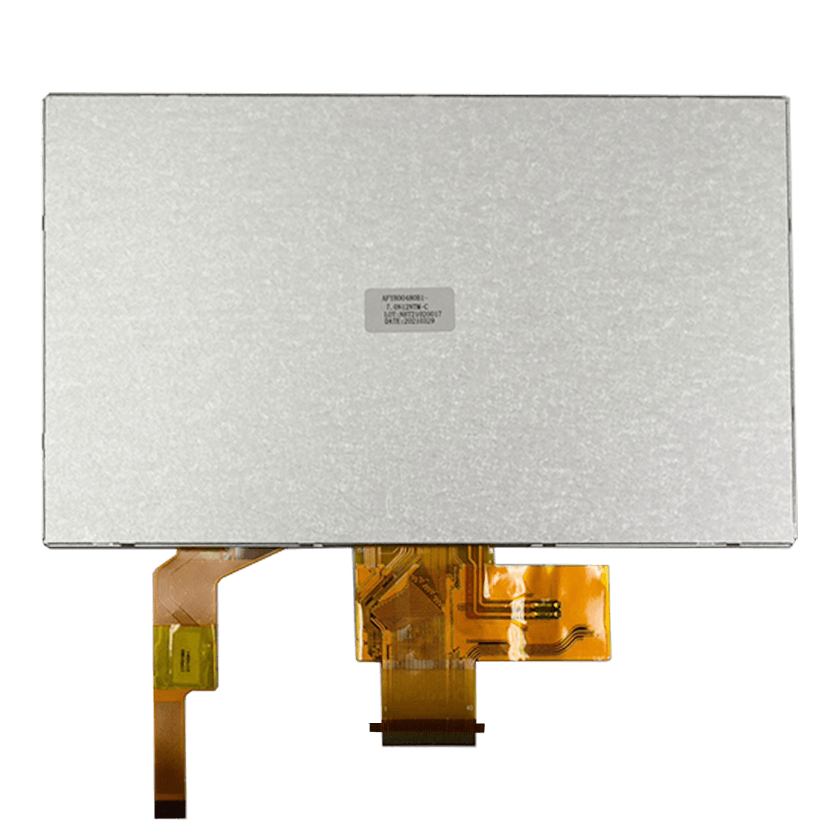

7.0″ TFT, 800×480, 420 Nits with Capacitive Touch Panel, RGB Interface
$59.33CONTACT FOR VOLUME PRICING
Out of stock
- Diagonal Dimension: 7 Inch
- Resolution: 800 x 480 pixels
- Interface: RGB
- Luminance: 420 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: Capacitive (CTP)
Pricing table
Quantity | Unit Price |
---|---|
25-49 | $56.56 |
50- | $53.78 |
Contact us for larger volume orders and any other enquiries.
Email when stock available
SKU: AFY800480B1-7.0N12NTM-C
Categories: Medium Brightness TFT Panels, TFT with Touch Panels, Color TFT, Capacitive Touch Panels Displays, Touch Panels
Description
A simple 7.0″ Full Color TFT / Medium Brightness Module, Transmissive/ Normal White with Capacitive Touch Panel.
The highest quality product at the lowest price. Ships from the USA.
- 7.0″ TFT, 800 x (RGB) x 480
- Full Color / Medium Brightness TFT Module
- 12 o’clock Viewing Direction
- Transmissive / Normal White/ Capacitive Touch Panel (CTP)
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFY800480B1-7.0N12NTM-C
Optional Accessory: JAZZ-RGB-D3
Model / Series Name | AFY800480B1-7.0N12NTM-C |
Diagonal Dimension (inch) | 7.0 |
Dots WxH | 800 x 480 |
Module Size WxHxD max (mm) | 164.9 x 100 x 5.40 |
Display Mode | 1670K TFT / Transmissive / Normal White |
IC | EK9716B+EK73002AB2+GT911 (CTP) |
Interface Type | RGB |
Logic Power Supply Voltage | 3.3 V |
Backlight | LED/White/Edge |
Luminance | 420 cd/m2 |
Touch Panel | Capacitive |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at
info@orientdisplay.com.
info@orientdisplay.com.
Additional information
Weight | 0.82 lbs |
---|---|
Dimensions | 100.00 × 164.90 × 5.40 mm |
backlightcolor | |
diagonal-size | |
displaytype | |
polarizertype | |
resolution | |
touchpanel | |
viewingdirection |
