2.8″ TFT, 240×320, 460 Nits
$17.25CONTACT FOR VOLUME PRICING
88 in stock
- Diagonal Dimension: 2.8 Inch
- Resolution: 240 x 320 pixels
- Interface: MCU/RGB SPI
- Luminance: 460 cd/m2
- Viewing Direction: 6 o’clock
- Touch Panel: None
Pricing table
Quantity | Unit Price |
---|---|
25-49 | $15.78 |
50- | $14.31 |
Contact us for larger volume orders and any other enquiries.
SKU: AFY240320B0-2.8N6NTM
Categories: Medium Brightness TFT Panels, Color TFT
Description
A simple 2.8″ Full Color / Medium Brightness TFT Module, Transmissive/ Medium White with 240 x (RGB) x 320 dots.
2.8″ TFT, 240×320, 460 Nits
The highest quality product at the lowest price. Ships from the USA.
- 2.8″ TFT, 240 x (RGB) x 320
- Full Color / Medium Brightness TFT Module
- Transmissive / Medium White
- Six o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFY240320B0-2.8N6NTM
Controller Datasheet: ILI9341V
Optional Accessory: JAZZ-CPU-D1
Model / Series Name | AFY240320B0-2.8N6NTM |
Diagonal Dimension (inch) | 2.8 |
Dots WxH | 240 x 320 |
Module Size WxHxT max (mm) | 50 x 69.2 x 2.45 |
Display Mode | 262K TFT / Transmissive / Normal White |
IC | ILI9341V (see IC Controller Example Codes here) |
Interface Type | MCU/RGB SPI |
Logic Power Supply Voltage | 2.8V |
Backlight | 4 Chip White LED, lf = 60 mA |
Luminance | 460 cd/m2 |
Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
Reviews (0)
Be the first to review “2.8″ TFT, 240×320, 460 Nits” Cancel reply
Shipping & Delivery
Related products
3.5″ TN display, 320×480, 360 Nits, SPI+RGB Interface
$16.33
- Medium Brightness / TN display
- Diagonal Dimension: 3.5 Inch
- Resolution: 320 x 480 pixels
- Interface: SPI 18bit RGB
- Luminance: 360 cd/m2
- Viewing Direction: 12 o'clock
- Touch Panel: None
3.5” IPS TFT, 320×480, SPI+18BIT RGB Interface, 350nits
$16.84
- Medium Brightness / IPS
- Diagonal Dimension: 3.5 Inch
- Resolution: 320 x 480 pixels
- Interface: SPI+18BIT RGB
- Luminance: 350 cd/m2
- Viewing Direction: ALL
- Touch Panel: None

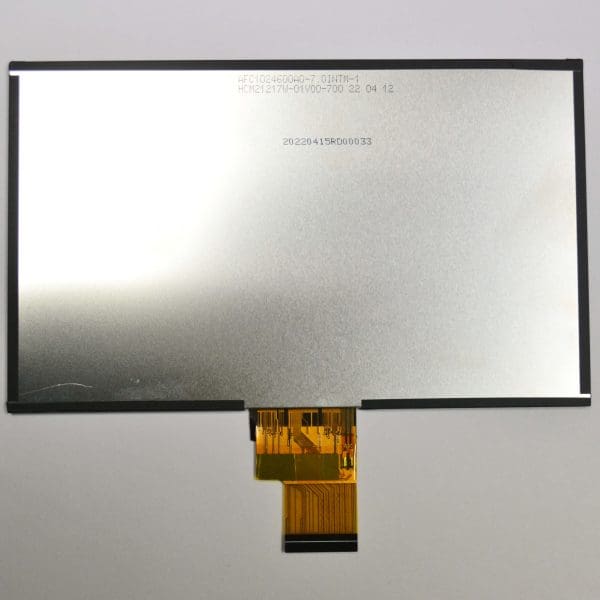

7.0″ IPS TFT, 1024×600, All Viewing Angle, Medium Brightness, MIPI Interface
