5.0” TN TFT display with SPI interface, 800×480, Medium Brightness
$40.86CONTACT FOR VOLUME PRICING
26 in stock

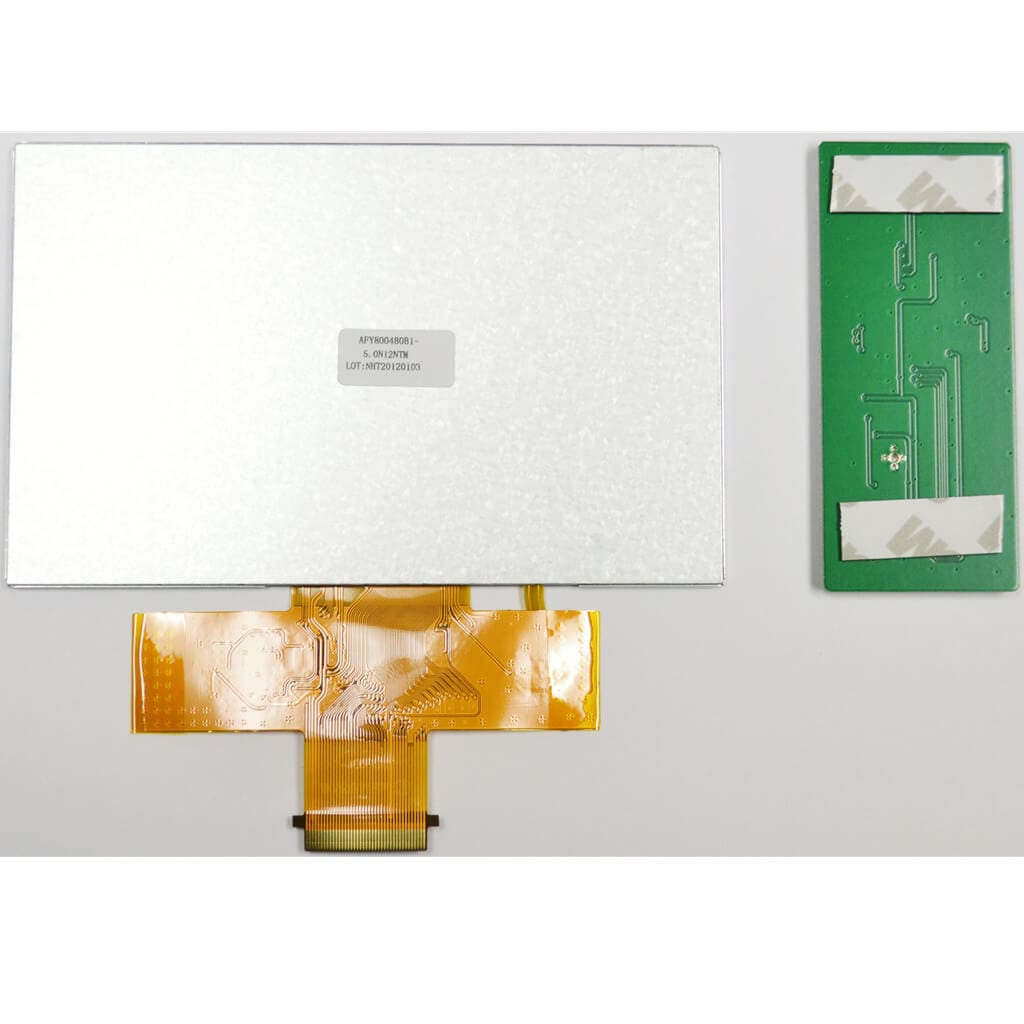

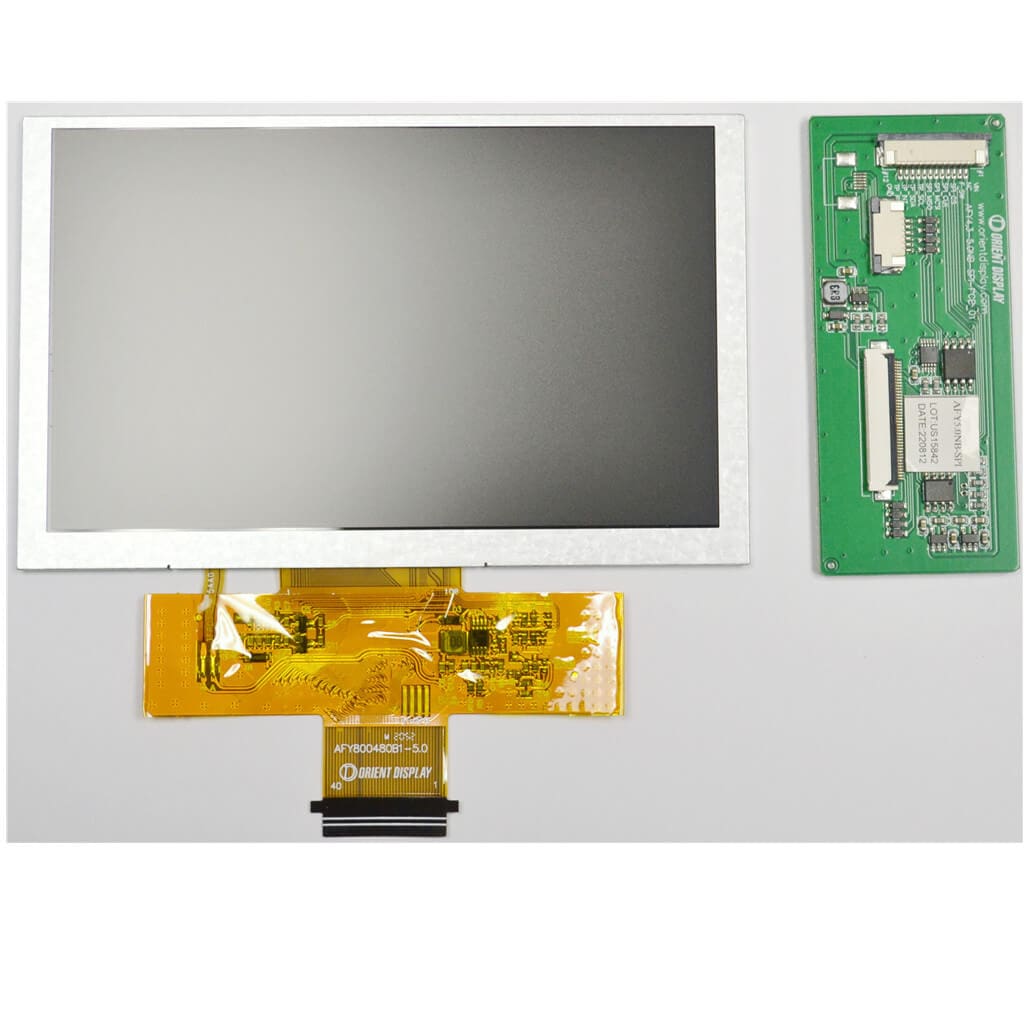

- Includes 1pc AFY800480B1-5.0N12NTM and 1pc AFY5.0NB-SPI-PCB01
- Diagonal Dimension: 5.0 Inch
- Resolution: 800 x 480 pixels
- Interface: SPI
- Luminance: 427 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Description
5.0″ TN TFT Display 800×480 Full Color / Medium Brightness TFT Module, Transmissive, with SPI interface.
5.0 Inch TN TFT Display with SPI interface
The highest quality product at the lowest price. Ships from the USA.
- 5.0″ TFT, 800 x 480
- Full Color / Medium Brightness TFT Module
- 12 o’clock Viewing Direction
- Transmissive
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
User Manual: P SERIES (SPI INTERFACE) USER MANUAL
Sample Code: bin2flash_22.1.18-5.0 and 7.0[800×480].zip
TFT Datasheet: AFY800480B1-5.0N12NTM
Controller Datasheet: NP4185
| Model / Series Name | AFY800480B1-5.0N12NTM-SPI |
| Diagonal Dimension (inch) | 5.0 |
| Dots WxH | 800 x 480 |
| Module Size WxHxD max (mm) | 120.7 * 75.8 * 5.1mm |
| Display Mode | TN TFT / Transmissive / Normal White |
| IC | NP4185 |
| Interface Type | SPI interface |
| Logic Power Supply Voltage | 3.3V |
| Backlight | White LED |
| Luminance | 427 cd/m2 |
| Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 75 × 120 × 3 mm |
| backlightcolor | |
| diagonal-size | |
| displaytype | |
| polarizertype | |
| touchpanel | |
| viewingdirection | |
| interface | SPI |
