4.3” TN TFT display with SPI interface, 480×272, Medium Brightness
$36.89CONTACT FOR VOLUME PRICING
30 in stock

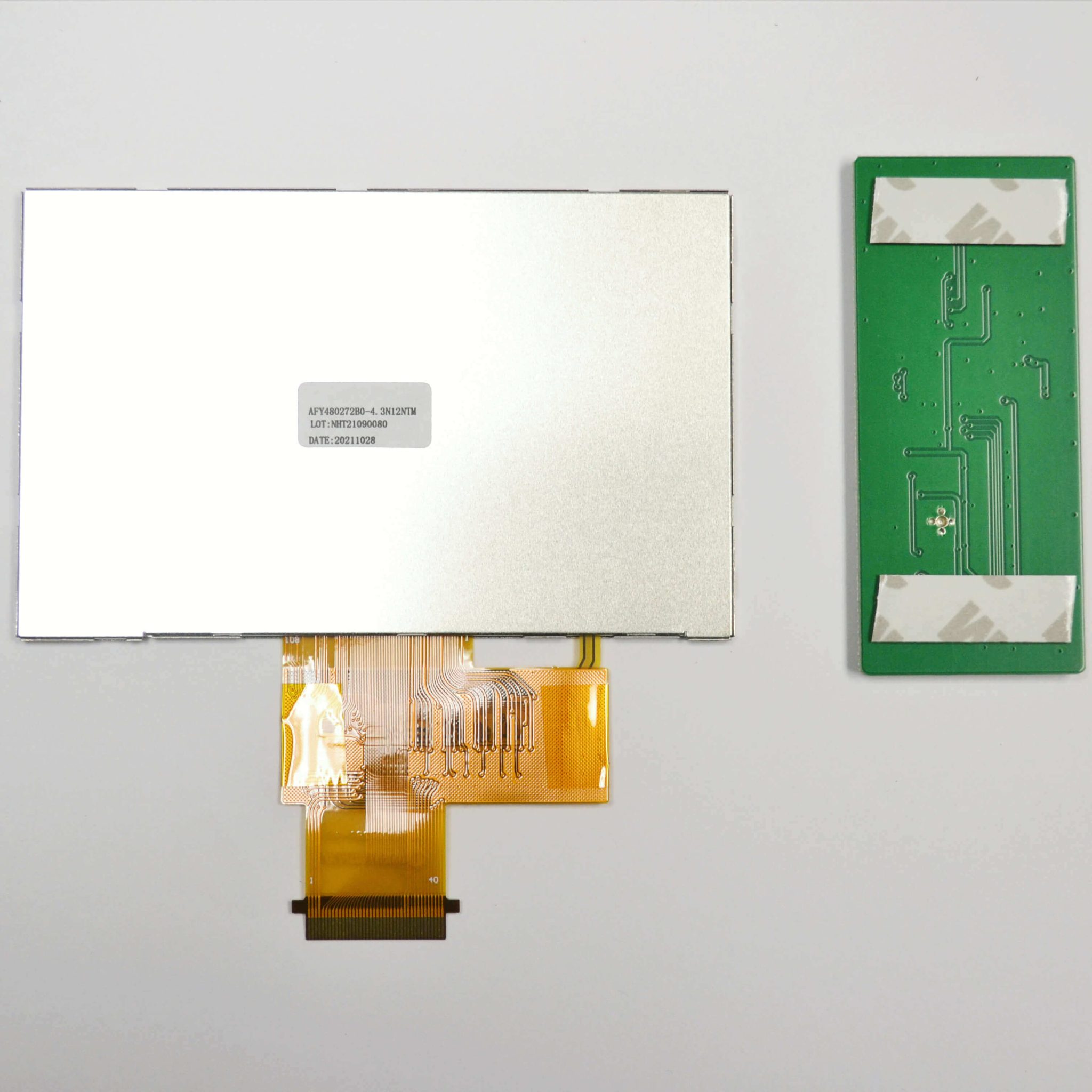

- Includes 1pc AFY480272B0-4.3N12NTM and 1pc AFY4.3NB-SPI-PCB01
- Diagonal Dimension: 4.3 Inch
- Resolution: 480 x 272 pixels
- Interface: SPI
- Luminance: 472 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
SKU: AFY480272B0-4.3N12NTM-SPI
Categories: Medium Brightness TFT Panels, TFT Displays Modules, Embedded LCD Display Modules, Color TFT
Description
4.3″ TN TFT Display 480×272 Full Color / Medium Brightness TFT Module, Transmissive, with SPI interface.
4.3 Inch TN TFT Display with SPI interface
The highest quality product at the lowest price. Ships from the USA.
- 4.3″ TFT, 480 x 272
- Full Color / Medium Brightness TFT Module
- 12 o’clock Viewing Direction
- Transmissive
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
User Manual: P SERIES (SPI INTERFACE) USER MANUAL
TFT Datasheet: AFY480272B0-4.3N12NTM
Controller Datasheet: NP4185
Model / Series Name | AFY480272B0-4.3N12NTM-SPI |
Diagonal Dimension (inch) | 4.3 |
Dots WxH | 480 x 272 |
Module Size WxHxD max (mm) | 105.5 * 67.2 * 5.6mm |
Display Mode | TN TFT / Transmissive / Normal White |
IC | NP4185 |
Interface Type | SPI interface |
Logic Power Supply Voltage | 3.3V |
Backlight | White LED |
Luminance | 472 cd/m2 |
Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
Weight | 0.4 lbs |
---|---|
Dimensions | 65 × 80 × 3 mm |
backlightcolor | |
diagonal-size | |
displaytype | |
polarizertype | |
touchpanel | |
viewingdirection |
