8.0″ IPS TFT, 800×1280, All Viewing Angle, Medium Brightness, MIPI Interface
$51.43CONTACT FOR VOLUME PRICING
19 in stock
- Diagonal Dimension: 8.0 Inch
- Resolution: 800 x 1280 pixels
- Interface: MIPI
- Luminance: 300 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
Description

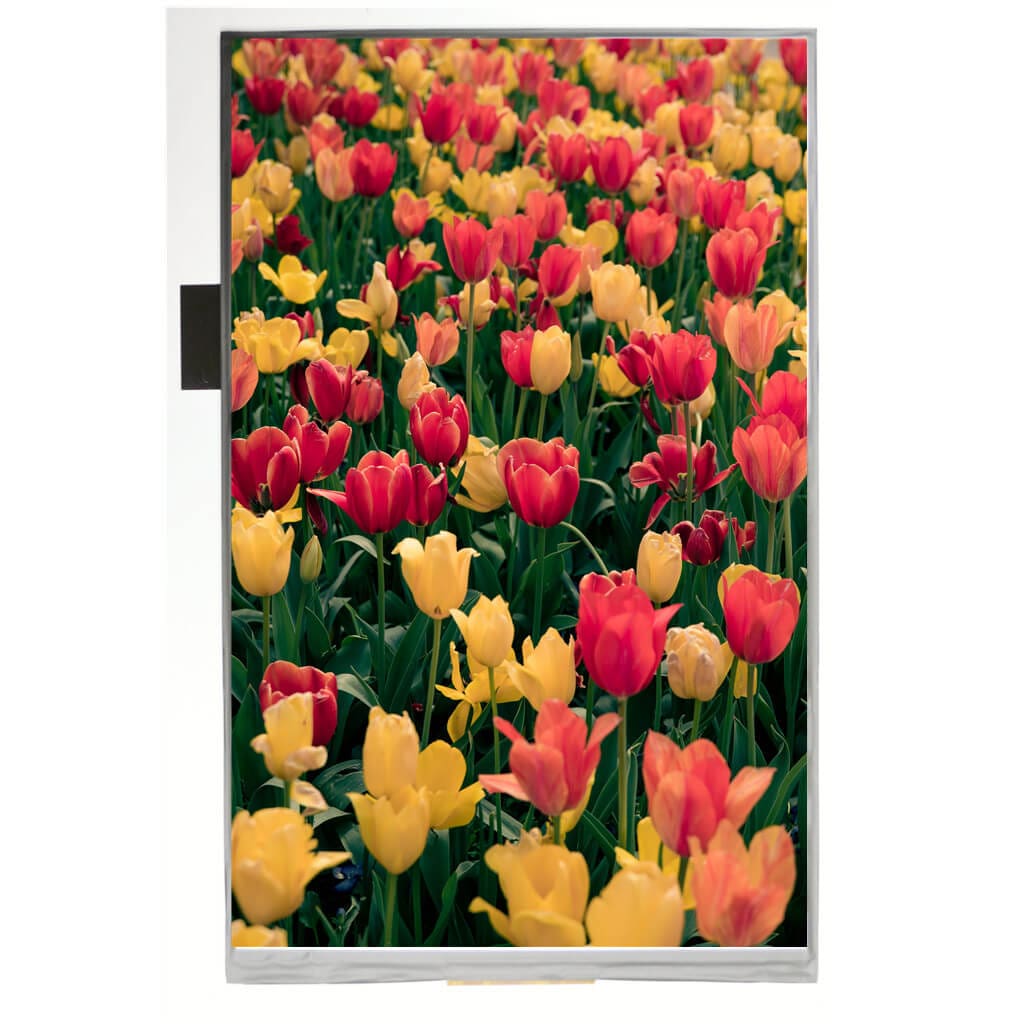

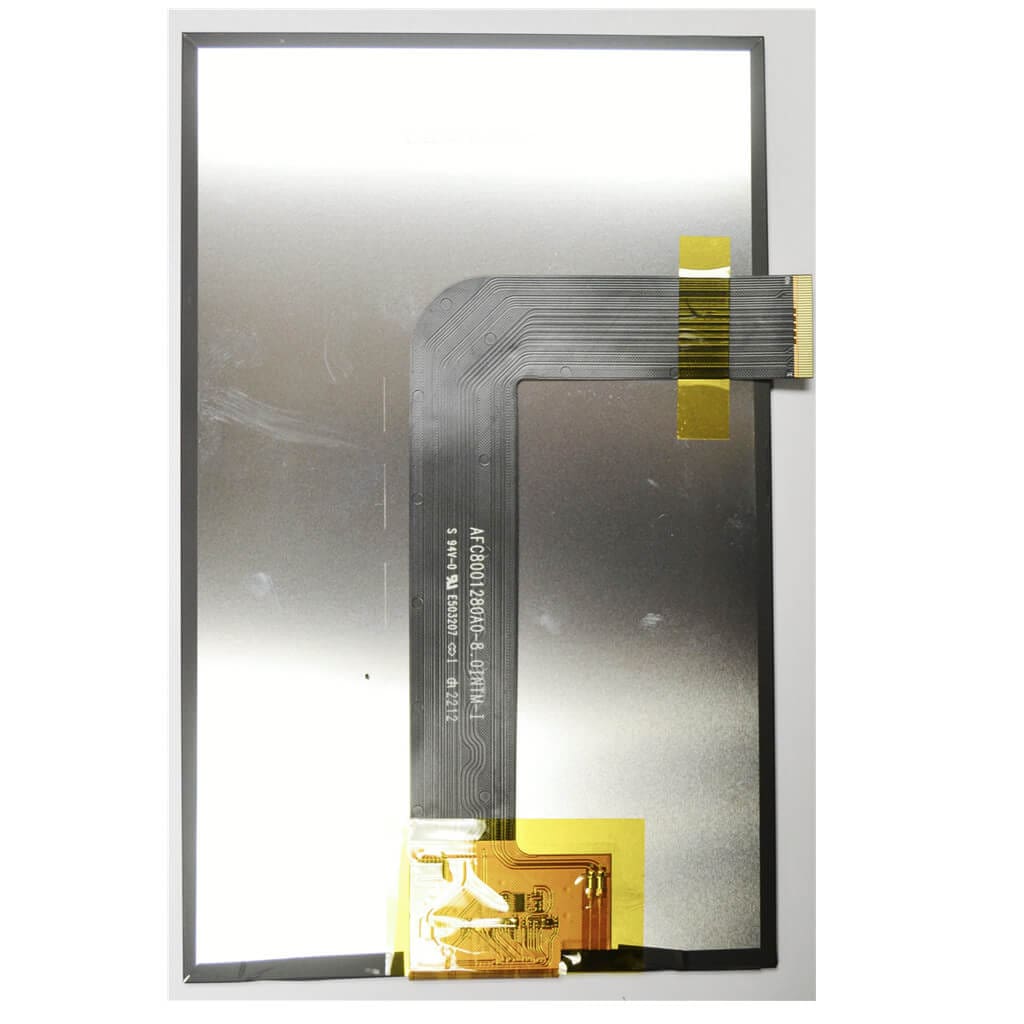

8.0 Inch IPS TFT Display
A simple 8.0″ IPS TFT Display 800×1280 Full Color / Medium Brightness TFT Module, Transmissive/ Normal Black / IPS All Viewing Angle.
The highest quality product at the lowest price. Our IPS TFT 800×1280 display ships from the USA.
- 8.0″ IPS TFT, 800 x (RGB) x 1280
- Full Color / Medium Brightness TFT Module
- ALL Viewing Direction
- Transmissive / Normal Black
- Operating Temp: -10°C to 50°C
- Storage Temp: -20°C to 60°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFC8001280A0-8.0INTM-I
Controller Datasheet: ILI9881C
Optional Accessory: TBA
| Model / Series Name | AFC8001280A0-8.0INTM-I |
| Diagonal Dimension (inch) | 8.0 |
| Dots WxH | 800 x 1280 |
| Module Size WxHxD max (mm) | 184.00 * 114.5 * 2.57mm |
| Display Mode | IPS TFT / Transmissive / Normal Black |
| IC | ILI9881C |
| Interface Type | MIPI |
| Logic Power Supply Voltage | 3.3V |
| Backlight | White LED |
| Luminance | 300 cd/m2 |
| Touch Panel | None |
These are just few of our famous IPS TFT 800×1280 modules; we still have a lot of TFT products to offer.
Check Also: Sunlight Readable IPS 1024×600
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
