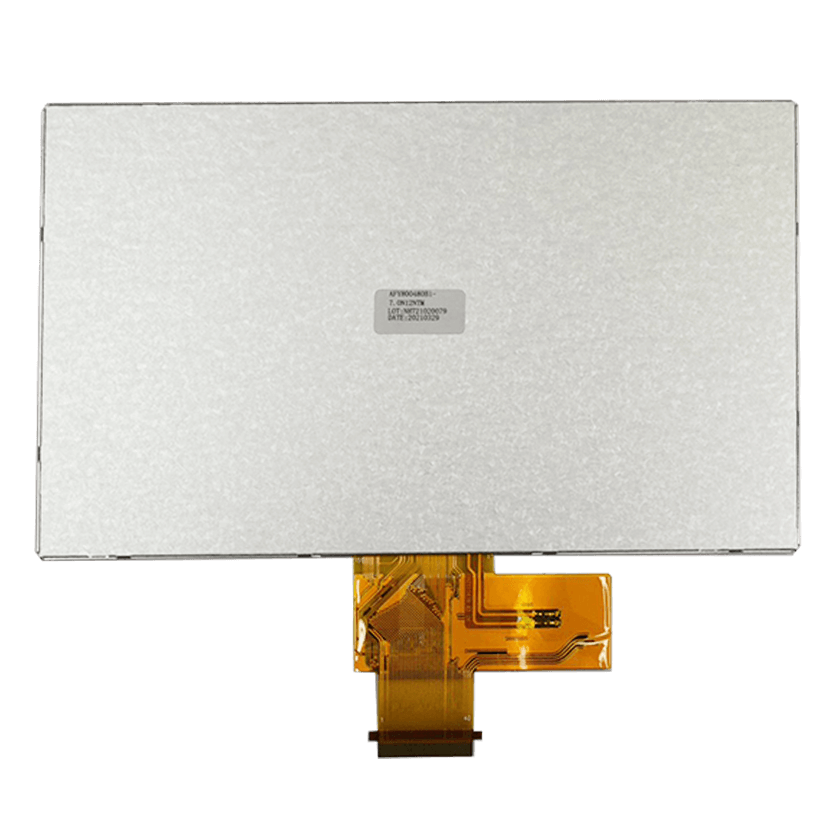

7.0″ TFT, TN Mode, 800×480, 520 Nits, RGB Interface
$44.45CONTACT FOR VOLUME PRICING
188 in stock
- Diagonal Dimension: 7 Inch
- Resolution: 800 x 480 pixels
- Interface: MCU 18BITS
- Luminance: 520 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Pricing table
Quantity | Unit Price |
---|---|
25-49 | $42.39 |
50- | $40.33 |
Contact us for larger volume orders and any other enquiries.
SKU: AFY800480B1-7.0N12NTM
Categories: Medium Brightness TFT Panels, Color TFT
Description
A simple 7.0″ Full Color / Medium Brightness TFT Module, Transmissive / Normal White with 800 x (RGB) x 480 dots.
800×480, 520 Nits 7.0″ TFT, TN Mode
The highest quality product at the lowest price. Ships from the USA.
- 7.0″ TFT, 800 x (RGB) x 480
- Full Color / Medium Brightness TFT Module
- 12 o’clock Viewing Direction
- Transmissive / Normal White
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFY800480B1-7.0N12NTM
Optional Accessory: JAZZ-RGB-D1
Model / Series Name | AFY800480B1-7.0N12NTM |
Diagonal Dimension (inch) | 7.0 |
Dots WxH | 800 x 480 |
Module Size WxHxD max (mm) | 164.9 x 100 x 3.5 |
Display Mode | 1670K TFT / Transmissive / Normal White |
IC | EK9716B+EK73002AB2 |
Interface Type | RGB |
Logic Power Supply Voltage | 3.3V |
Backlight | LED/White/Edge |
Luminance | 520 cd/m2 |
Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
Weight | 0.6 lbs |
---|---|
Dimensions | 100.00 × 164.90 × 3.50 mm |
backlightcolor | |
diagonal-size | |
displaytype | |
polarizertype | |
resolution | |
touchpanel | |
viewingdirection |
