2.4″ TFT, 240×320, 220 Nits
$12.17 $6.09CONTACT FOR VOLUME PRICING
69 in stock
- Final sale: Non-refundable.
- Product is EOL, Do not suggest for new design.
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: MCU 18 BITS
- Luminance: 220 cd/m2
- Viewing Direction: 6 o’clock
- Touch Panel: None
SKU: AFY240320A0-2.4N6NTN
Categories: Color TFT, On sale, Special Size TFT Panels
Description
(Final Sale)

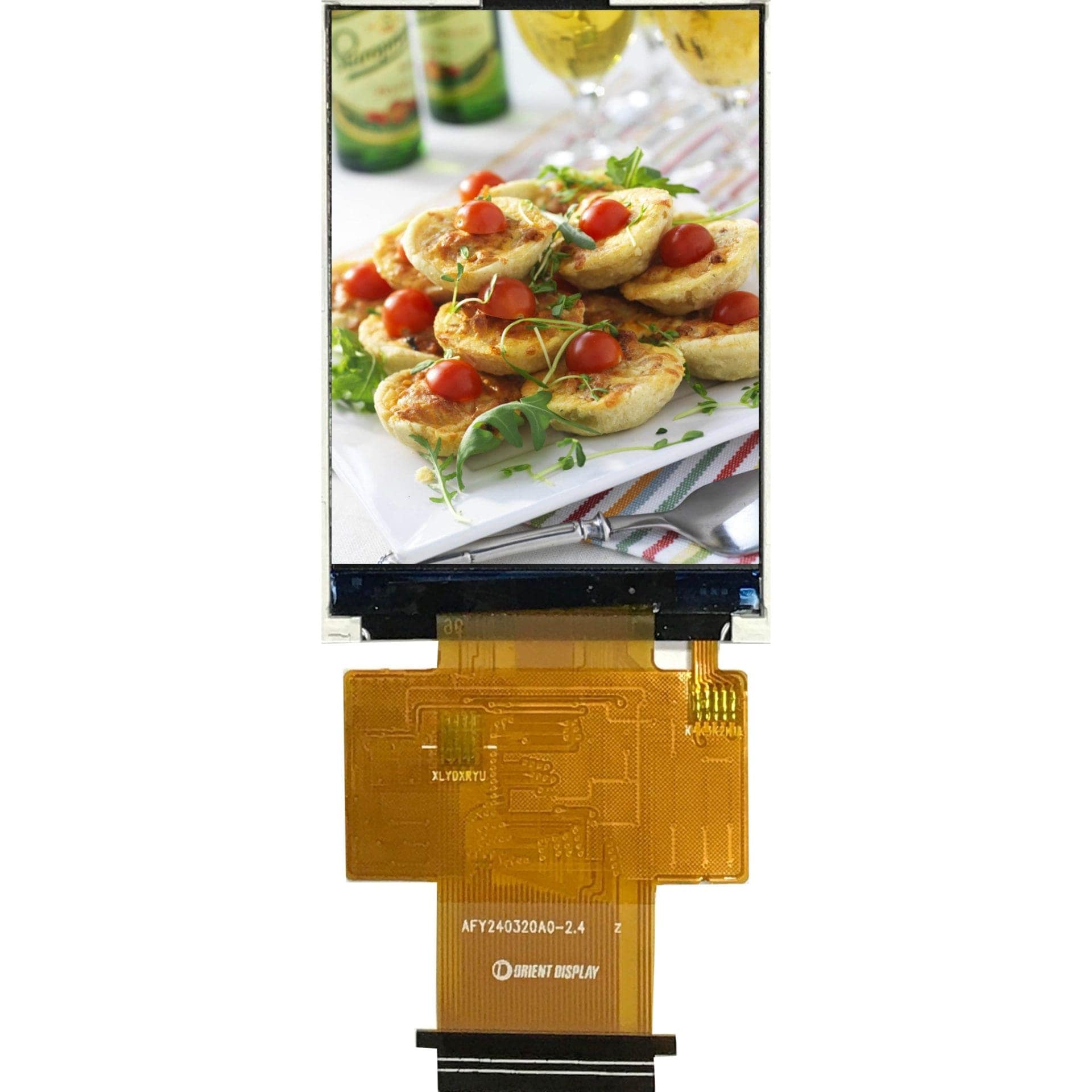

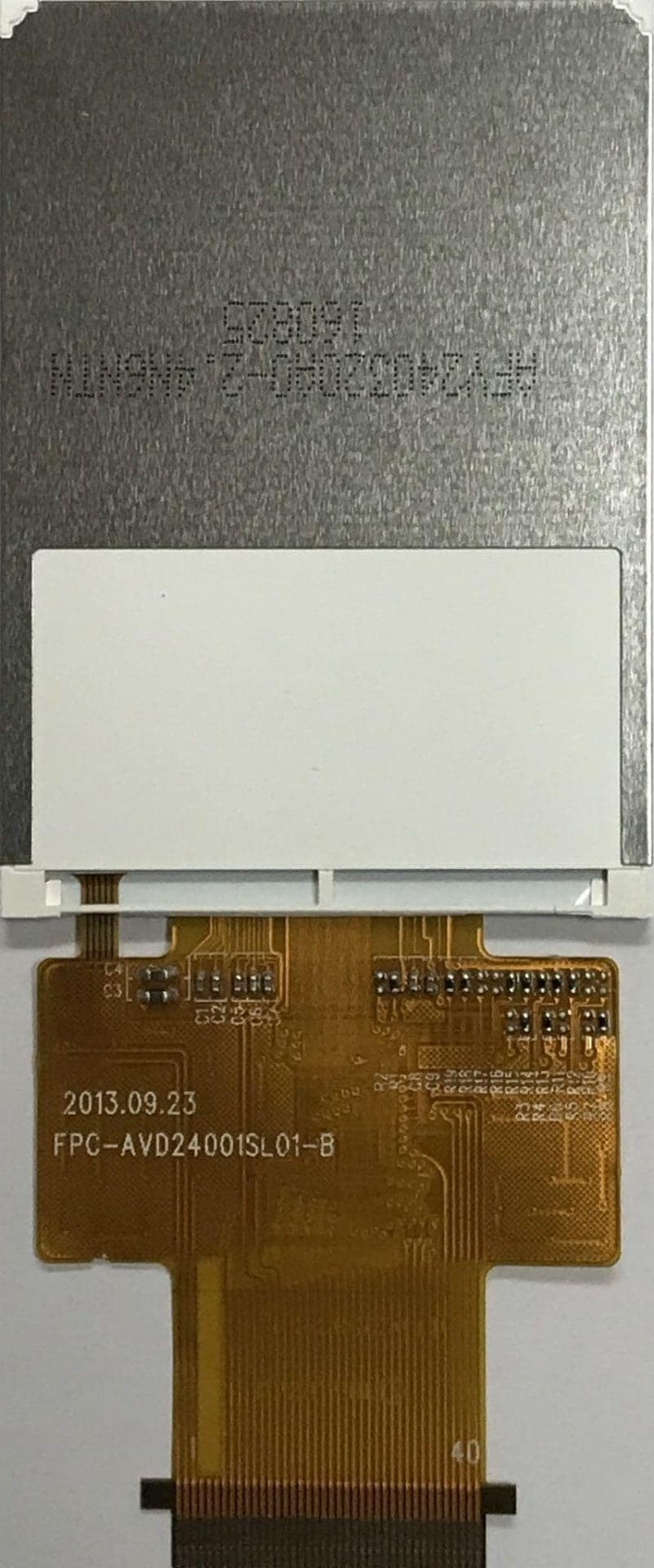

A simple 2.4″ Full Color / Normal Brightness TFT Module, Transmissive / Normal White with 240 x (RGB) x 320 dots.
The highest quality product at the lowest price. Ships from the USA.
- 2.4″ TFT, 240 x (RGB) x 320
- Full Color / Normal Brightness TFT Module
- Transmissive / Normal White
- Six o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFY240320A0-2.4N6NTN
Controller Datasheet: ILI9341
Optional Accessory: JAZZ-CPU-D1
Model / Series Name | AFY240320A0-2.4N6NTN |
Diagonal Dimension (inch) | 2.4 |
Dots WxH | 240 x 320 |
Module Size WxHxT max (mm) | 42.7 x 60.26 x 2.45 |
Display Mode | 262K TFT / Transmissive / Normal White |
IC | ILI9341 (see IC Controller Example Codes here) |
Interface Type | MCU 18 BITS |
Logic Power Supply Voltage | 2.8V |
Backlight | 4 Chip White LED, lf = 60 mA |
Luminance | 220 cd/m2 |
Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
