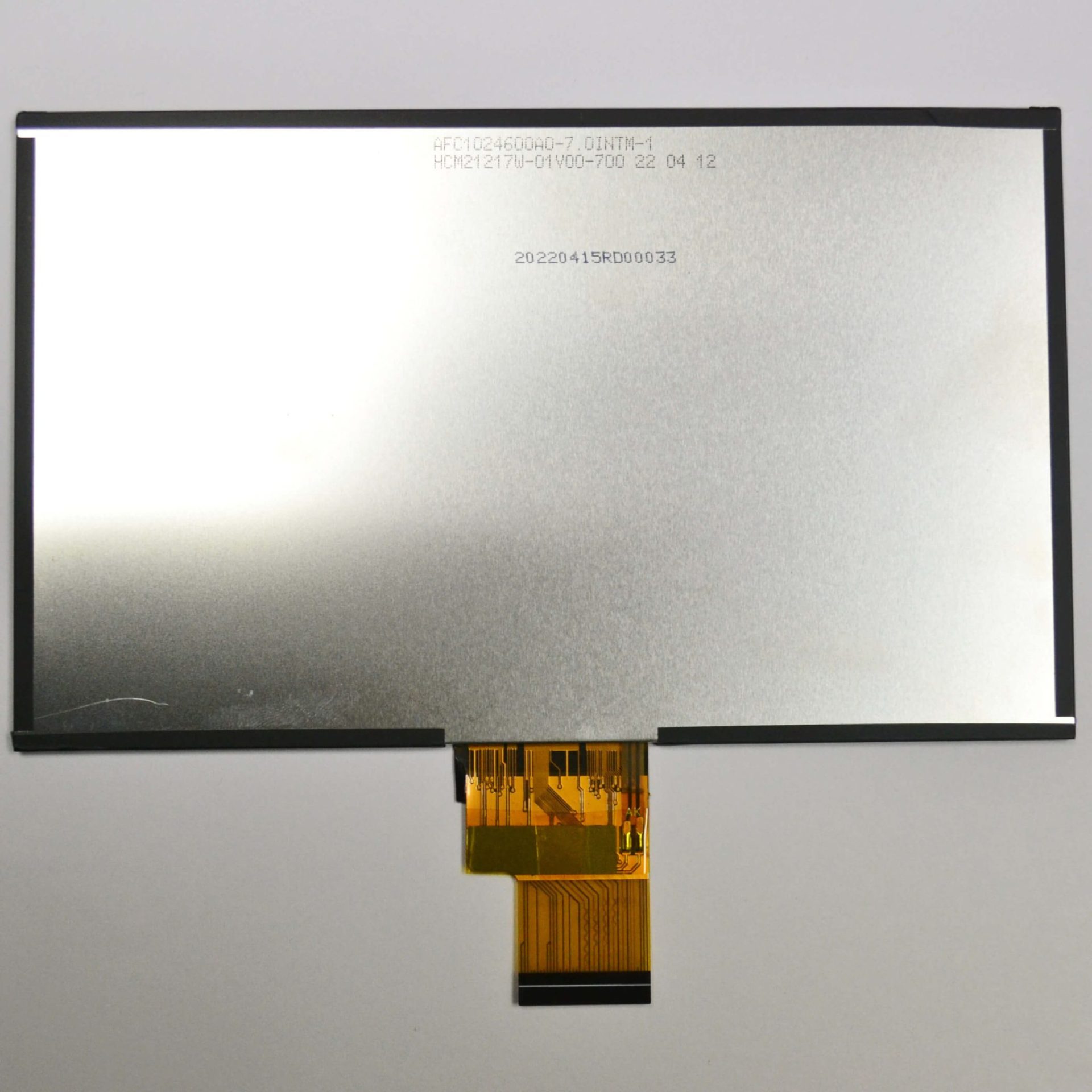

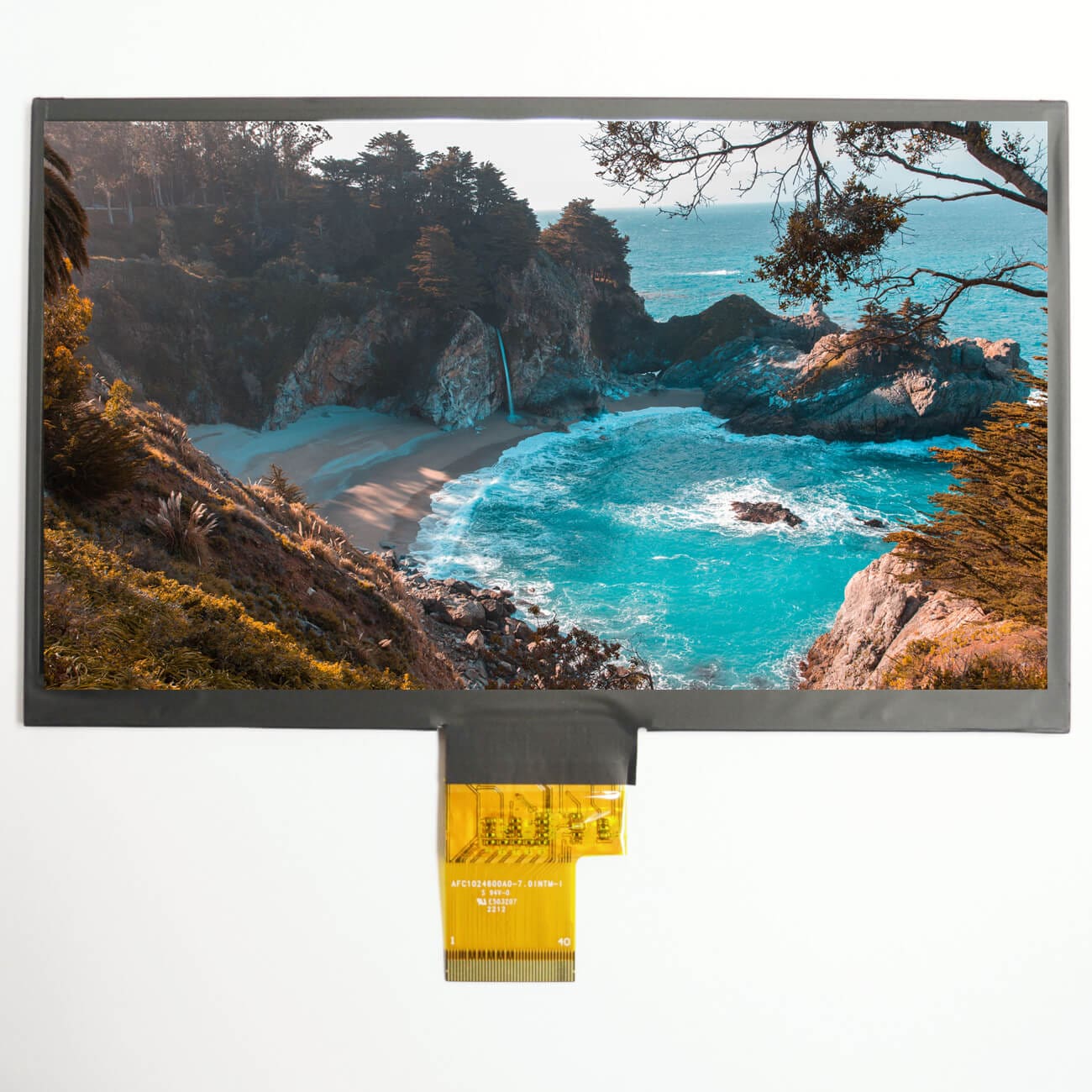

7.0″ IPS TFT, 1024×600, All Viewing Angle, Medium Brightness, LVDS Interface
$44.65CONTACT FOR VOLUME PRICING
20 in stock
- Diagonal Dimension: 7.0 Inch
- Resolution: 1024 x 600 pixels
- Interface: LVDS
- Luminance: 500 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
SKU: AFC1024600A0-7.0INTM
Categories: Medium Brightness TFT Panels, Color TFT
Description
A simple 7.0″ IPS TFT Display 1024×600 Full Color / Medium Brightness TFT Module, Transmissive/ Normal Black / IPS All Viewing Angle.
7.0 Inch IPS TFT Display
The highest quality product at the lowest price. Ships from the USA.
- 7.0″ TFT, 1024 x (RGB) x 600
- Full Color / Medium Brightness TFT Module
- ALL Viewing Direction
- Transmissive / Normal Black
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFC1024600A0-7.0INTM coming soon
Controller Datasheet: HX8282-A11 + HX8696-A01
Optional Accessory: TBA
Model / Series Name | AFC1024600A0-7.0INTM |
Diagonal Dimension (inch) | 7.0 |
Dots WxH | 1024 x 600 |
Module Size WxHxD max (mm) | 164.90 * 100.00 * 2.80mm |
Display Mode | IPS TFT / Transmissive / Normal Black |
IC | HX8282-A11 + HX8696-A01 |
Interface Type | LVDS |
Logic Power Supply Voltage | 3.3V |
Backlight | White LED |
Luminance | 500 cd/m2 |
Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
