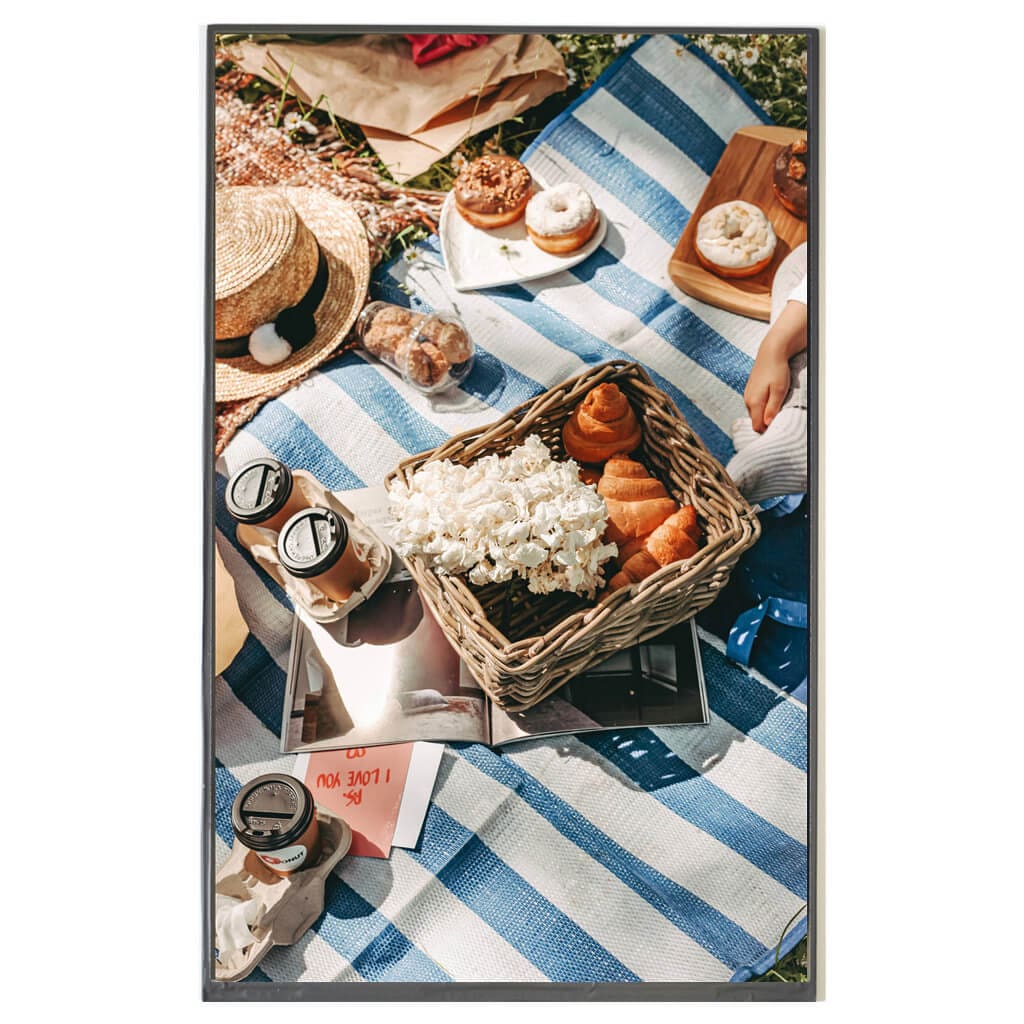

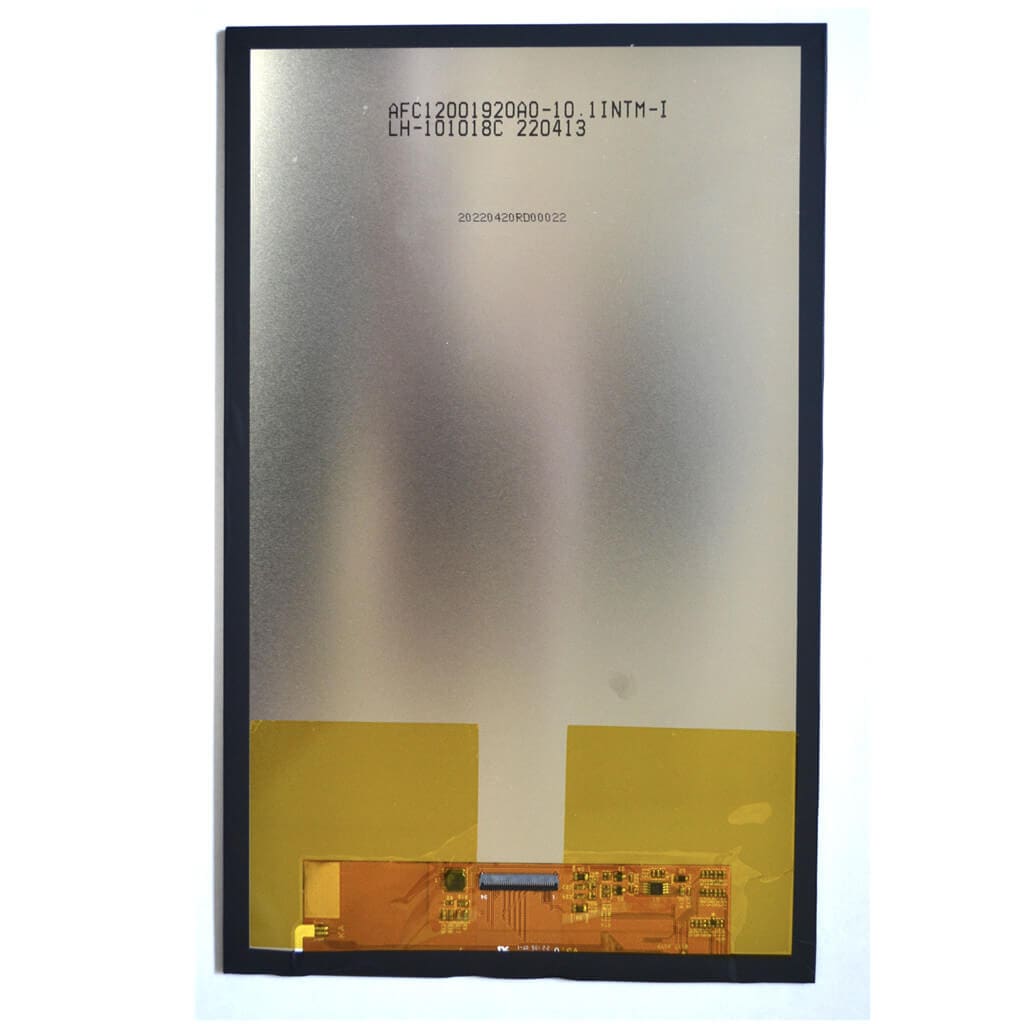

10.1″ IPS TFT, 1200×1920, All Viewing Angle, Medium Brightness, MIPI Interface
$67.71CONTACT FOR VOLUME PRICING
18 in stock
- Diagonal Dimension: 10.1 Inch
- Resolution: 1200 x 1920 pixels
- Interface: MIPI
- Luminance: 450 cd/m2
- Viewing Direction: ALL
- Touch Panel: None
Description
A simple 10.1″ IPS TFT Display 1200×1920 Full Color / Medium Brightness TFT Module, Transmissive/ Normal Black / IPS All Viewing Angle.
10.1 Inch IPS TFT Display
The highest quality product at the lowest price. Ships from the USA.
- 10.1″ TFT, 1200 x (RGB) x 1920
- Full Color / Medium Brightness TFT Module
- ALL Viewing Direction
- Transmissive / Normal Black
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFC12001920A0-10.1INTM-I
Controller Datasheet: HX8279-D01
Optional Accessory: TBA
| Model / Series Name | AFC12001920A0-10.1INTM-I |
| Diagonal Dimension (inch) | 10.1 |
| Dots WxH | 1200 x 1920 |
| Module Size WxHxD max (mm) | 142.32 * 227.38 * 2.5mm |
| Display Mode | IPS TFT / Transmissive / Normal Black |
| IC | HX8279-D01 |
| Interface Type | MIPI |
| Logic Power Supply Voltage | 3.3V |
| Backlight | White LED |
| Luminance | 450 cd/m2 |
| Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
