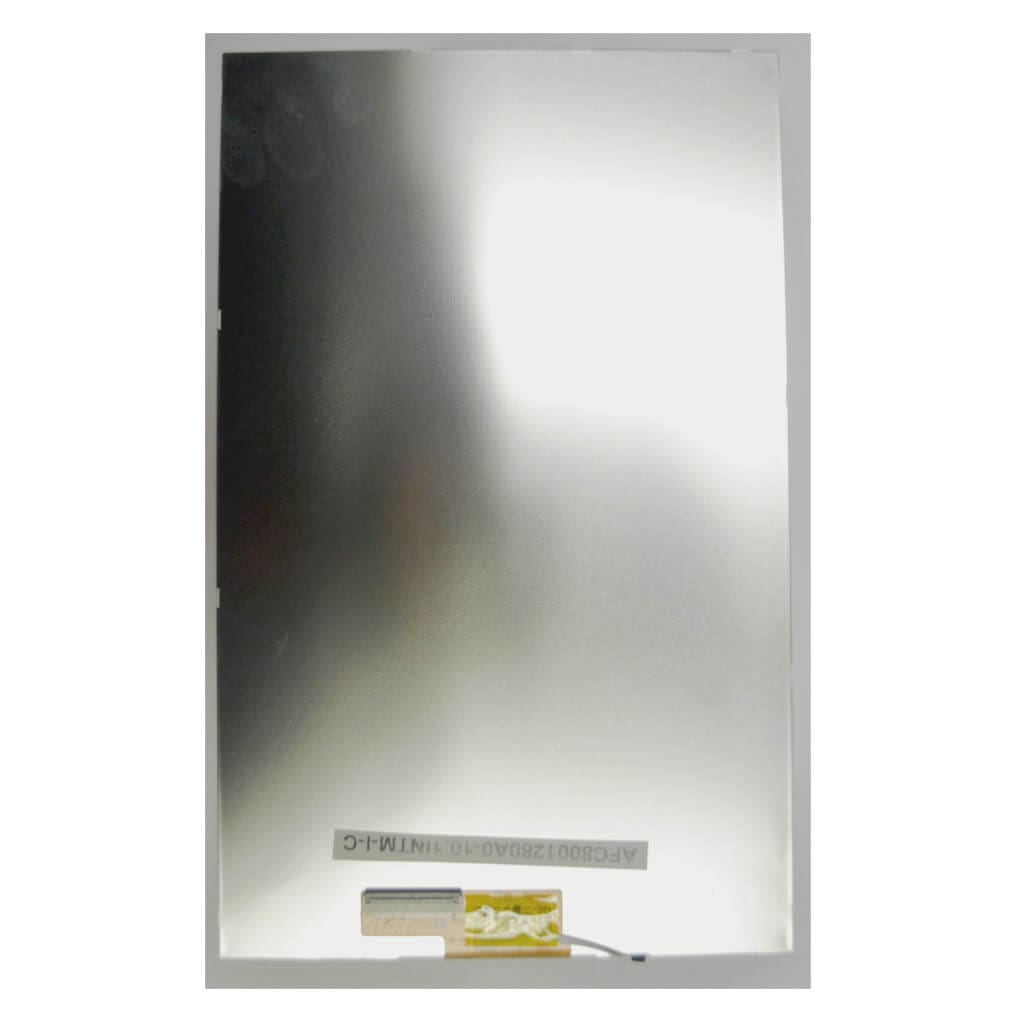

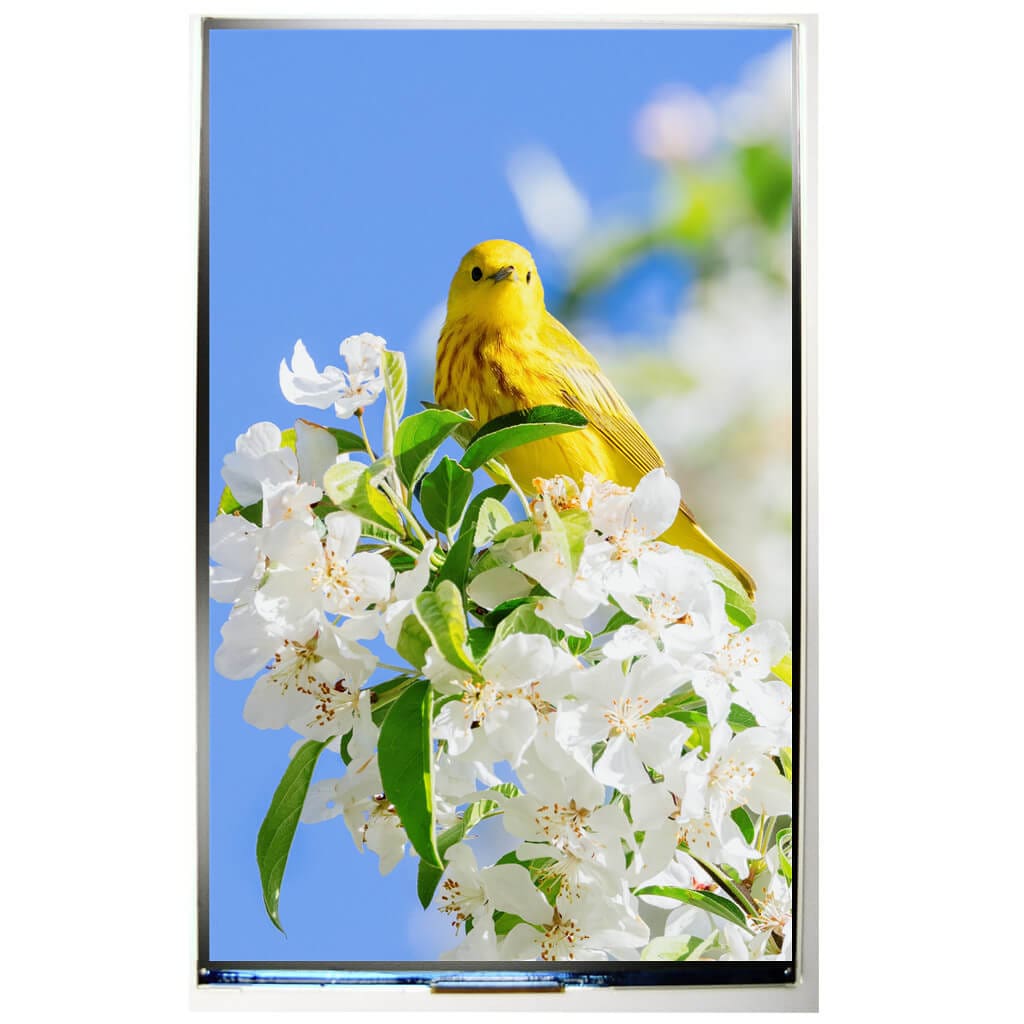

10.1″ IPS TFT with PCAP, 800×1280, All Viewing Angle, Medium Brightness, MIPI Interface
$86.66CONTACT FOR VOLUME PRICING
19 in stock
- Diagonal Dimension: 10.1 Inch
- Resolution: 800 x 1280 pixels
- Interface: MIPI
- Luminance: 400 cd/m2
- Viewing Direction: ALL
- Touch Panel: Capacitive
Description
A simple 10.1″ IPS TFT Display 800×1280 Full Color / Medium Brightness TFT Module, Transmissive/ Normal Black / IPS All Viewing Angle / with Capacitive Touch Panel.
10.1 Inch IPS TFT Display with PCAP
The highest quality product at the lowest price. Ships from the USA.
- 10.1″ TFT, 800 x (RGB) x 1280
- Full Color / Medium Brightness TFT Module
- ALL Viewing Direction
- Transmissive / Normal Black
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below
Product Datasheet: AFC8001280A0-10.1INTM-I-C
Controller Datasheet: ILI9881C
Optional Accessory: TBA
| Model / Series Name | AFC8001280A0-10.1INTM-I-C |
| Diagonal Dimension (inch) | 10.1 |
| Dots WxH | 800 x 1280 |
| Module Size WxHxD max (mm) | 145.5 * 231.0 * 4.86mm |
| Display Mode | IPS TFT / Transmissive / Normal Black |
| IC | ILI9881C |
| Interface Type | MIPI |
| Logic Power Supply Voltage | 3.3V |
| Backlight | White LED |
| Luminance | 400 cd/m2 |
| Touch Panel | Capacitive |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
| Weight | 0.47 lbs |
|---|---|
| Dimensions | 228 × 143 × 3 mm |
| backlightcolor | |
| diagonal-size | |
| displaytype | |
| polarizertype | |
| resolution | |
| touchpanel | |
| viewingdirection |
