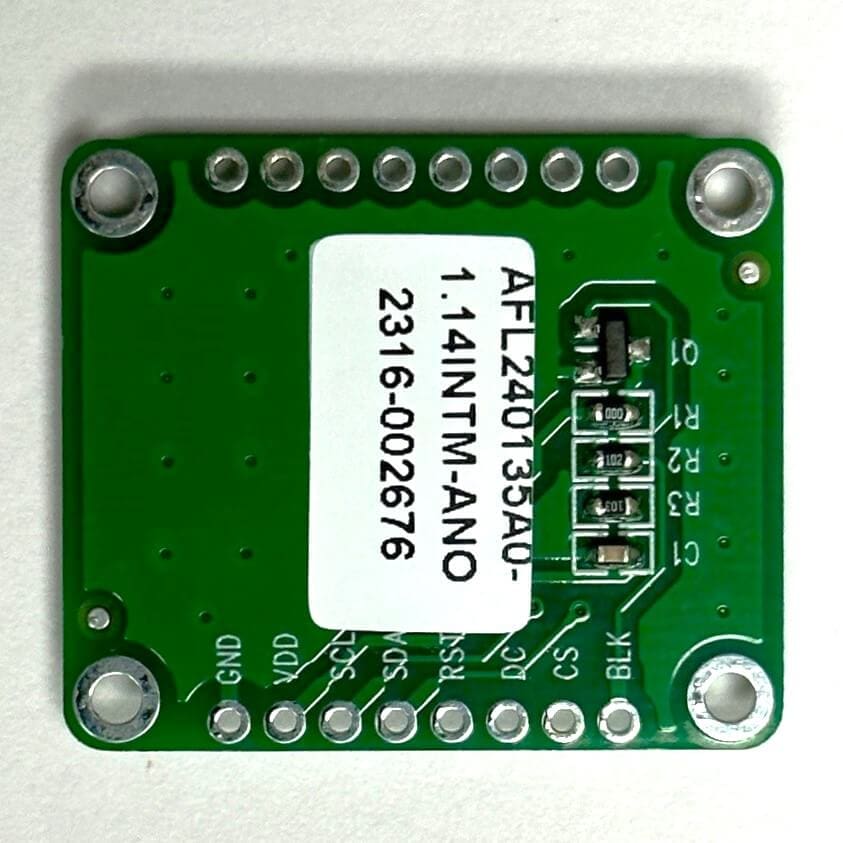

1.14″ Arduino IPS TFT,240×135, 300 Nits, 4-wire SPI Interface

14 in stock

Medium Brightness / IPS display
Diagonal Dimension: 1.14 Inch
Resolution: 240 x 135 pixels
Interface: 4-wire SPI + Arduino Compatible
Luminance: 300 cd/m²
Viewing Direction: All
Touch Panel: None

Pricing table

Quantity	Unit Price
25-49	$8.04
50-99	$6.95
100-149	$6.39
150-199	$5.93
200-	$5.46

Compare

Add to wishlist

SKU: AFL240135A0-1.14INTM-ANO Categories: Embedded TFT Modules, Arduino TFT Display

Description

A simple Arduino IPS TFT 1.14″ Medium Brightness / IPS Mode, Transmissive / All Viewing Direction with 240 x 135 dots, 4-wire SPI Interface.

The highest quality product at the lowest price. Ships from the USA.

1.14″ IPS, 240 x 135
Medium Brightness / IPS
Transmissive
All Viewing Direction
Operating Temp: -20°C to 70°C
Storage Temp: -30°C to 80°C
ROHS Compliant

Download Product References Below

Product Datasheet: AFL240135A0-1.14INTM-ANO

Controller Datasheet: ST7789V

Optional Accessory: TBD

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Model / Series Name	AFL240135A0-1.14INTM-ANO
Diagonal Dimension (Inches)	1.14
Dots WxH	240 x 135
Module Size WxHxD max (mm)	33.0 x 28.0 x 5.0
Display Mode	IPS / Transmissive
IC	ST7789V
Interface Type	4-wire SPI + Compatible Arduino
Logic Power Supply Voltage	3.3
Backlight	LED, WHITE
Luminance	300 cd/m²
Touch Panel	None

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

Additional information

Weight	0.009 lbs
Dimensions	33 × 28 × 13 mm
backlightcolor	White
Diagonal Size (Inch)	1.14
displaytype	Arduino TFT Display, TFT – IPS
polarizertype	Transmissive
resolution	240×135
Touch Panel	None
viewingdirection	All
interface	SPI
