HomeTFT DisplaysColor TFT 5.0″ Raspberry Pi TFT with RTP, 800×480, 800 Nits, VGA/HDMI/USB Interface
Previous product
OD-302 (3 Digit LCD Glass Panel) $3.00
Back to products
Next product
OD-409 (4 Digit LCD Glass Panel) $3.00

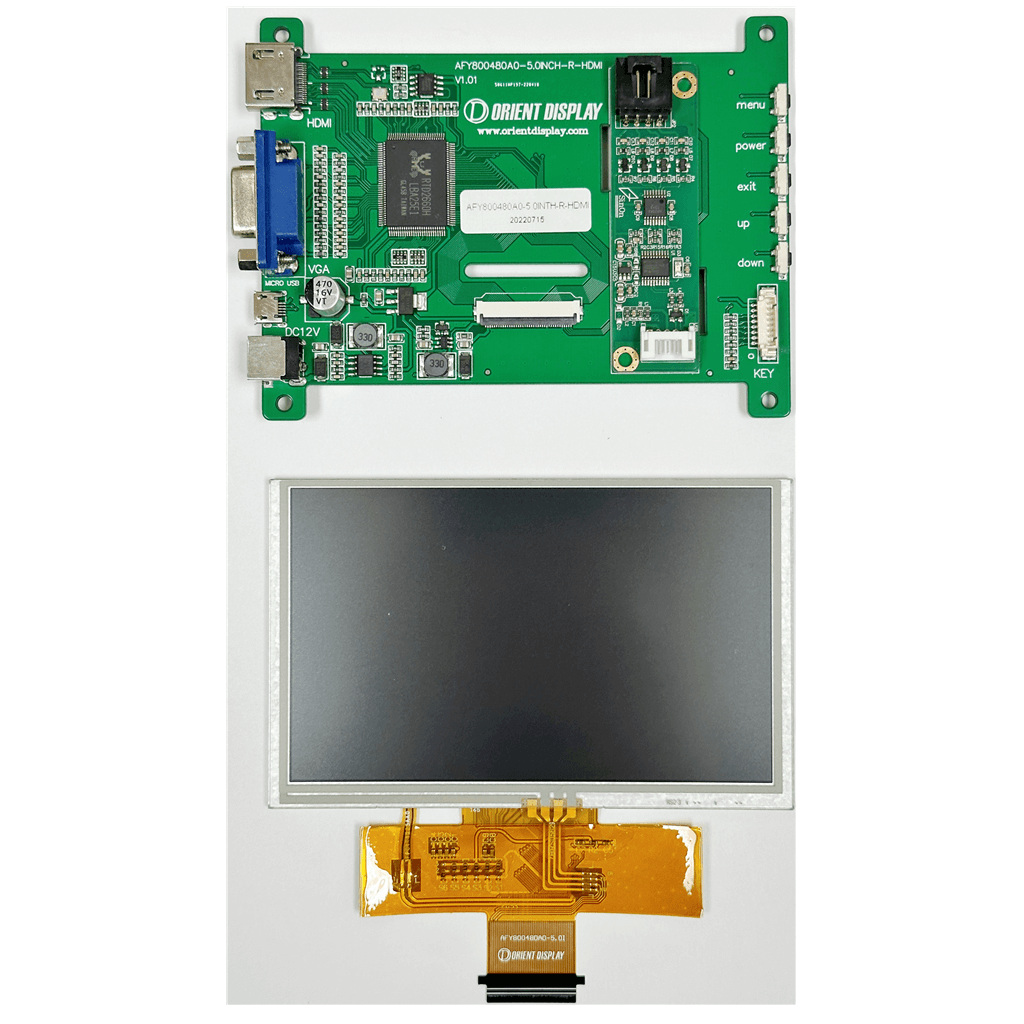

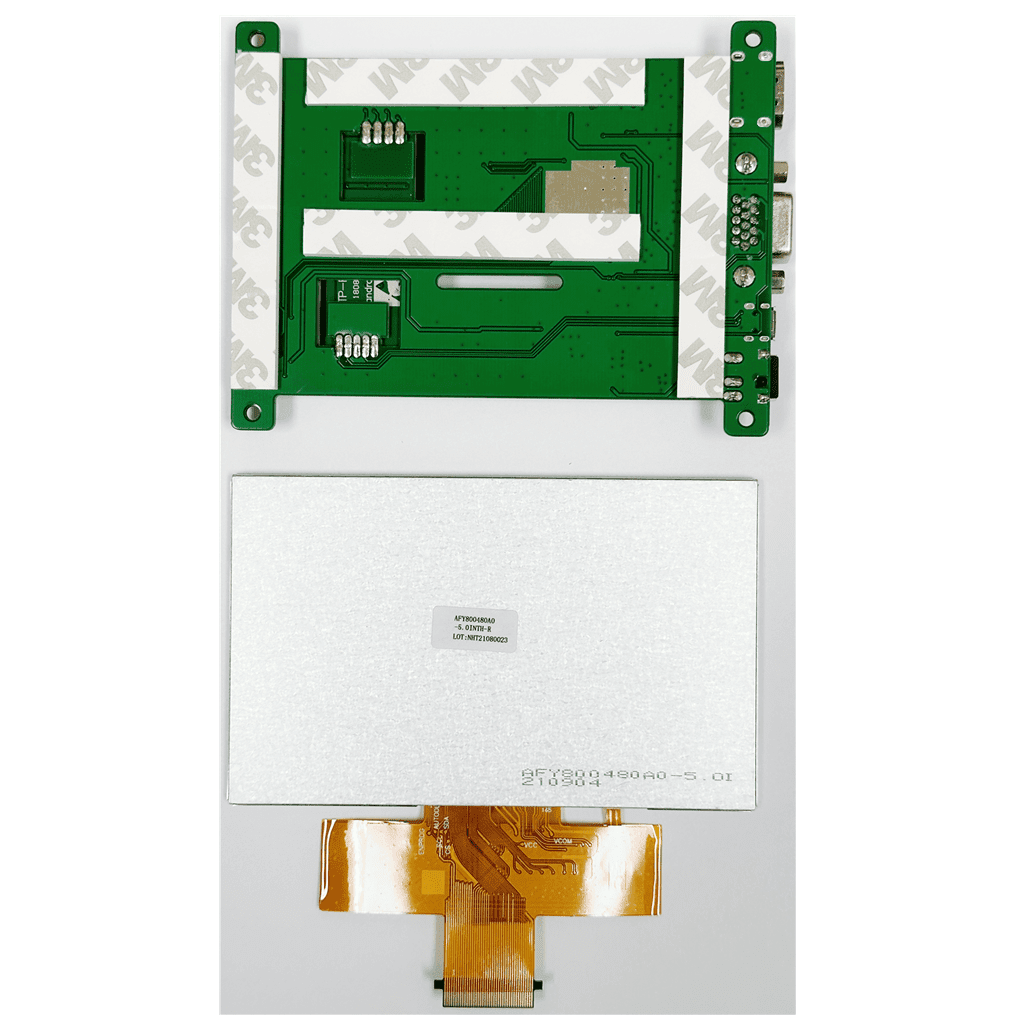

5.0″ Raspberry Pi TFT with RTP, 800×480, 800 Nits, VGA/HDMI/USB Interface

$81.88CONTACT FOR VOLUME PRICING

8 in stock

  • TFT and HDMI Board will be shipped UNASSEMBLED
  • High Brightness / Sunlight Readable IPS
  • Diagonal Dimension: 5 Inch
  • Resolution: 800 x 480 pixels
  • Interface: VGA /HDMI / USB
  • Luminance: 800 cd/m2
  • Viewing Direction: ALL
  • Touch Panel: Resistive
Compare
Add to wishlist
SKU: AFY800480A0-5.0INTH-R-HDMI Categories: Color TFT, Capacitive Touch Panels Displays, Embedded TFT Modules, Raspberry Pi series HDMI Interface, Touch Panels
Share
Facebook Email linkedin

Description

A simple 5.0″ High Brightness / Sunlight Readable IPS Module with VGA / HDMI / USB interface, Transmissive / All Viewing Direction / Normal Black with 800 x (RGB) x 480 dots.

The highest quality product at the lowest price. Ships from the USA.
  • 5.0″ IPS, 800 x (RGB) x 480
  • High Brightness / Sunlight Readable IPS
  • Transmissive / Normal Black / Resistive Touch Panel
  • ALL Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant

Download Product References Below
Product Datasheet: AFY800480A0-5.0INTH-R-HDMI
Controller Datasheet: RTD2662
Optional Accessory: TBD




Model / Series Name AFY800480A0-5.0INTH-R-HDMI
Diagonal Dimension (inch) 5.0
Dots WxH 800 x 480
Module Size WxH max (mm) 120.70 x 92.00
Display Mode IPS / Normal black / Transmissive
IC RTD2662
Interface Type VGA / HDMI / USB
Logic Power Supply Voltage 12 V
Backlight 20 Chip White LED, lf = 80 mA
Luminance 800 cd/m2
Touch Panel Resistive

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

    Additional information

    Weight 0.99 lbs
    Dimensions 92 × 120.70 × 5.10 mm
    backlightcolor

    White

    diagonal-size

    5.0

    displaytype

    TFT – IPS

    polarizertype

    Transmissive

    resolution

    800×480

    touchpanel

    Capacitive Touch Panel

    viewingdirection

    All

    interface

    HDMI, USB, VGA

    Reviews (0)

    Reviews

    There are no reviews yet.

    Be the first to review “5.0″ Raspberry Pi TFT with RTP, 800×480, 800 Nits, VGA/HDMI/USB Interface” Cancel reply
