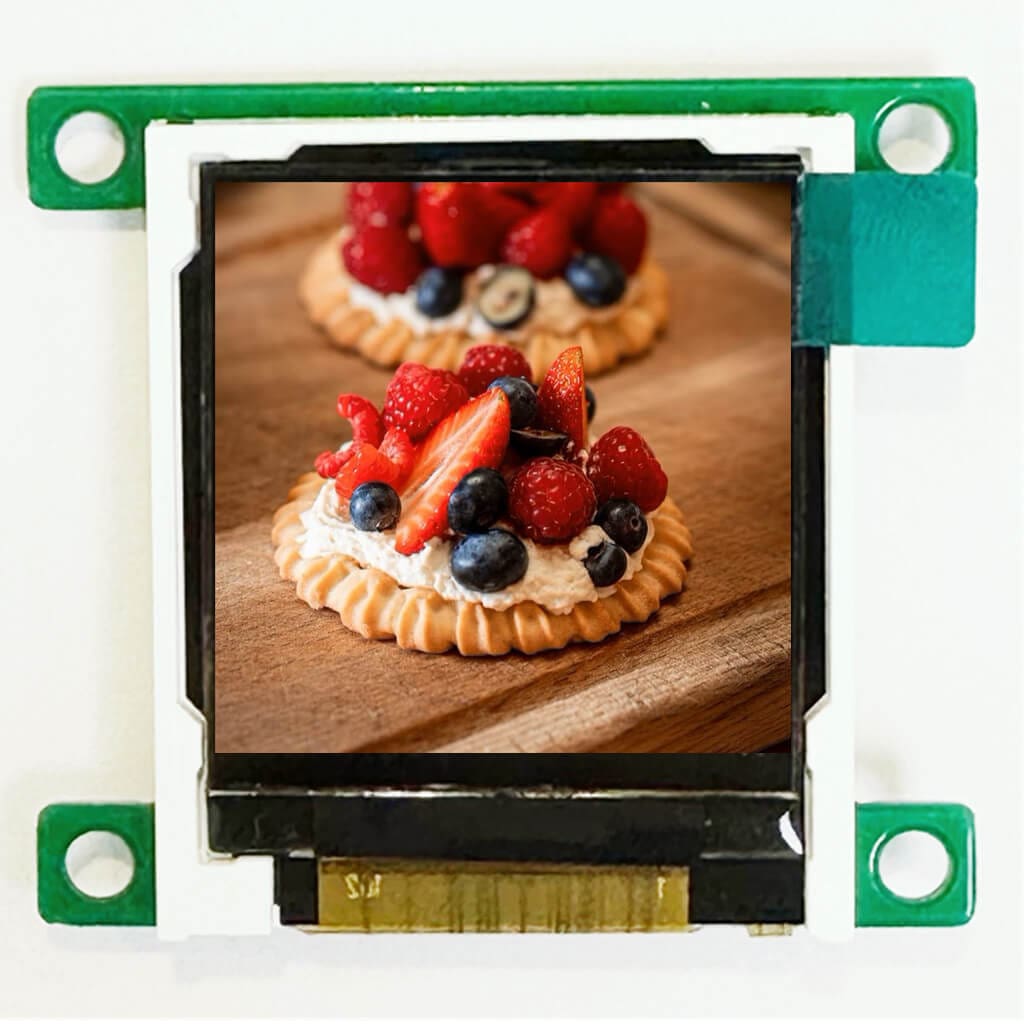

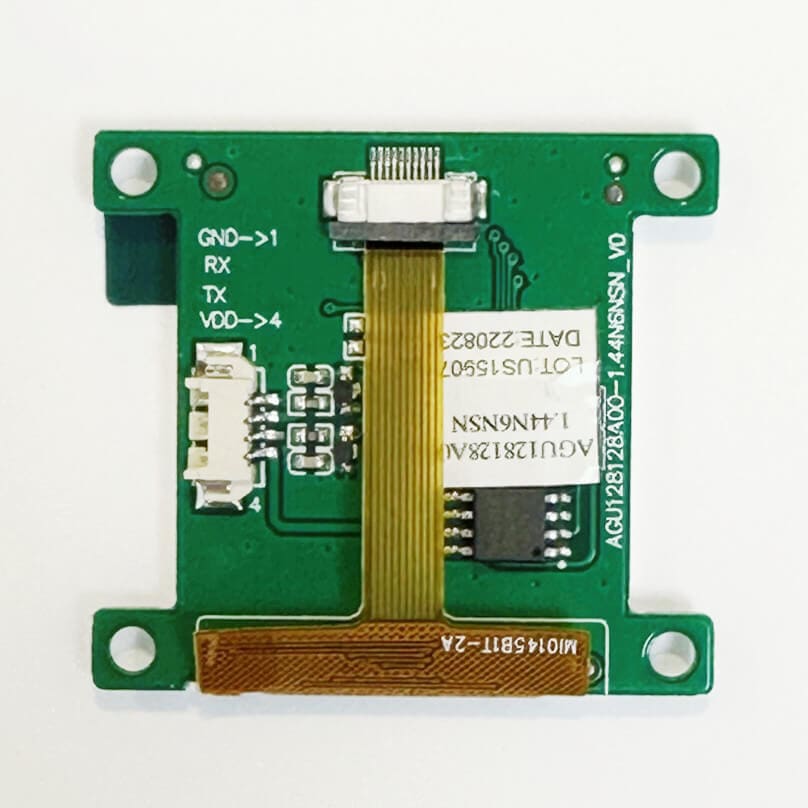

1.44” TN TFT display with UART interface,128×128, 240nits

$13.23CONTACT FOR VOLUME PRICING

9 in stock

  • Diagonal Dimension: 1.44 Inch
  • Resolution: 128 x 128 pixels
  • Luminance: 240 cd/m2
  • Viewing Direction: 6 o’clock
  • Touch Panel: None
  • Interface: UART
Compare
Add to wishlist
SKU: AGU128128A00-1.44N6NSN Categories: TFT Displays Modules, Embedded LCD Display Modules, Color TFT
Share
Facebook Email linkedin

Description

1.44″ TN TFT Display with UART interface, 128×128, Full Color / Normal Brightness TFT Module, Transmissive.

1.44 Inch TN TFT Display with UART Interface, 128×128 resolution

The highest quality product at the lowest price. Ships from the USA.
  • 1.44″ TN TFT, 128 x 128 with UART interface
  • Full Color / Normal Brightness TFT Module
  • 6 o’clock Viewing Direction
  • Transmissive
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant
Download Product References Below
Drawing: AGU128128A00-1.44N6NSN
Controller Datasheet: ST7735S
TFT Datasheet: AFK128128A1-1.44N6NTN

Model / Series Name AGU128128A00-1.44N6NSN
Diagonal Dimension (inch) 1.44
Dots WxH 128 x 128
Module Size WxHxD max (mm) 44.36 * 39.93 * 7.9mm (PCB)
Display Mode TN TFT / Transmissive / Normal White
IC ST7735S
Interface Type UART interface
Logic Power Supply Voltage 3.3V
Backlight White LED
Luminance 240 cd/m2
Touch Panel None

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Additional information

Weight 0.015 lbs
Dimensions 34 × 43 × 3 mm
backlightcolor

White

diagonal-size

1.44

displaytype

TFT – TN

polarizertype

Transmissive

touchpanel

None

viewingdirection

6 o'clock
