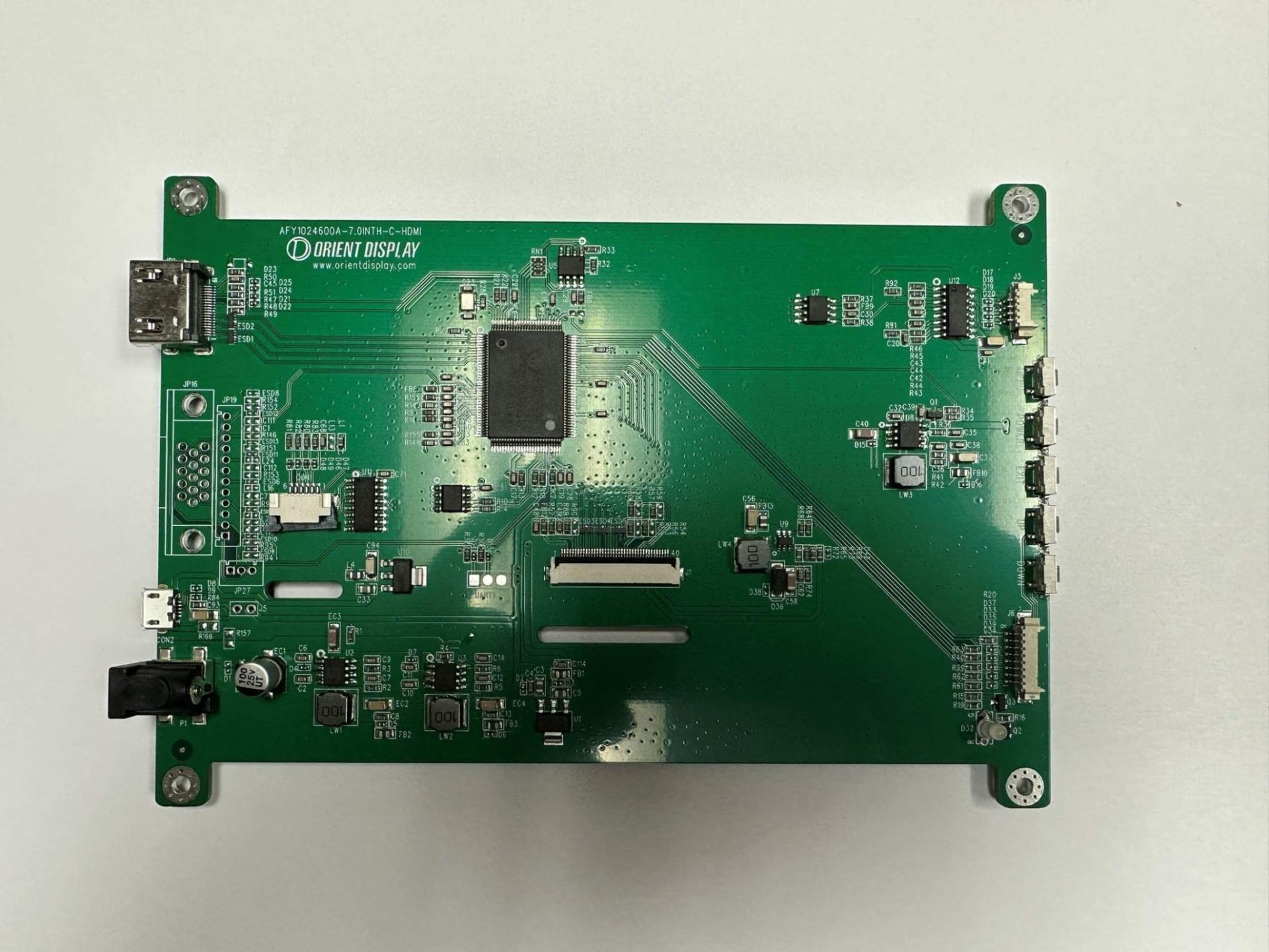

7.0″ Raspberry Pi TFT with PCAP, 1024×600, 900 Nits, HDMI/USB Interface

$107.88CONTACT FOR VOLUME PRICING

73 in stock

High Brightness / Sunlight Readable IPS
Diagonal Dimension: 7 Inch
Resolution: 1024 x 600 pixels
Interface: HDMI / USB
Luminance: 900 cd/m²
Viewing Direction: ALL
Touch Panel: Capacitive

Pricing table

Quantity	Unit Price
25-49	$102.82
50-	$97.81

Compare

Add to wishlist

SKU: AFY1024600A2-7.0INTH-C-HDMI Categories: Embedded TFT Modules, Touch Panels, Color TFT, Raspberry Pi series HDMI Interface, Capacitive Touch Panels Displays

Description

A simple 7.0″ High Brightness / Sunlight Readable IPS Module with HDMI / USB interface, Transmissive / All Viewing Direction / Normal Black with 1024 x (RGB) x 600 dots.

The highest quality product at the lowest price. Ships from the USA.

7.0″ IPS, 1024 x (RGB) x 600
High Brightness / Sunlight Readable IPS
Transmissive / Normal Black / Capacitive Touch Panel
ALL Viewing Direction
Operating Temp: -20°C to 70°C
Storage Temp: -30°C to 80°C
ROHS Compliant

Download Product References Below

Product Datasheet: AFY1024600A2-7.0INTH-C-HDMI

Controller Datasheet: RTD2662

Optional Accessory: TBD

Model / Series Name	AFY1024600A2-7.0INTH-C-HDMI
Diagonal Dimension (Inches)	7.0
Dots WxH	1024 x 600
Module Size WxH max (mm)	164.80 x 116.20
Display Mode	IPS / Normal black / Transmissive
IC	RTD2662
Interface Type	HDMI / USB
Logic Power Supply Voltage	12V
Backlight	30 Chip White LED, lf = 150mA
Luminance	900 cd/m²
Touch Panel	Capacitive

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

Additional information

Weight	0.95 lbs
Dimensions	167 × 115 × 12 mm
backlightcolor	White
diagonal-size	7.0
displaytype	TFT – IPS
polarizertype	Transmissive
resolution	1024×600
touchpanel	Capacitive Touch Panel
viewingdirection	All
interface	HDMI, USB
