OD-302 (3 Digit LCD Glass Panel)
$3.00CONTACT FOR VOLUME PRICING
200 in stock
- TN LCD Glass Panel
- 3 Digit
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
SKU: OD-302
Category: LCD Glass Panels
Description
A simple TN LCD Glass Panel that can display 3 alphanumeric characters (7 segments each). This has a Pin Connection for easy mounting to a socket or for soldering it directly to the circuit board.

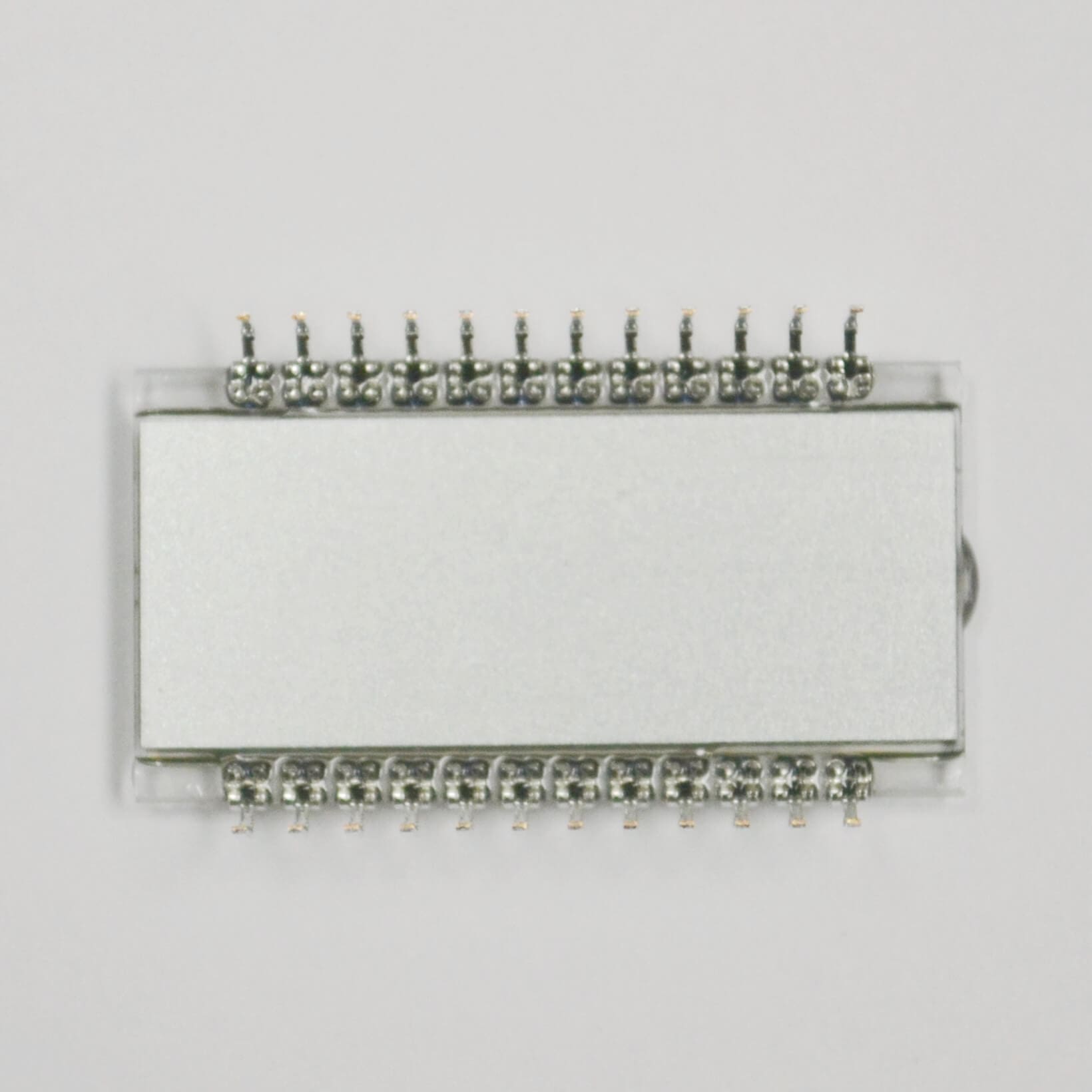

3 Digit LCD Glass Panel
The highest quality product at the lowest price.
- TN LCD Glass Panel
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
Download Product References Below

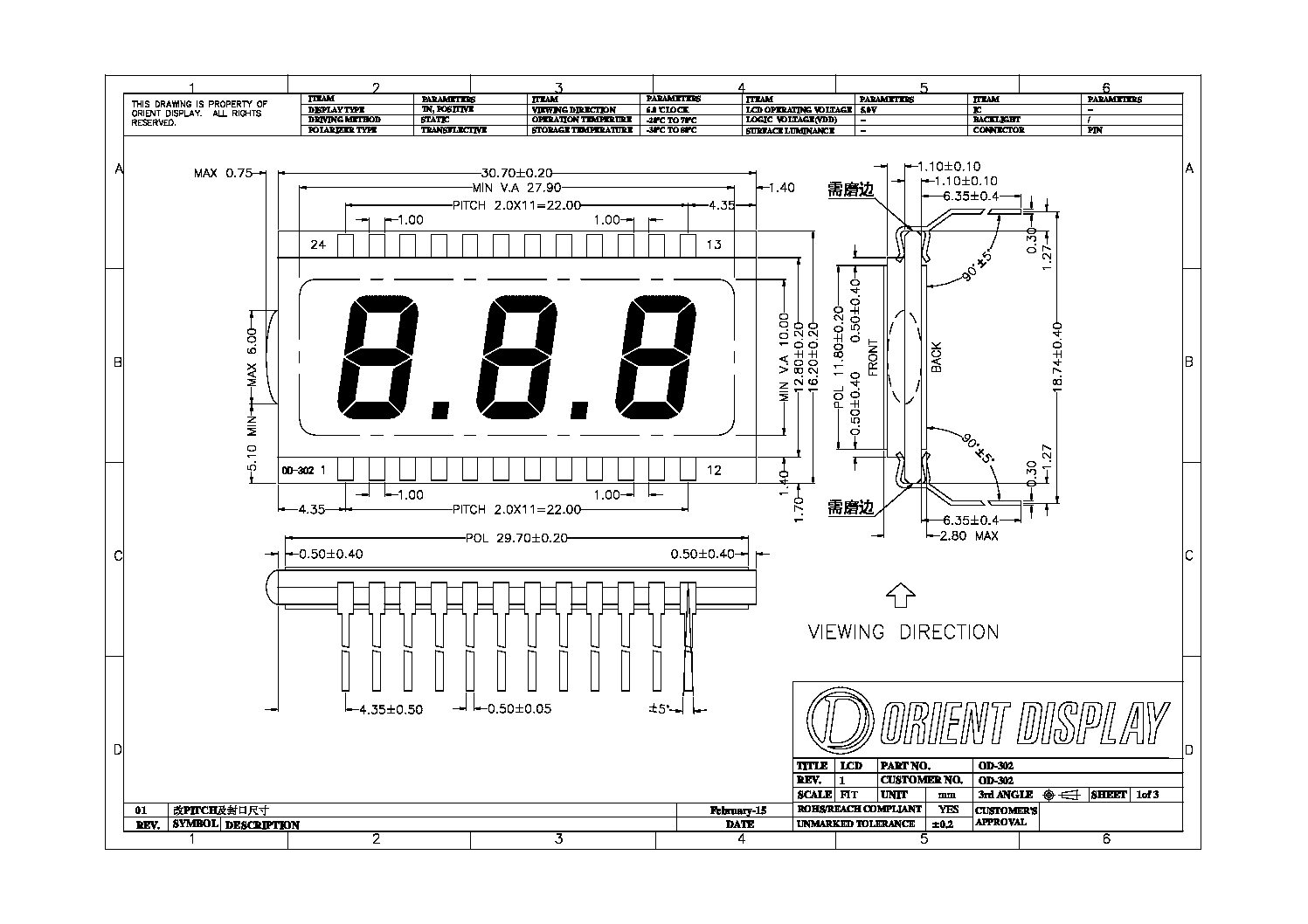

Product Datasheet: OD-302
Model / Series Name | OD-302 |
No. of Digitals | 3 |
LCD Mode | TN Positive |
Polarizer Type | Transflective |
Glass Size WxH (mm) | 30.70×16.20 |
View Area WxH (mm) | 27.90×10.00 |
No of Segments (each digit) | 7 |
Digital Height (mm) | 7.87 |
Operating Voltage | 5V |
Driver Method | / |
Connector | Pin |
Please also check out our other products under this category – LCD Glass Panels. If none of these products meet your needs, we can customize it according to your technical specifications.
Please send your inquiries to info@orientdisplay.com
Additional information
displaytype | |
---|---|
polarizertype | |
displaymode |
Reviews (0)
Be the first to review “OD-302 (3 Digit LCD Glass Panel)” Cancel reply
Shipping & Delivery
Related products
OD-202 (2-Digit LCD Glass Panel)
$2.00
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-409 (4 Digit LCD Glass Panel)
$3.00
- TN LCD Glass Panel
- 4 Digit
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
OD-609R (6 Digit LCD Glass Panel)
$8.00
- TN LCD Glass Panel
- Positive Display
- 6 o'clock Viewing Direction
- Operating Temp: -20°C to 80°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant

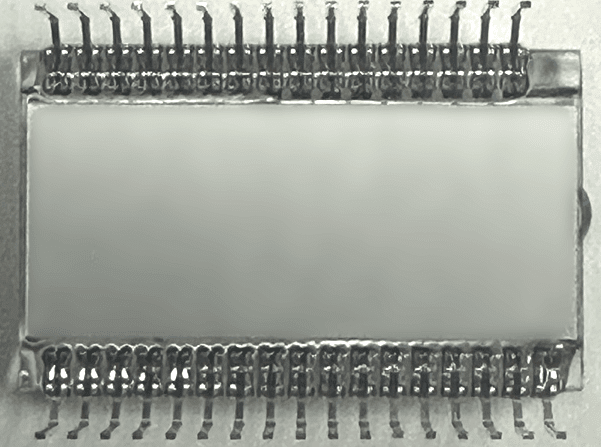

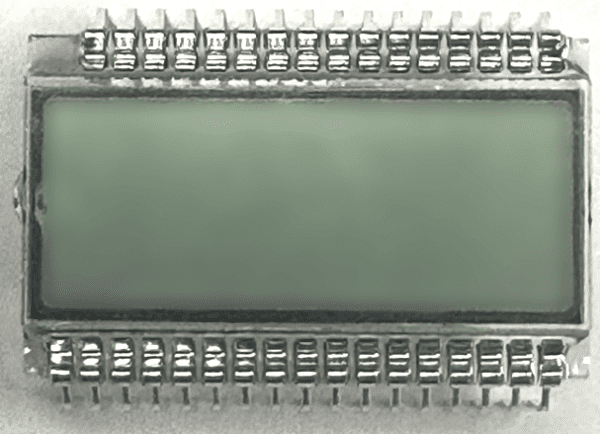

OD-372 (3 3/4 Digit LCD Glass Panel)
