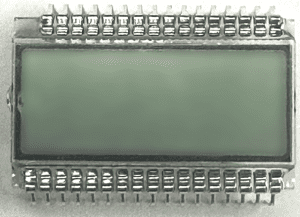

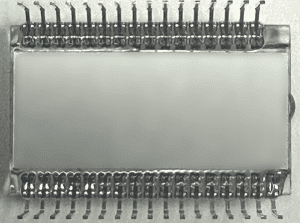

OD-372 (3 3/4 Digit LCD Glass Panel)
$2.72CONTACT FOR VOLUME PRICING
200 in stock
- TN LCD Glass Panel
- 3 3/4 Digit
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
SKU: OD-372
Category: LCD Glass Panels
Description
A simple TN LCD Glass Panel with zebra connection. This LCD Glass has elastomers (Zebra Strips), silicon strips of alternating conductors for easy compression between the LCD and the circuit board. This LCD requires a bezel to squeeze the display and the circuit board together. Please contact us anytime if you want to customize this display with a bezel.
OD-372 (LCD Glass Panel)
The highest quality product at the lowest price.
- TN LCD Glass Panel
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Reflective Polarizer
- ROHS Compliant
Download Product References Below
Product Datasheet: OD-372
Model / Series Name | OD-372 |
No. of Digitals | 3 3/4 (3 Digits, O and E Icons) |
LCD Mode | TN Positive |
Polarizer Type | Reflective |
Glass Size WxH (mm) | 23.70 x 11.50 |
View Area WxH (mm) | 21.70 x 8.20 |
Digital Height (mm) | 7.00 |
Operating Voltage | 3.0 |
Driving Method | 1/2 Duty, 1/2 Bias |
Connector | Zebra (without Pin) |
Please also check out our other products under this category – LCD Glass Panels. If none of these products meet your needs, we can customize it according to your technical specifications. Please send your inquiries to info@orientdisplay.com
Additional information
Weight | 0.03 lbs |
---|---|
Dimensions | 11.50 × 23.70 × 0.1 mm |
displaymode | |
displaytype | |
polarizertype |
