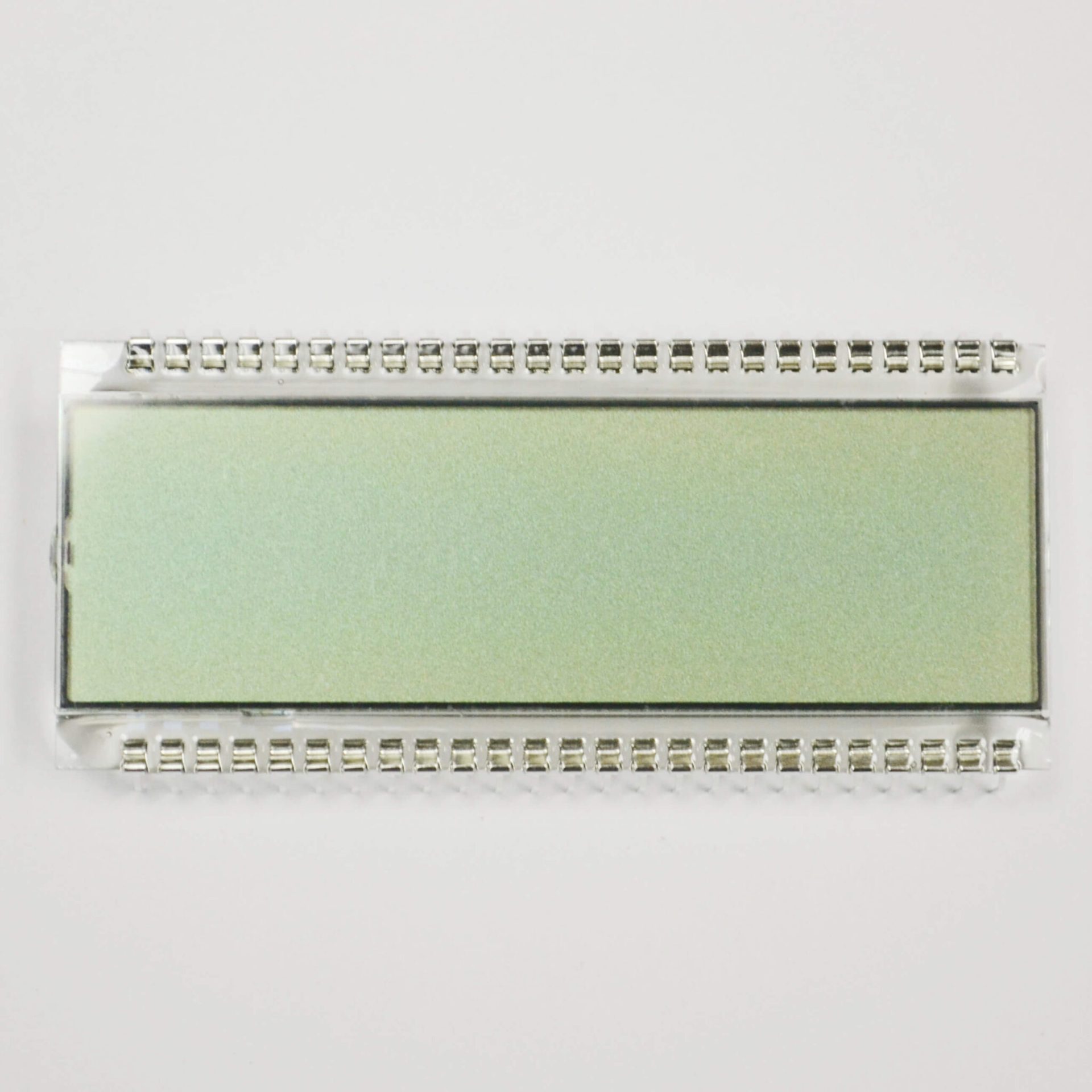

OD-609 (6 Digit LCD Glass Panel)
$8.00CONTACT FOR VOLUME PRICING
283 in stock
- TN LCD Glass Panel
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 80°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
SKU: OD-609
Categories: LCD Glass Panels, LCD Display Modules
Description
A simple TN LCD Glass Panel that can display 6 alphanumeric characters (7 segments each). This has a Pin Connection for easy mounting to a socket or for soldering it directly to the circuit board.
The highest quality product at the lowest price.
- TN LCD Glass Panel
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 80°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
Download Product References Below
Product Datasheet: OD-609
Model / Series Name | OD-609 |
No. of Digitals | 6 |
LCD Mode | TN Positive |
Polarizer Type | Transflective |
Glass Size WxH (mm) | 69.85 x 30.48 |
View Area WxH (mm) | 63.50 x 16.51 |
No of Segments (each digit) | 7 |
Digital Height (mm) | 12.70 |
Operating Voltage | 5V |
Driver Method | Static |
Connector | Pin |
Please also check out our other products under this category – LCD Glass Panels. If none of these products meet your needs, we can customize it according to your technical specifications.
Please send your inquiries to info@orientdisplay.com
Additional information
Weight | 0.21 lbs |
---|---|
Dimensions | 30.48 × 69.85 × 0.1 mm |
displaymode | |
displaytype | |
polarizertype |
