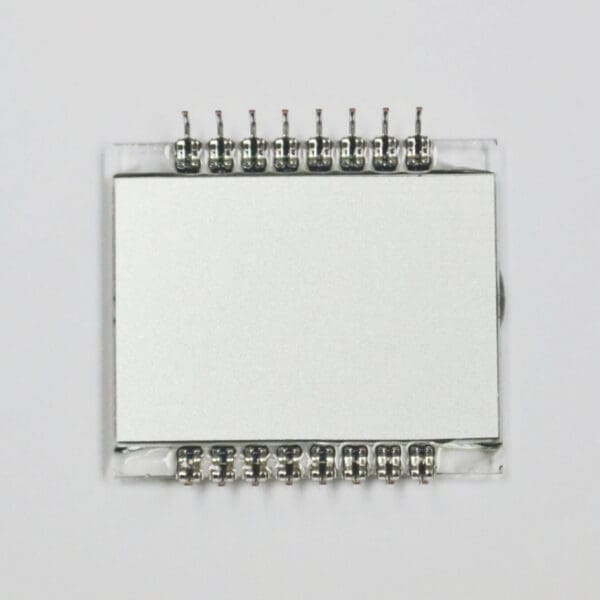

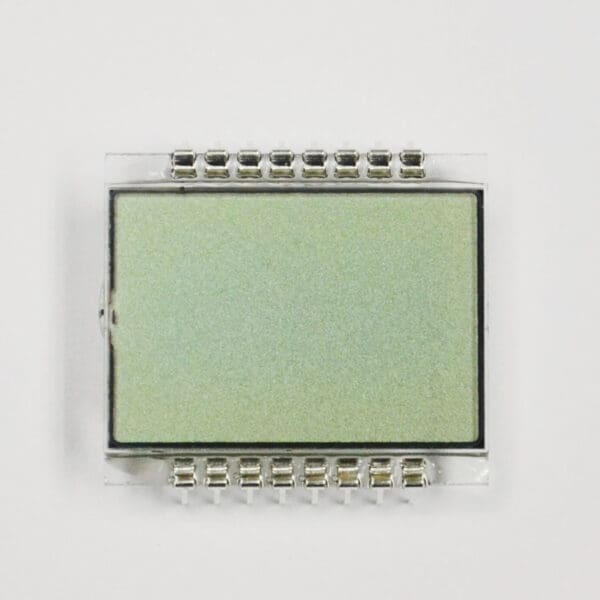

OD-202 (2-Digit LCD Glass Panel)
$2.00CONTACT FOR VOLUME PRICING
1672 in stock
- TN LCD Glass Panel
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
Description
This is a simple TN 2 Digit LCD Glass Panel with a Pin Connection for easy mounting to a socket or for soldering it directly to the circuit board.
OD-202 – 2-Digit LCD Glass Panel
The highest quality OD-202 at the lowest price.
- OD-202 TN LCD Glass Panel
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
Download Product References Below
Product Datasheet: OD-202
| Model / Series Name | OD-202 |
| No. of Digitals | 2 |
| LCD Mode | TN Positive |
| Polarizer Type | Transflective |
| Glass Size WxH (mm) | 22.86 x 21.34 |
| View Area WxH (mm) | 15.86 x 18.18 |
| No of Segments (each digit) | 7 |
| Digital Height (mm) | 12.7 |
| Operating Voltage | 3 |
| Driving Method | 1/2 Duty, 1/2 Bias |
| Connector | Pin |
Please also check out our other products under this category – LCD Glass Panels. If none of these products meet your needs, we can customize it according to your technical specifications.
Please send your inquiries to info@orientdisplay.com
Check Also: OD-103R 1 digit LCD glass panel.
Additional information
| Weight | 0.03 lbs |
|---|---|
| Dimensions | 21.34 × 22.86 × 0.1 mm |
