OD-409 (4 Digit LCD Glass Panel)
$3.00CONTACT FOR VOLUME PRICING
200 in stock
- TN LCD Glass Panel
- 4 Digit
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
Description

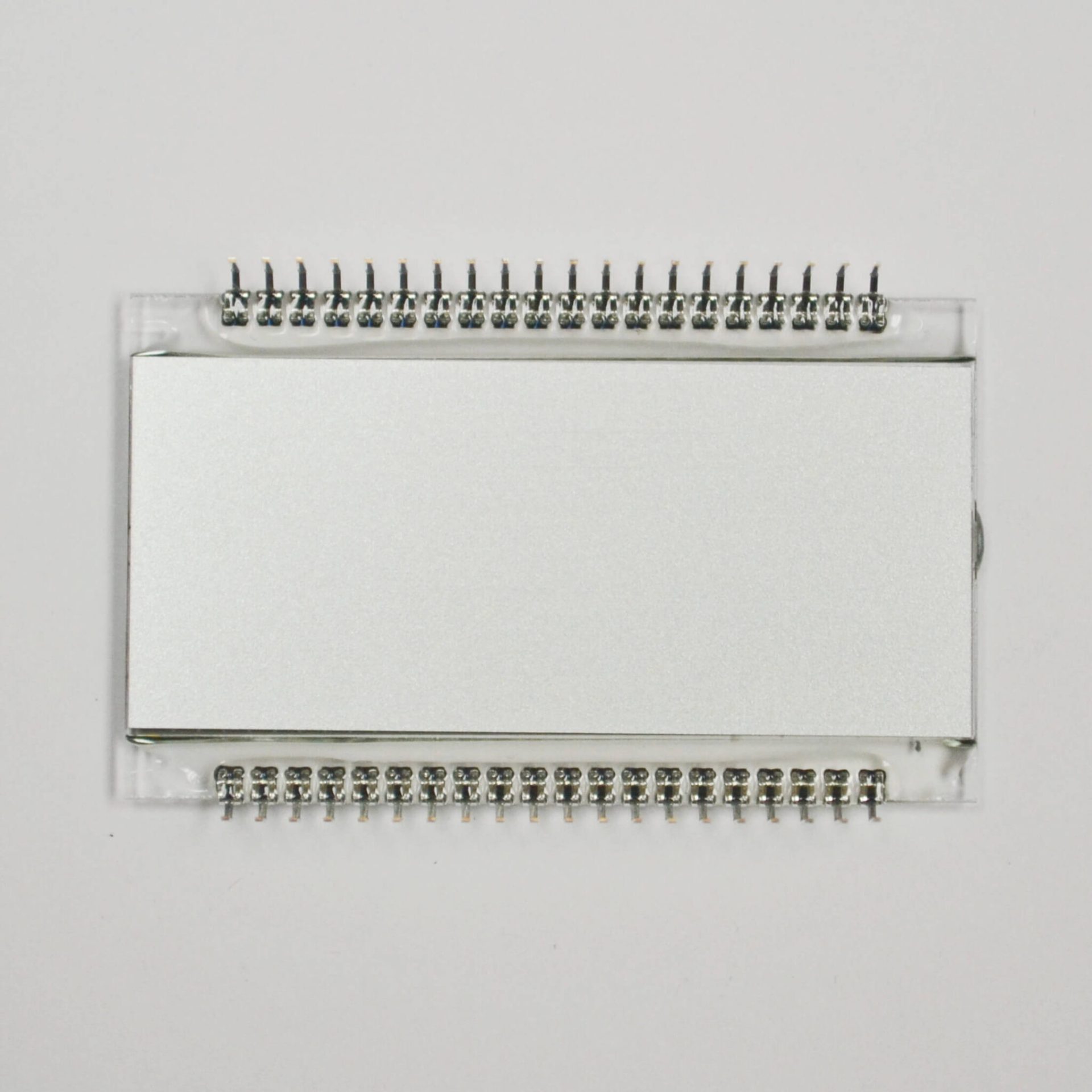

A simple TN LCD Glass Panel that can display 4 alphanumeric characters (7 segments each). This has a Pin Connection for easy mounting to a socket or for soldering it directly to the circuit board.
4 Digit LCD Glass Panel
The highest quality product at the lowest price.
- TN LCD Glass Panel
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- ROHS Compliant
Download Product References Below

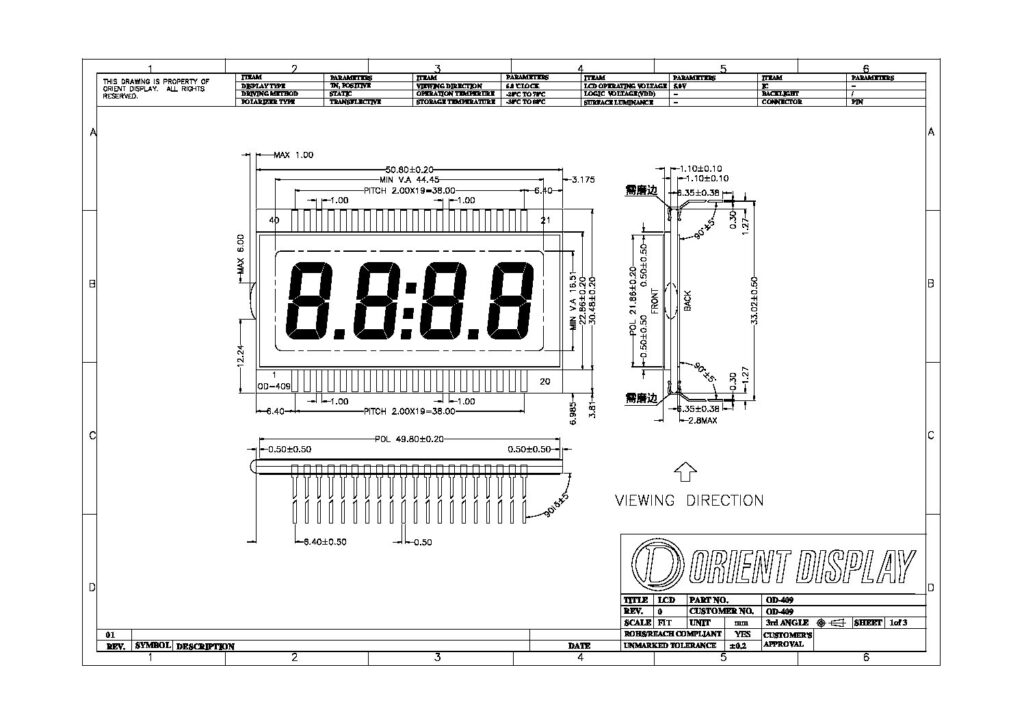

Product Datasheet: OD-409
| Model / Series Name | OD-409 |
| No. of Digitals | 4 |
| LCD Mode | TN Positive |
| Polarizer Type | Transflective |
| Glass Size WxH (mm) | 50.80×30.48 |
| View Area WxH (mm) | 44.45×16.51 |
| No of Segments (each digit) | 7 |
| Digital Height (mm) | 12.70 |
| Operating Voltage | 5V |
| Driver Method | / |
| Connector | Pin |
Please also check out our other products under this category – LCD Glass Panels. If none of these products meet your needs, we can customize it according to your technical specifications.
Please send your inquiries to info@orientdisplay.com
