7" TFT Full Control Platform, 800x480, with Resistive Touch Panel
7" TFT Full Control Platform, 800x480, with Resistive Touch Panel
HomeTFT DisplaysEmbedded LCD Display Modules 7″ Embedded TFT Full Control Platform, 800×480, with Resistive Touch Panel
Previous product
3.5" TFT, 320x240, 600 Nits, with Resistive Touch Panel
Back to products
Next product
2.4" TFT, 240x320, 460 Nits
2.4" TFT, 240x320, 460 Nits $15.75

7″ Embedded TFT Full Control Platform, 800×480, with Resistive Touch Panel

$64.96CONTACT FOR VOLUME PRICING

92 in stock

  • Diagonal Dimension: 7 Inch
  • Resolution: 800 x 480 pixels
  • Interface: RGB 24BITS
  • Luminance: 320 cd/m2
  • Viewing Direction: 12 o’clock
  • Touch Panel: Resistive

Pricing table

QuantityUnit Price
25-49$59.68
50-$54.39

Contact us for larger volume orders and any other enquiries.

Compare
Add to wishlist
SKU: ACN800480A00-7.0N12NSM-R Categories: TFT Displays Modules, Embedded LCD Display Modules, Command System
Share
Facebook Email linkedin

Description

ACN series provide a full control platform of TFT, it can be used the same as the monochrome LCDs.

  • 3V input
  • 8-line parallel MCU interface
  • 8080 or 6800 interface timing
  • Backlight brightness can be adjusted by outside PWM signal
  • 24 bits RGB
The highest quality product at the lowest price. Ships from the USA.
  • 7.0″ TFT, with full control platform, 800 x (RGB) x 480
  • Color / Medium Brightness TFT Module
  • Transmissive / Normal White / Resistive Touch Panel (RTP)
  • 12 o’clock Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant


Download Product References Below



Product Datasheet: ACN800480A00-7.0N12NSM-R
Product Video Tutorials
Model / Series Name ACN800480A00-7.0N12NSM-R
Diagonal Dimension (inch) 7.0
Dots WxH 800 x 480
Module Size WxHxT max (mm) 164.9 x 100 x 10.4
Display Mode Color TFT / Transmissive / Normal White
IC SSD1963
Interface Type 8-line parallel MCU
Logic Power Supply Voltage 3.3 V
Backlight White LED
Luminance 320 cd/m2
Touch Panel Resistive

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Additional information

Weight 2.04 lbs
Dimensions 100 × 164.9 × 10.4 mm
backlightcolor

White

diagonal-size

7.0

displaytype

Embedded LCD

polarizertype

Transmissive

resolution

800×480

touchpanel

Resistive Touch Panel

viewingdirection

12 o'clock

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “7″ Embedded TFT Full Control Platform, 800×480, with Resistive Touch Panel” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery

Related products

Compare
Close

3.5” TN TFT display with SPI interface, 320×240, Medium Brightness

Medium Brightness TFT Panels, Embedded LCD Display Modules, Color TFT, TFT Displays Modules
$33.40
  • Includes 1pc AFY320240B0-3.5N12NTM and 1pc AFY3.5NB-SPI-PCB01
  • Diagonal Dimension: 3.5 Inch
  • Resolution: 320 x 240 pixels
  • Interface: SPI
  • Luminance: 495 cd/m2
  • Viewing Direction: 12 o'clock
  • Touch Panel: None
Add to wishlist
Add to cart
Quick view
Compare
Close

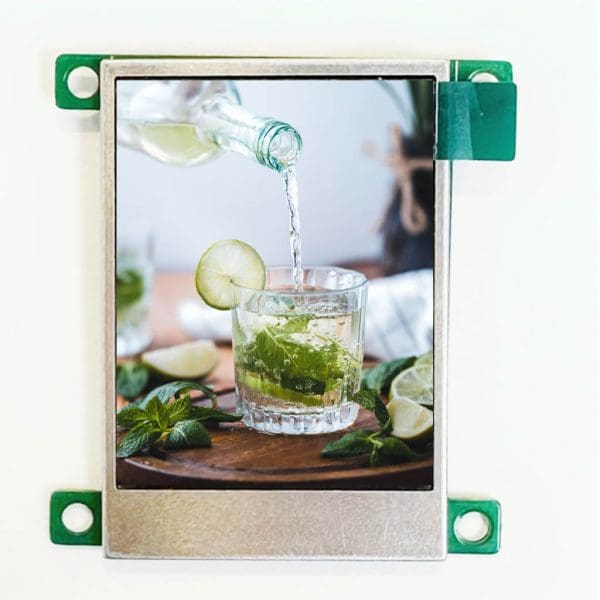

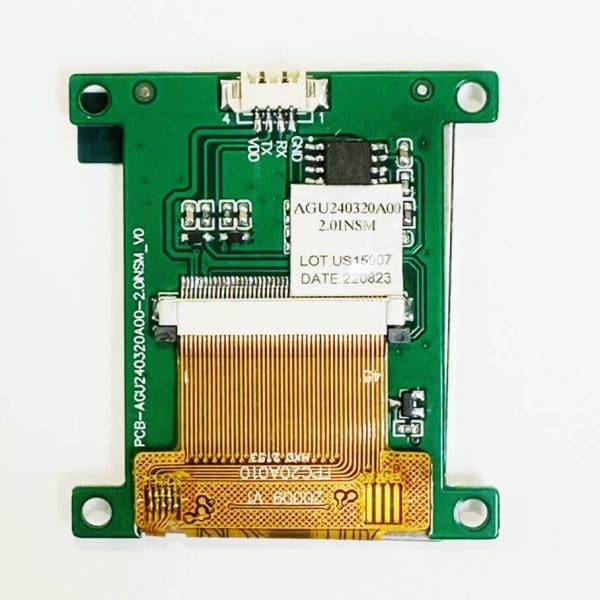

2.0” IPS TFT display with UART interface, 240×320, 480nits
