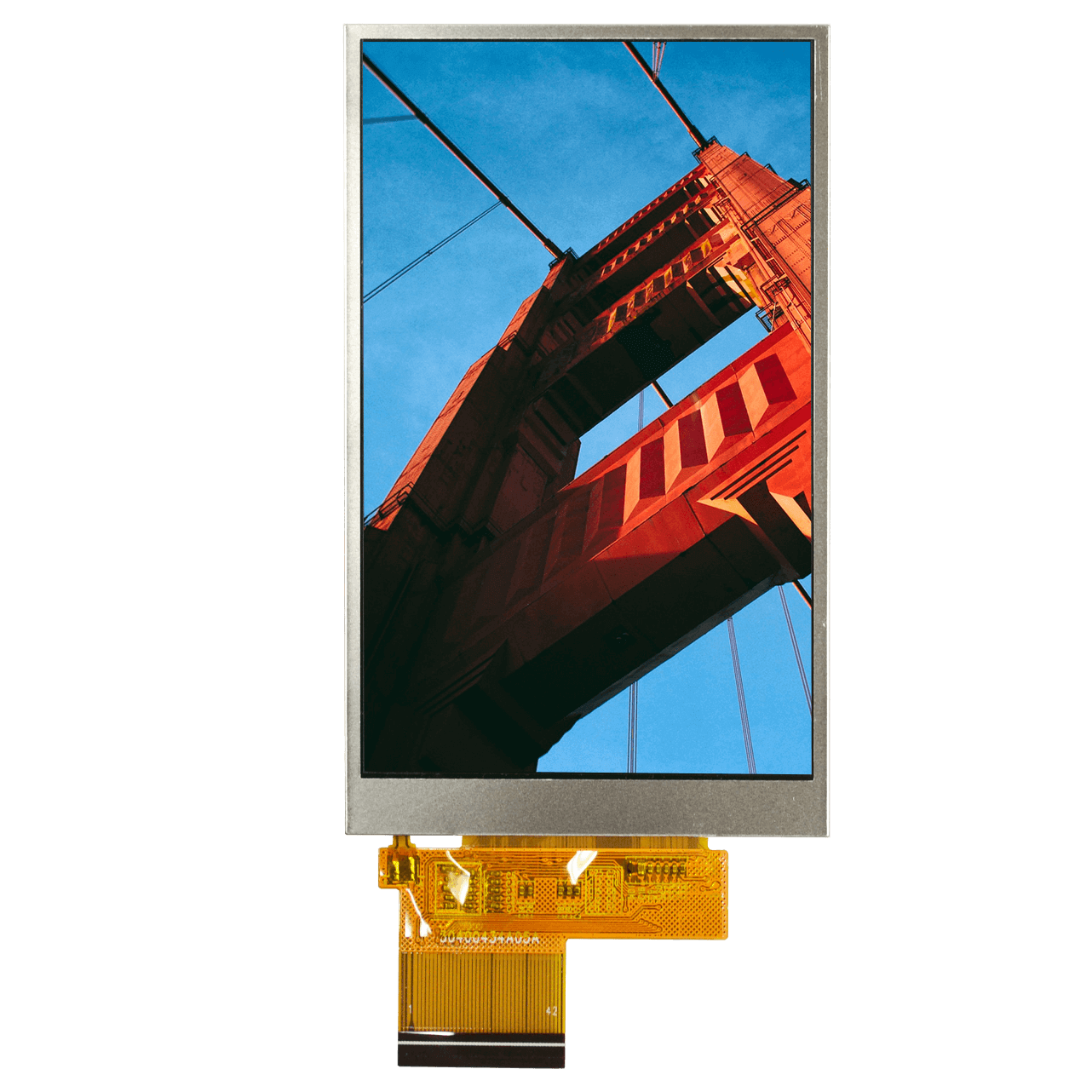

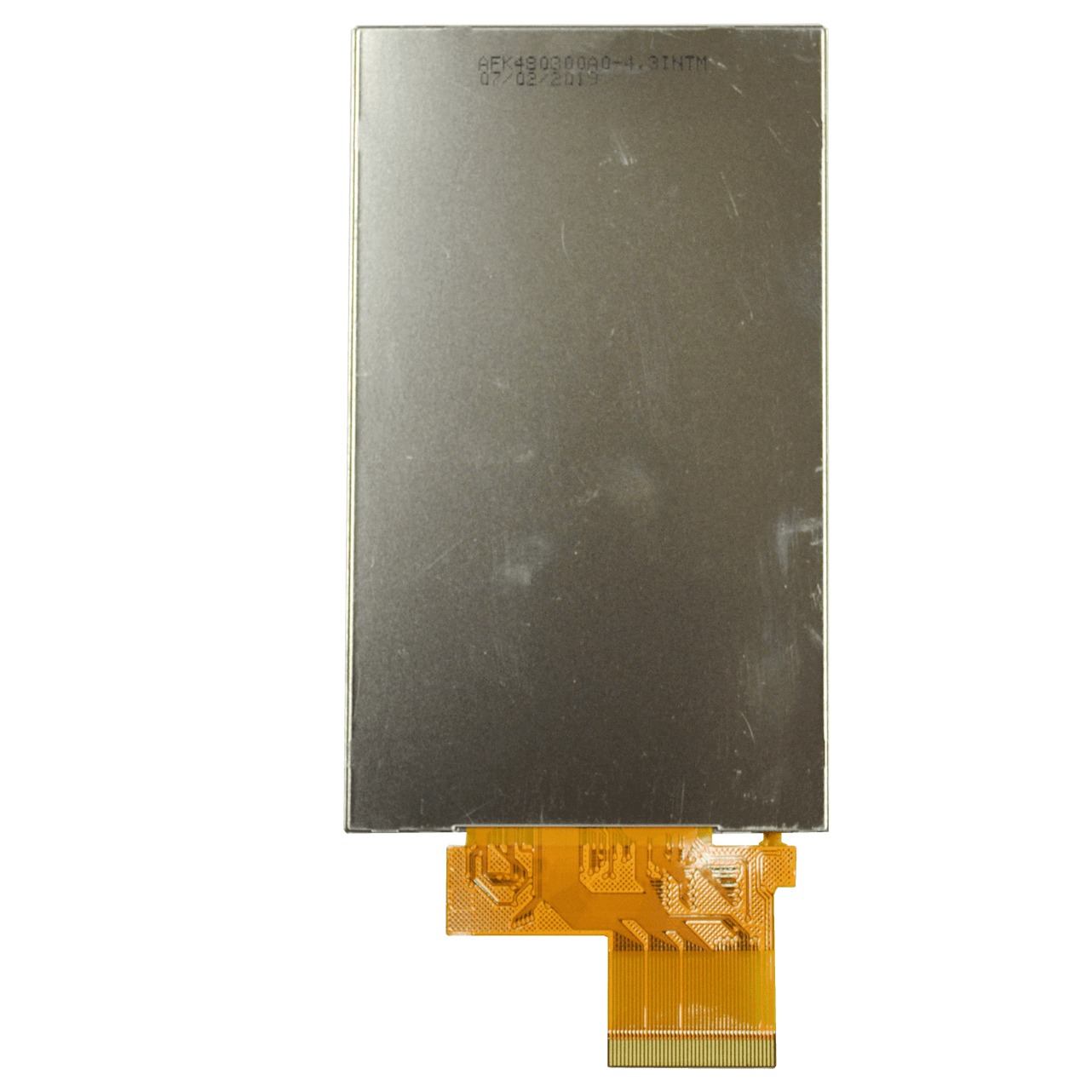

4.3” IPS TFT, 480×800, SPI+24 BIT RGB Interface, 350nits

98 in stock

Medium Brightness / Sunlight Readable IPS
Diagonal Dimension: 4.3 Inch
Resolution: 480 x 800 pixels
Interface: SPI+24 BIT RGB
Luminance: 350 cd/m²
Viewing Direction: ALL
Touch Panel: None

SKU: AFK480800A0-4.3INTM Categories: Medium Brightness TFT Panels, Color TFT, TFT Display Panels

Description

A simple 4.3″ Medium Brightness IPS Module, Transmissive / All Viewing Direction / Normal Black with 480 x (RGB) x 800 dots.

4.3” IPS TFT, 480×800, SPI+24 BIT RGB Interface

The highest quality product at the lowest price. Ships from the USA.

4.3″ IPS, 480 x (RGB) x 800

Medium Brightness / IPS

Transmissive / Normal Black

ALL Viewing Direction

Operating Temp: -20°C to 70°C

Storage Temp: -30°C to 80°C

ROHS Compliant

Download Product References Below

Product Datasheet: AFK480800A0-4.3INTM

Controller Datasheet: ILI9806E

Optional Accessory: TBD

Model / Series Name	AFK480800A0-4.3INTM
Diagonal Dimension (inch)	4.3
Dots WxH	480 x 800
Module Size WxHxT max (mm)	62.40105.402.15
Display Mode	IPS / Normal black / Transmissive / Anti-glare
IC	ILI9806E
Interface Type	SPI+24 BIT RGB Interface
Logic Power Supply Voltage	3.3V
Backlight	White
Luminance	350 cd/m²
Touch Panel	None

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

Additional information

Weight	0.062 lbs
Dimensions	134 × 62 × 2 mm
backlightcolor	White
diagonal-size	4.3
displaytype	TFT – IPS
polarizertype	Transmissive
resolution	480×800
touchpanel	None
viewingdirection	All
interface	RGB
