HomeTFT DisplaysColor TFT 3.5” TN TFT, 320×240, 24BIT RGB+SPI Interface, 760nits
Previous product
4.3'' IPS TFT, 480x800, SPI+24 BIT RGB Interface, 350nits $27.99
Back to products
Next product
2.4” IPS TFT, 240x320, MCU Interface, 300nits $16.23

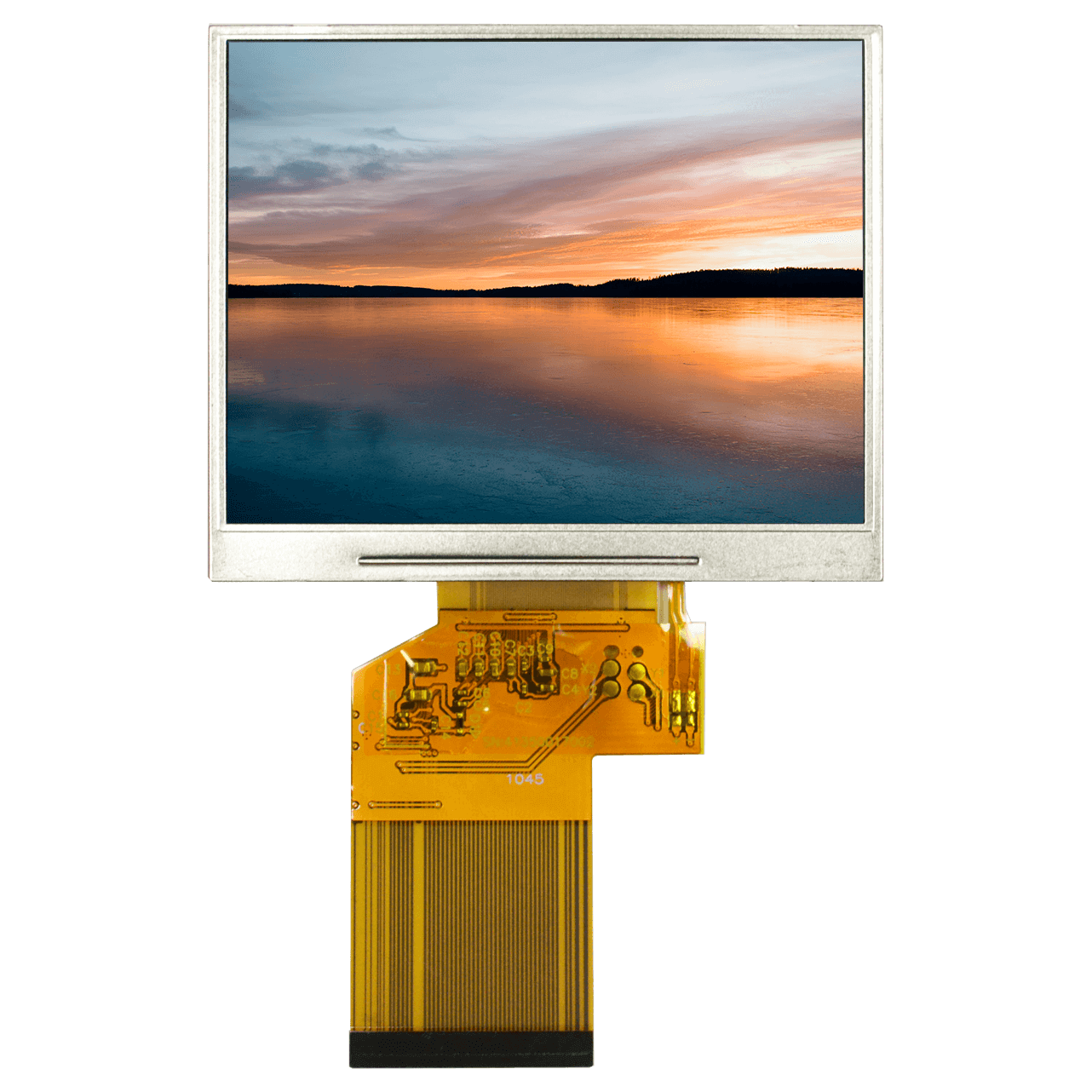

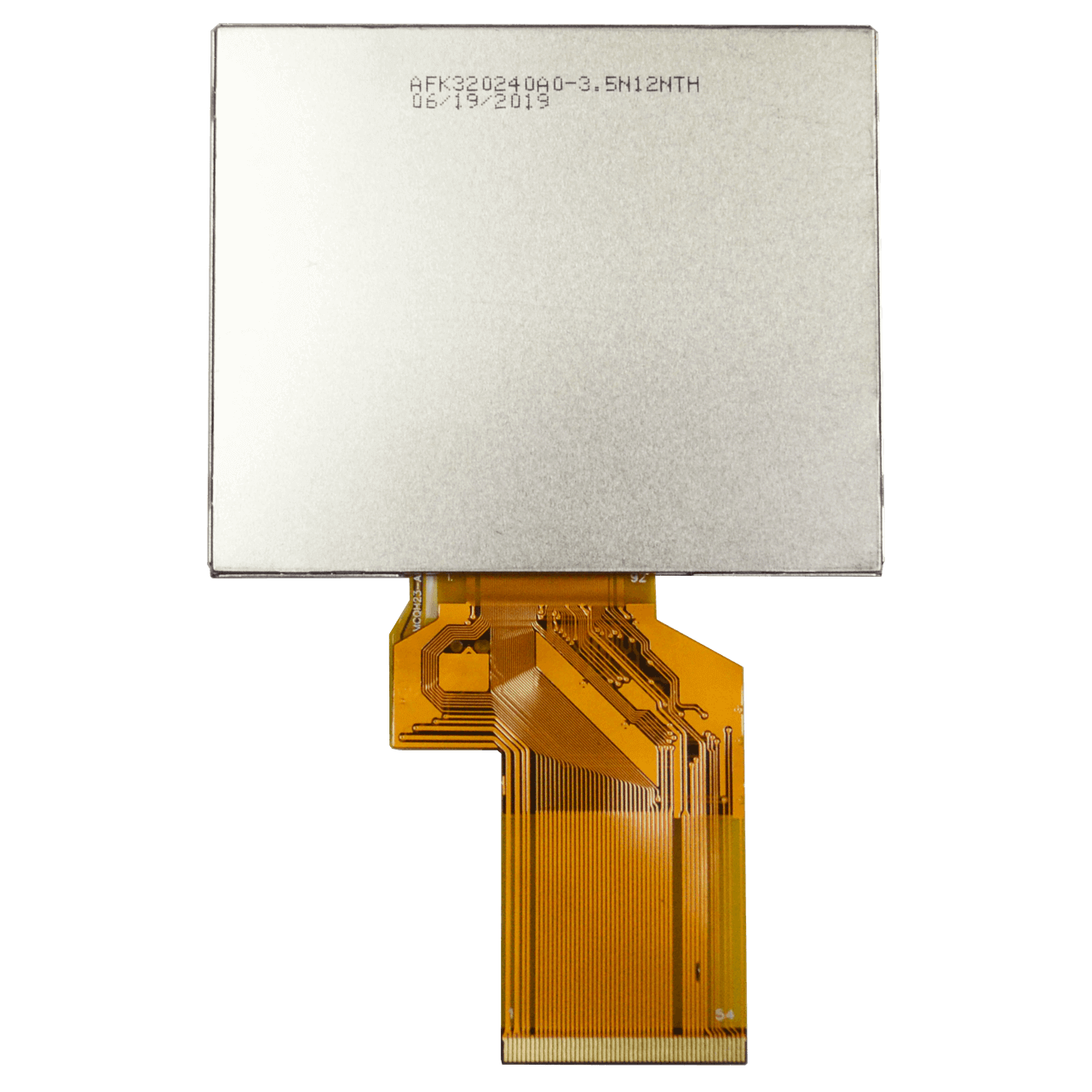

3.5” TN TFT, 320×240, 24BIT RGB+SPI Interface, 760nits

$18.75CONTACT FOR VOLUME PRICING

112 in stock

  • High Brightness / TN
  • Diagonal Dimension: 3.5 Inch
  • Resolution: 320 x 240 pixels
  • Interface: 24BIT RGB+SPI
  • Luminance: 760 cd/m2
  • Viewing Direction: 12 o’clock
  • Touch Panel: None
Compare
Add to wishlist
SKU: AFK320240A0-3.5N12NTH Categories: Color TFT, High Brightness TFT Panels
Share
Facebook Email linkedin

Description

A simple 3.5″ High Brightness  TN Module, Transmissive / 12 o’clock Direction  with 320 x (RGB) x 240 dots.

3.5 TN TFT, 320×240, 24BIT RGB+SPI Interface, 760nits

The highest quality product at the lowest price. Ships from the USA.
  • 3.5″ TN, 320 x (RGB) x 240
  • High Brightness / TN
  • Transmissive
  • 12 o’clock Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant

Download Product References Below
Product Datasheet: AFK320240A0-3.5N12NTH
Controller Datasheet: HX8238-D
Optional Accessory: TBD
Model / Series Name AFK320240A0-3.5N12NTH
Diagonal Dimension (inch) 3.5
Dots WxH 320 x 240
Module Size WxHxT max (mm) 76.90*63.90*3.20
Display Mode TN / Normal white / Transmissive / Anti-glare
IC HX8238-D
Interface Type 24BIT RGB+SPI Interface Interface
Logic Power Supply Voltage 3.3V
Backlight White
Luminance 760 cd/m2
Touch Panel None

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

    Additional information

    Weight 0.072 lbs
    Dimensions 118 × 77 × 3 mm
    backlightcolor

    White

    diagonal-size

    3.5

    displaytype

    TFT – TN

    polarizertype

    Transmissive

    resolution

    320×240

    touchpanel

    None

    viewingdirection

    12 o'clock

    interface

    RGB, SPI
