1.54″ Arduino IPS TFT, 240×240, 300 Nits, 4-wire SPI Interface
$10.50CONTACT FOR VOLUME PRICING
273 in stock
- Medium Brightness / IPS display
- Diagonal Dimension: 1.54 Inch
- Resolution: 240 x 240 pixels
- Interface: 4-wire SPI + Arduino Compatible
- Luminance: 300 cd/m2
- Viewing Direction: All
- Touch Panel: None
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $9.38 |
| 50-99 | $8.26 |
| 100-149 | $7.69 |
| 150-199 | $7.21 |
| 200- | $6.73 |
Contact us for larger volume orders and any other enquiries.
Description
A simple Arduino IPS TFT 1.54″ Medium Brightness / IPS Mode, Transmissive / All Viewing Direction with 240 x 240 dots, 4-wire SPI Interface.
The highest quality product at the lowest price. Ships from the USA.
- 1.54″ IPS, 240 x 240
- Medium Brightness / IPS
- Transmissive
- All Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below

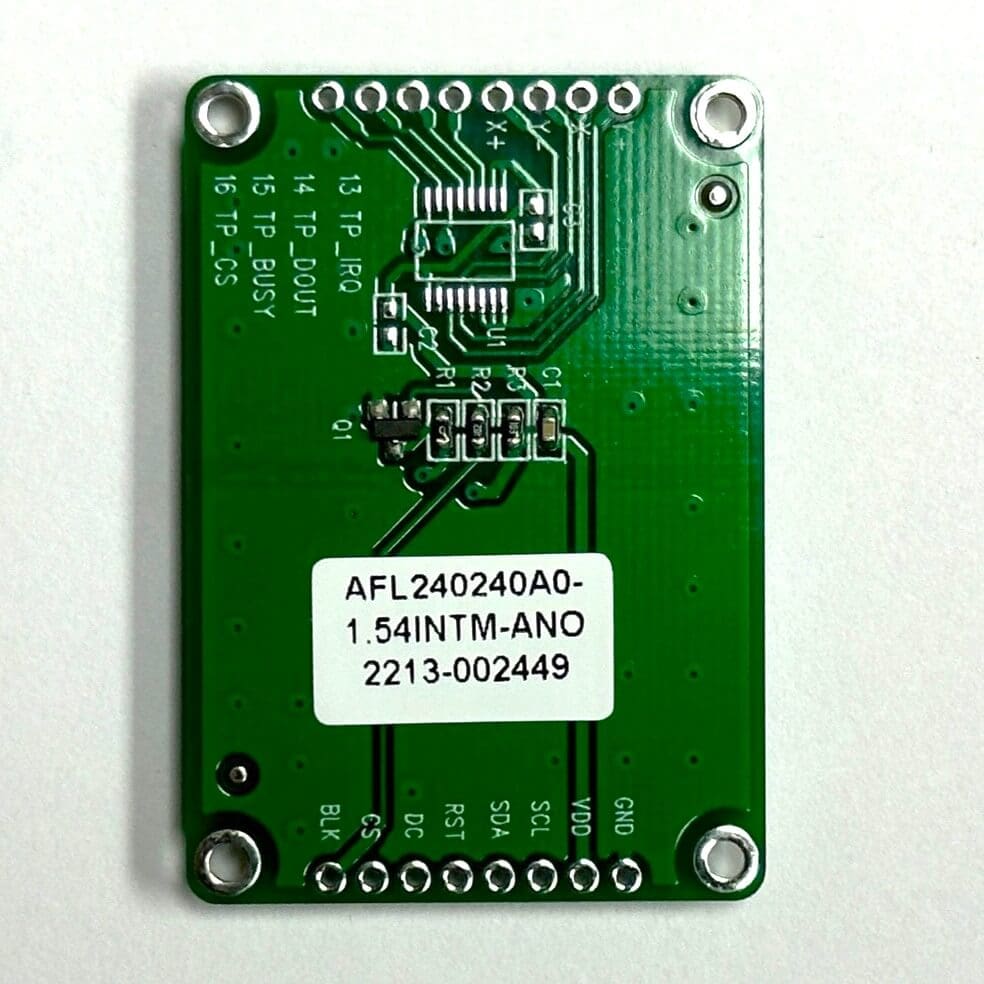

Product Datasheet: AFL240240A0-1.54INTM-ANO
Controller Datasheet: ST7789V
Optional Accessory: TBD
| Model / Series Name | AFL240240A0-1.54INTM-ANO |
| Diagonal Dimension (Inches) | 1.54 |
| Dots WxH | 240 x 240 |
| Module Size WxHxD max (mm) | 35.0 x 50.0 x 5.0 |
| Display Mode | IPS / Transmissive |
| IC | ST7789V |
| Interface Type | 4-wire SPI + Compatible Arduino |
| Logic Power Supply Voltage | 3.3 |
| Backlight | LED, WHITE |
| Luminance | 300 cd/m2 |
| Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
| Weight | 0.009 lbs |
|---|---|
| Dimensions | 33 × 28 × 13 mm |
| backlightcolor | |
| Diagonal Size (Inch) | 1.54 |
| displaytype | |
| polarizertype | |
| resolution | |
| Touch Panel | None |
| viewingdirection |
