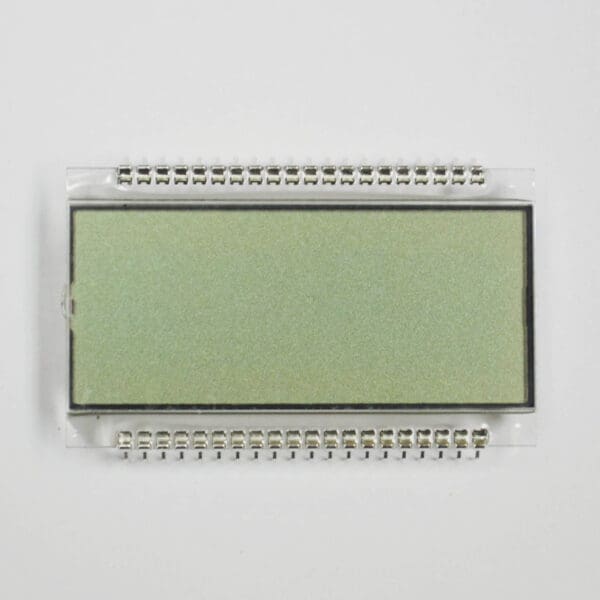

OD-893 (8 Digit LCD Glass Panel)
$5.00CONTACT FOR VOLUME PRICING
761 in stock
- TN LCD Glass Panel
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -30°C to 80°C
- Storage Temp: -40°C to 80°C
- Transflective Polarizer
- ROHS Compliant
Description
A simple TN LCD Glass Panel that can display 8 alphanumeric characters (14 segments each). This has a Pin Connection for easy mounting to a socket or for soldering it directly to the circuit board.
8 Digit LCD Glass Panel OD-893
The highest quality product(OD-893) at the lowest price.
- TN LCD Glass Panel
- Positive Display
- 6 o’clock Viewing Direction
- Operating Temp: -30°C to 80°C
- Storage Temp: -40°C to 80°C
- Transflective Polarizer
- ROHS Compliant
Download Product References Below
Product Datasheet: OD-893
| Model / Series Name | OD-893 |
| No. of Digitals | 8 |
| LCD Mode | TN Positive |
| Polarizer Type | Transflective |
| Glass Size WxH (mm) | 70 x 25 |
| View Area WxH (mm) | 64 x 12.5 |
| No of Segments (each digit) | 14 |
| Digital Height (mm) | 9 |
| Operating Voltage | 4.7V |
| Driver Method | 1/4 Duty, 1/3 Bias |
| Connector | Pin |
Please also check out our other products under this category – LCD Glass Panels. If none of these products meet your needs, we can customize it according to your technical specifications.
Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.21 lbs |
|---|---|
| Dimensions | 25.0 × 70.00 × 0.1 mm |
| displaymode | |
| displaytype | |
| polarizertype |
Reviews (0)
Shipping & Delivery
Related products
AMC0802BR-B-G6WFDY (8×2 Character LCD Module)
- Number of Characters: 8 x 2
- LCD mode: STN Positive Gray
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB

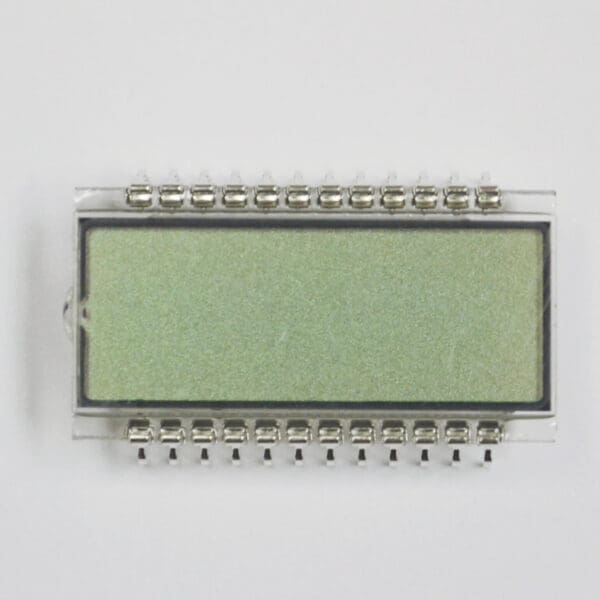

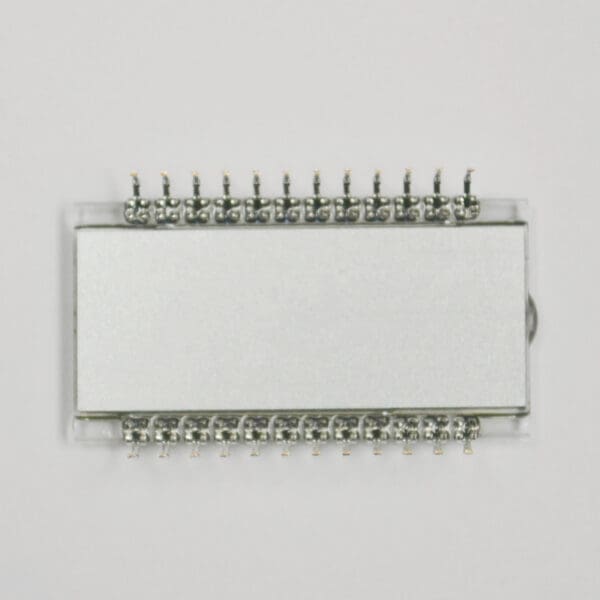

OD-302 (3 Digit LCD Glass Panel)
