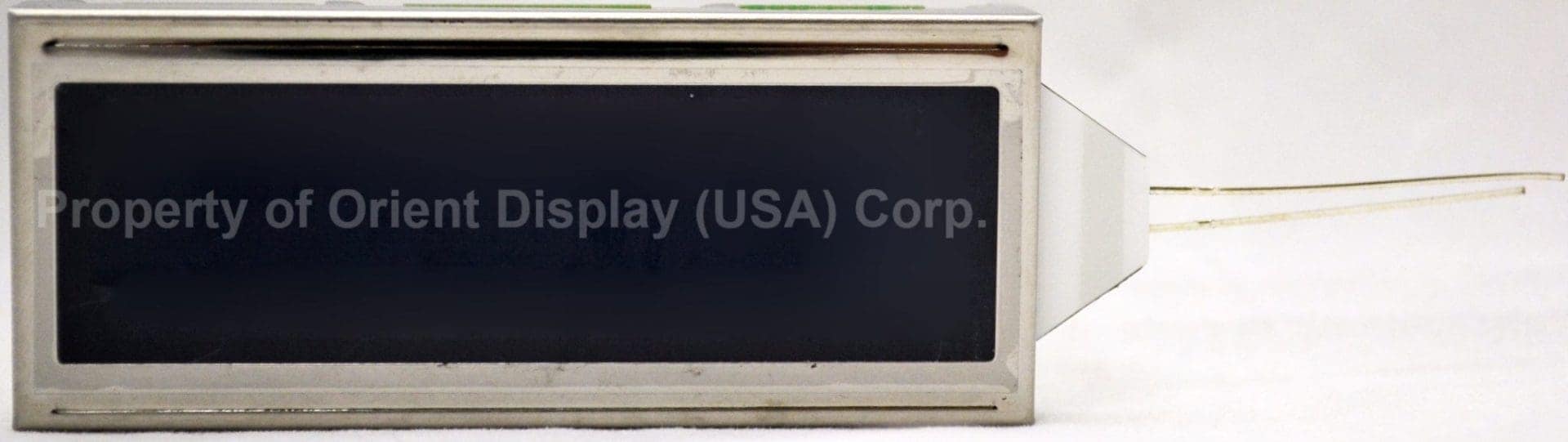

AMG12232DR-B-B6WTDW (2.2″ 122×32 Graphic LCD Module)
$11.38CONTACT FOR VOLUME PRICING
27 in stock
- Diagonal Dimension: 2.2 Inch
- Resolution: 122 x 32 pixels
- LCD mode: STN Negative Blue
- Polarizer: Transmissive
- Backlight: White LED
- White on Blue Background
- Connection: Pin
- IC Package Type: COB
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $10.86 |
| 50-99 | $10.34 |
| 100-149 | $9.87 |
| 150-199 | $9.58 |
| 200- | $9.29 |
Contact us for larger volume orders and any other enquiries.
Description

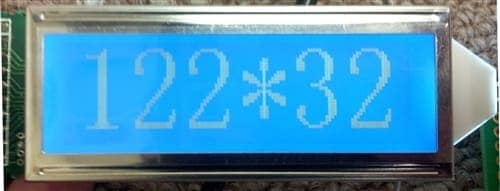

A 2.2″ monochrome(AMG12232DR-B-B6WTDW), 122×32 dot matrix, COB (Chip on Board) Graphic LCD Module in STN Negative Blue LCD Mode with White LED Backlight. It has a six O’clock viewing direction and a transmissive polarizer suitable for darker environment. This product is assembled Chip On board with 1/32 Duty and a Controller IC SED1520 or equivalent. The interface type is Parallel. This is an ROHS compliant product manufactured with ISO standards and procedures.
AMG12232DR-B-B6WTDW
The highest quality product at the lowest price.
- STN Negative Blue
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transmissive Polarizer
- White LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant
Download Product References Below

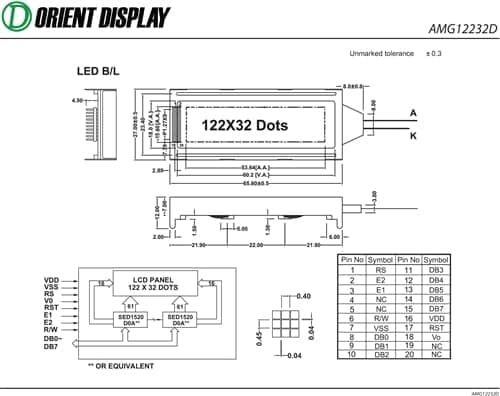

Product Datasheet: AMG12232D
Controller Datasheet: SED1520
| Model/Series Name | AMG12232D |
| Dots/ Resolution | 122×32 |
| LCD Mode | STN Negative Blue |
| Polarizer Type | Transmissive |
| Diagonal Dimension (inches) | 2.2 |
| Module Size WxHxT max(mm) | 65.8 x 27.0 x 12.0 |
| View Area WxH (mm) | 60.2 x 18.0 |
| Dot Size WxH (mm) | 0.45 x 0.40 |
| Backlight | White LED |
| Controller | SED1520 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
