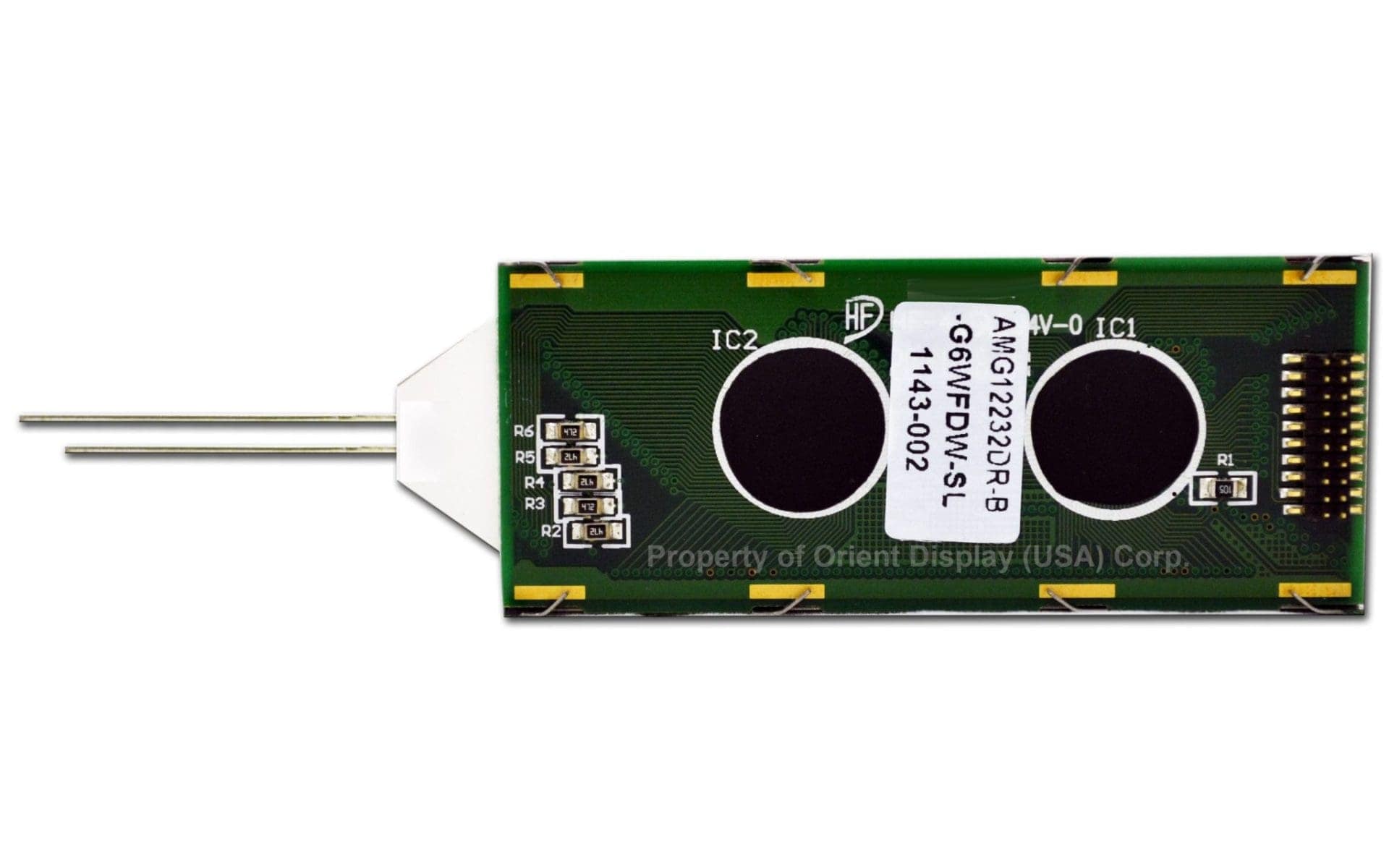

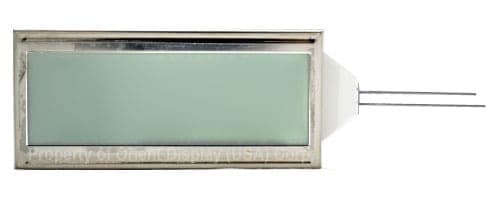

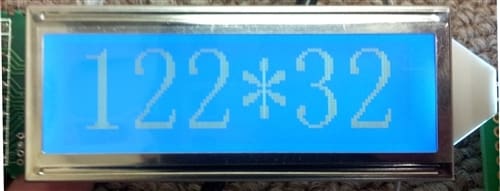

AMG12232DR-B-G6WFDW (2.2″ 122×32 Graphic LCD Module)
$11.38CONTACT FOR VOLUME PRICING
38 in stock
- Diagonal Dimension: 2.2 Inch
- Resolution: 122 x 32 pixels
- LCD mode: STN Positive Gray
- Polarizer: Transflective
- Backlight: White LED
- Dark on Gray Background
- Connection: Pin
- IC Package Type: COB
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $10.86 |
| 50-99 | $10.34 |
| 100-149 | $9.87 |
| 150-199 | $9.58 |
| 200- | $9.29 |
Contact us for larger volume orders and any other enquiries.
Description
A 2.2″ monochrome, 122×32 dot matrix, COB (Chip on Board) Graphic LCD Module 122×32 in STN Negative Blue LCD Mode with White LED Backlight. It has a six O’clock viewing direction and a transflective polarizer suitable for indoor and outdoor usage. This product is assembled Chip On board with 1/32 Duty and a Controller IC SED1520 or equivalent. The interface type is Parallel. This is an ROHS compliant product manufactured with ISO standards and procedures.
2.2 Inch Graphic LCD Module 122×32
The highest quality product at the lowest price.
- STN Positive Gray
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Tranflective Polarizer
- White LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant
Download Product References Below
Product Datasheet: AMG12232D
Controller Datasheet: SED1520
| Model/Series Name | AMG12232D |
| Dots/ Resolution | 122×32 |
| LCD Mode | STN Positive Gray |
| Polarizer Type | Transflective |
| Diagonal Dimension (inches) | 2.2 |
| Module Size WxHxT max(mm) | 65.8 x 27.0 x 12.0 |
| View Area WxH (mm) | 60.2 x 18.0 |
| Dot Size WxH (mm) | 0.45 x 0.40 |
| Backlight | White LED |
| Controller | SED1520 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.21 lbs |
|---|---|
| Dimensions | 27 × 65.8 × 12 mm |
| backlightcolor | |
| diagonal-size | |
| displaymode | |
| displaytype | |
| polarizertype | |
| resolution | |
| touchpanel | |
| viewingdirection |
