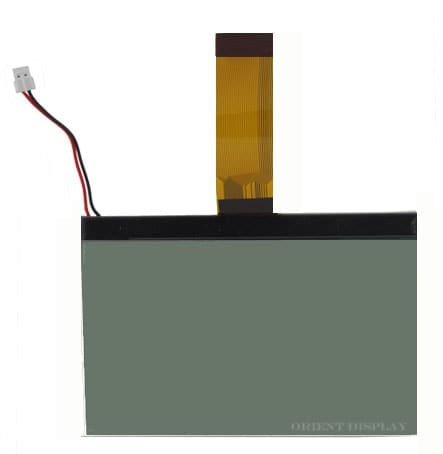

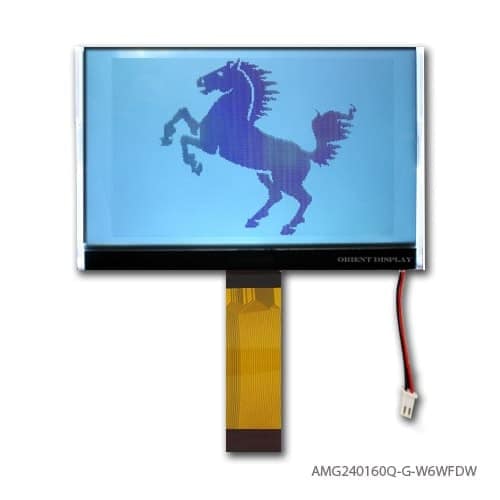

AMG240160Q-G-W6WFDW (3.9″ 240×160 COG Graphic LCD Module)
$21.52CONTACT FOR VOLUME PRICING
331 in stock
- Diagonal Dimension: 2.8 Inch
- Resolution: 282 x 128 pixels
- LCD mode: FSTN Positive
- Polarizer: Transflective
- Backlight: White LED
- Black on Gray Background
- Connection: FPC
- IC Package Type: COG
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $20.58 |
| 50-99 | $19.63 |
| 100-149 | $18.78 |
| 150-199 | $18.26 |
| 200- | $17.74 |
Contact us for larger volume orders and any other enquiries.
Description
A 3.9″ monochrome, 240×160 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product is assembled chip on glass with 1/160 Duty cycle and 1/12 Bias. This LCD uses controller IC UC1698 or equivalent. This is an ROHS compliant product manufactured with ISO standards and procedures.
AMG240160Q 240×160 COG Graphic LCD module
The highest quality product at the lowest price.
- FSTN Positive
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- White LED Backlight
- COG Type (Chip on Glass)
- ROHS Compliant
Download Product References Below
Product Datasheet: AMG240160Q-G
Controller Datasheet: UC1698
Product Demo (Video): AMG240160Q-G-W6WFDW
Controller Example Codes: AMG240160Q-G-W6WFDW Display Codes

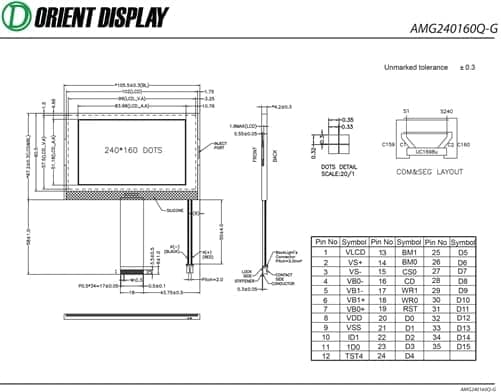

| Model/Series Name | AMG240160Q-G |
| Dots/ Resolution | 240 x 160 |
| LCD Mode | FSTN Positive |
| Polarizer Type | Transflective |
| Diagonal Dimension (inches) | 3.9 |
| Module Size WxHxT max(mm) | 105.5 x 67.2 x 4.2 |
| View Area WxH (mm) | 99.0 x 57.5 |
| Dot Size WxH (mm) | 0.33 x 0.30 |
| Dot Pitch WxH (mm) | 0.35 x 0.32 |
| Backlight | White LED |
| Controller | UC1698 or equivalent |
| LCD Assembly | COG (Chip on Glass) |
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.42 lbs |
|---|---|
| Dimensions | 67.2 × 105.5 × 4.2 mm |
| backlightcolor | |
| diagonal-size | |
| displaymode | |
| displaytype | |
| polarizertype | |
| resolution | |
| touchpanel | |
| viewingdirection |
Reviews (0)
Shipping & Delivery
Related products

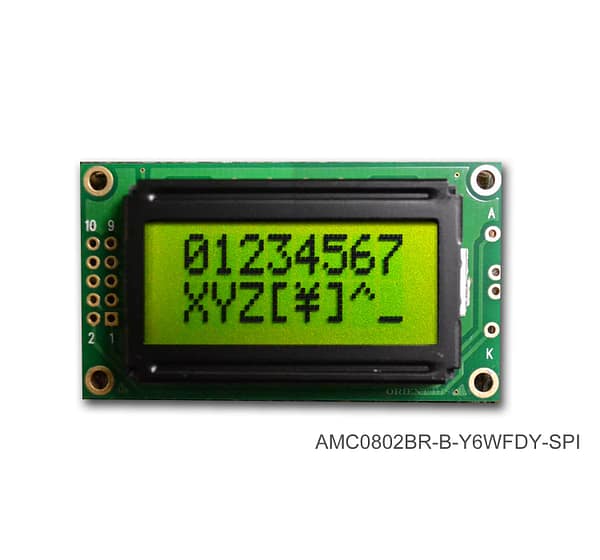

AMC0802BR-B-Y6WFDY (8×2 Character LCD Module)
- Number of Characters: 8 x 2
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
AMG24064AR-M-Y6WFDY-NV (5.2″ 240×64 Graphic LCD Module)
- Diagonal Dimension: 5.2 Inch
- Resolution: 240 x 64 pixels
- LCD mode: STN Positive
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Black on Gray Background
- Connection: FPC
- IC Package Type: COB

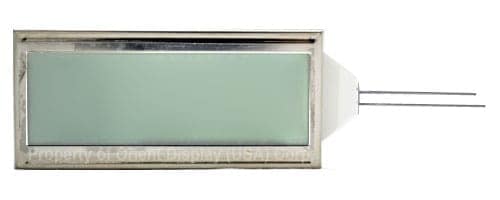

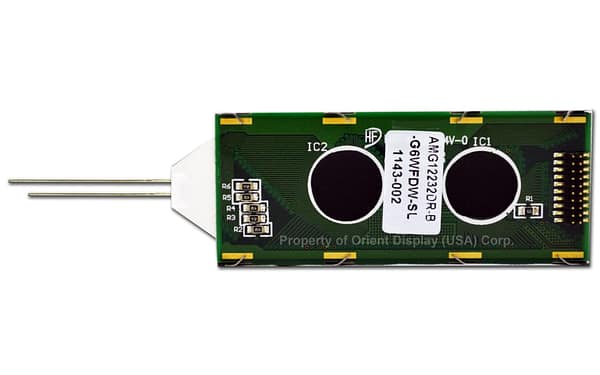

AMG12232DR-B-G6WFDW (2.2″ 122×32 Graphic LCD Module)
- Diagonal Dimension: 2.2 Inch
- Resolution: 122 x 32 pixels
- LCD mode: STN Positive Gray
- Polarizer: Transflective
- Backlight: White LED
- Dark on Gray Background
- Connection: Pin
- IC Package Type: COB
AMC0802BR-B-G6WFDY (8×2 Character LCD Module)
- Number of Characters: 8 x 2
- LCD mode: STN Positive Gray
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
AMG19248AR-B-Y6WFDY (3.8″ 192×48 Graphic LCD Module)
- Diagonal Dimension: 3.8 Inch
- Resolution: 192 x 48 pixels
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark on Yellow Green Background
- Connection: Pin
- IC Package Type: COB
AMG12232DR-B-B6WTDW (2.2″ 122×32 Graphic LCD Module)
- Diagonal Dimension: 2.2 Inch
- Resolution: 122 x 32 pixels
- LCD mode: STN Negative Blue
- Polarizer: Transmissive
- Backlight: White LED
- White on Blue Background
- Connection: Pin
- IC Package Type: COB

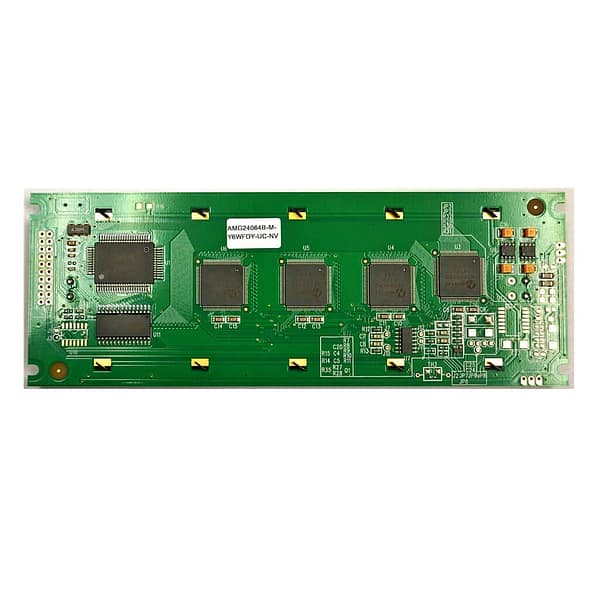

AMG24064BR-M-Y6WFDY-UC-NV (5.2″ 240×64 Graphic LCD Module)
