AMC0802BR-B-G6WFDW (8×2 Character LCD Module)
$5.69CONTACT FOR VOLUME PRICING
93 in stock
- Number of Characters: 8 x 2
- LCD mode: STN Positive Gray
- Polarizer: Transflective
- Backlight: White LED
- Blue Character on Gray Background
- IC Package Type: COB
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $5.05 |
| 50-99 | $4.4 |
| 100-149 | $4.06 |
| 150-199 | $3.79 |
| 200- | $3.51 |
Contact us for larger volume orders and any other enquiries.
Description

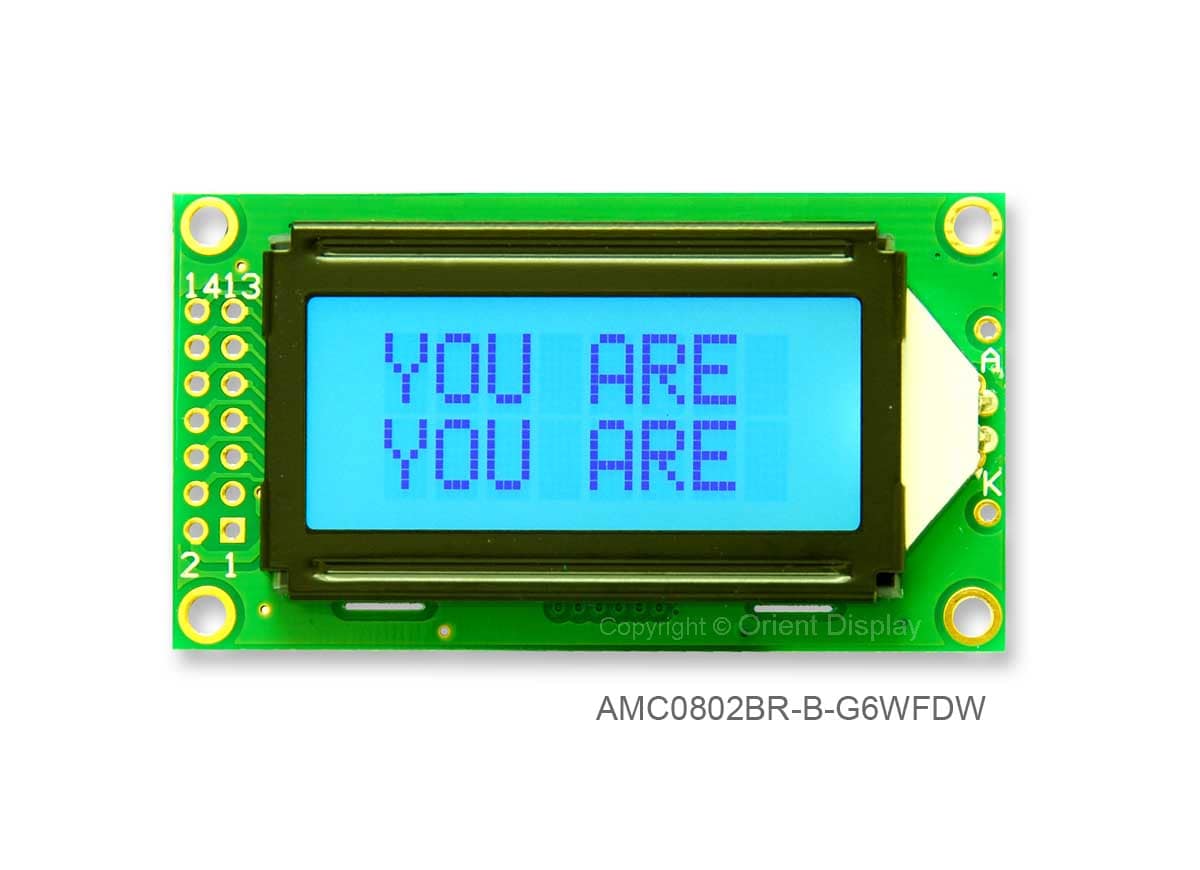

Character LCD module AMC0802BR-B-G6WFDW
An 8×2 dot matrix Character LCD Module AMC0802BR-B-G6WFDW display in STN Positive Gray LCD Mode, Six O’clock viewing direction, Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a transflective polarizer suitable for indoor and outdoor usage. AMC0802BR-B-G6WFDW is assembled Chip On board with 1/16 Duty and a Controller IC S6A0069 or equivalent. The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.
8×2 Character LCD Module AMC0802BR-B-G6WFDW
The highest quality product at the lowest price.
- STN Positive Gray
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- White LED Backlight
- COB Type (Chip on Board)
- ROHS Compliant

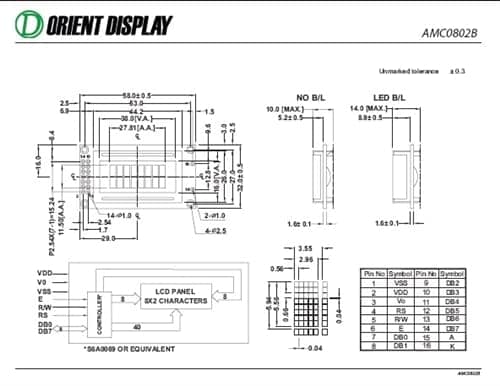

| Model/Series Name | AMC0802B |
| Characters Displayed x Lines | 8 x 2 |
| LCD Mode | STN Positive Gray |
| Polarizer Type | Transflective |
| Module Size WxHxT max(mm) | 58.0 x 32.0 x 14.0 |
| View Area WxH (mm) | 38.0 x 16.0 |
| Character Size WxH (mm) | 2.96 x 5.56 |
| Back-light | White LED |
| Controller | S6A0069 or equivalent |
| Interface Type | Parallel |
| LCD Assembly | COB (Chip on Board) |
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Please send your inquiries to info@orientdisplay.com
Check Also: OD-204.
Additional information
| Weight | 0.27 lbs |
|---|---|
| Dimensions | 32 × 58 × 14 mm |
| backlightcolor | |
| characterxlines | |
| displaymode | |
| displaytype | |
| polarizertype | |
| touchpanel | |
| viewingdirection |
Reviews (0)
Shipping & Delivery
Related products
AMC1602AR-B-B6WTDW-I2C (16×2 Character LCD Module – I2C Interface)
- Number of Characters: 16 x 2
- LCD mode: STN Negative Blue
- Polarizer: Transmissive
- Backlight: White LED
- White Character on Blue Background
- IC Package Type: COB
AMC1601AR-B-Y6NFDY (16×1 Character LCD Module)
- Number of Characters: 16 x 1
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB

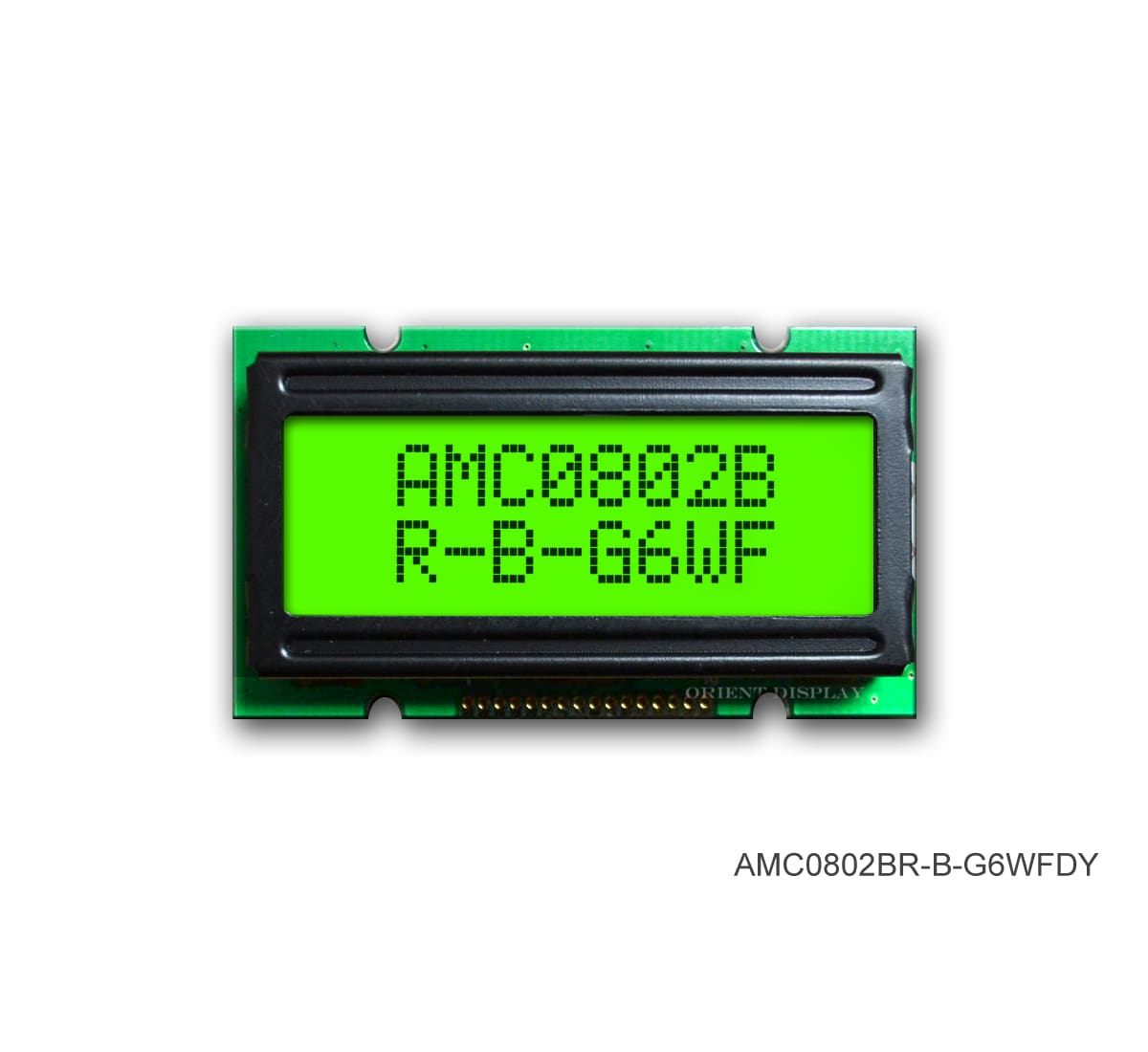

AMC0802BR-B-G6WFDY (8×2 Character LCD Module)
