HomeTFT DisplaysTFT Display PanelsMedium Brightness TFT Panels 2.8” TN TFT display with UART interface, 240×320, 460nits
Previous product
2.4'' TN TFT display with UART interface, 240x320, 370nits, with Resistive Touch Panel $21.34
Back to products
Next product
2.8'' TN TFT display with UART interface, 240x320, 370nits, with Resistive Touch Panel $24.21

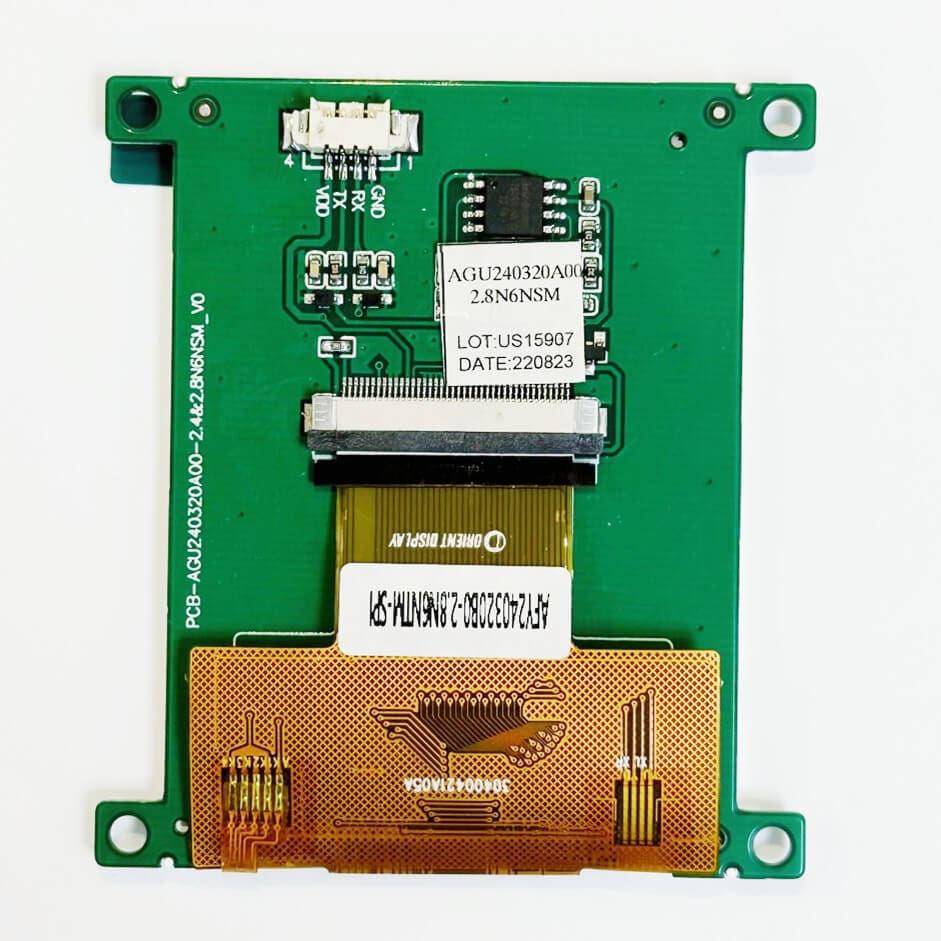

2.8” TN TFT display with UART interface, 240×320, 460nits

$21.07CONTACT FOR VOLUME PRICING

9 in stock

  • Diagonal Dimension: 2.8 Inch
  • Resolution: 240 x 320 pixels
  • Luminance: 460cd/m2
  • Viewing Direction: 6 O’clock
  • Touch Panel: None
  • Interface: UART
Compare
Add to wishlist
SKU: AGU240320A00-2.8N6NSM Categories: Medium Brightness TFT Panels, Color TFT, Embedded TFT Modules, AGU, AGN series UART Interface
Share
Facebook Email linkedin

Description

2.8″ TN TFT Display with UART interface, 240×320, Full Color / Normal Brightness TFT Module, Transmissive.

2.8 Inch TN TFT Display with UART Interface, 240×320 resolution

The highest quality product at the lowest price. Ships from the USA.
  • 2.8″ TN TFT, 240 x 320 with UART interface
  • Full Color / Medium Brightness TFT Module
  • 6 O’clock Viewing Direction
  • Transmissive
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant
Download Product References Below
Drawing: AGU240320A00-2.8N6NSM
Controller Datasheet: ILI9341V
TFT Datasheet: AFY240320B0-2.8N6NTM-SPI

Model / Series Name AGU240320A00-2.8N6NSM
Diagonal Dimension (inch) 2.8
Dots WxH 240 x 320
Module Size WxHxD max (mm) 62.00 * 69.20 * 7.77mm (PCB)
Display Mode TN TFT / Transmissive / Normal White
IC ILI9341V
Interface Type UART interface
Logic Power Supply Voltage 3.3V
Backlight White LED
Luminance 460 cd/m2
Touch Panel None

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

    Additional information

    Weight 0.015 lbs
    Dimensions 34 × 43 × 3 mm
    backlightcolor

    White

    diagonal-size

    2.8

    displaytype

    TFT – IPS

    polarizertype

    Transmissive

    touchpanel

    None

    viewingdirection

    6 o'clock

    interface

    UART
