HomeTFT DisplaysColor TFT 5.0″ TFT, 800×480, High Brightness 1000 Nits
Previous product
7.0" TFT, 800x480, High Brightness 1000 Nits $38.00
Back to products
Next product
5.0" IPS TFT, 720x1280, All Viewing Angle, Medium Brightness, MIPI Interface $30.54

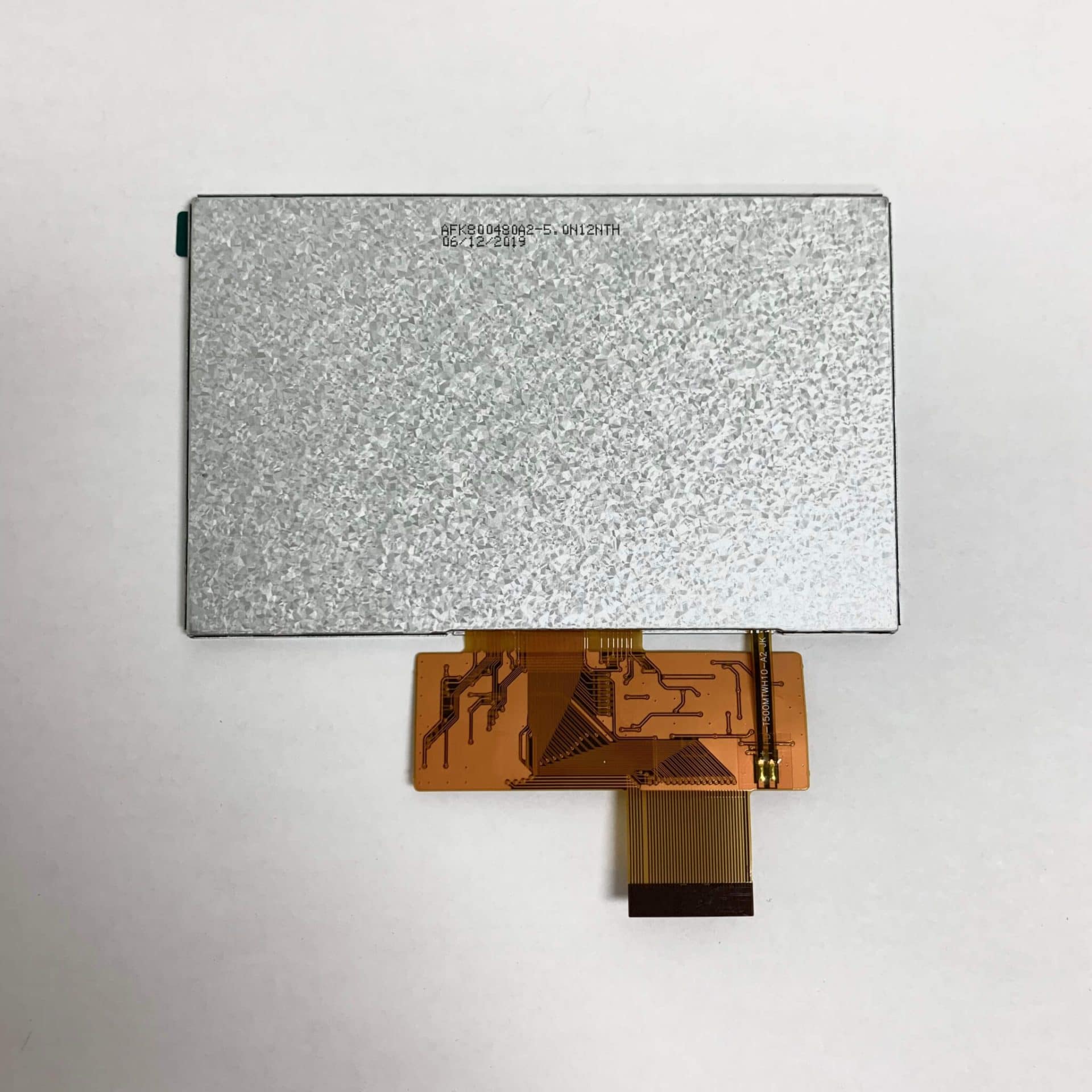

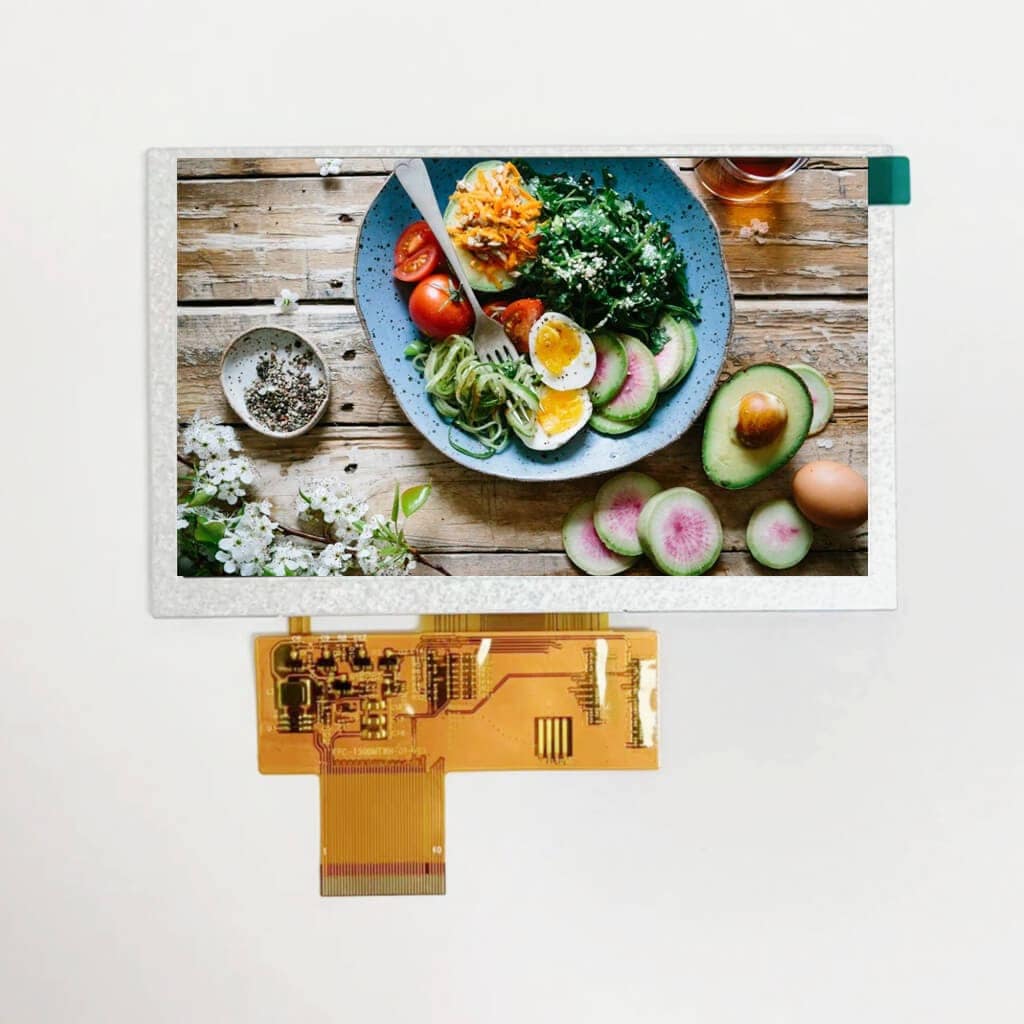

5.0″ TFT, 800×480, High Brightness 1000 Nits

$26.50CONTACT FOR VOLUME PRICING

38 in stock

  • Diagonal Dimension: 5 Inch
  • Resolution: 800 x 480 pixels
  • Interface: 24BIT RGB
  • Luminance: 1000 cd/m2
  • Viewing Direction: 12 o’clock
  • Touch Panel: None

Pricing table

QuantityUnit Price
25-49$25.17
50-$23.84

Contact us for larger volume orders and any other enquiries.

Compare
Add to wishlist
SKU: AFK800480A2-5.0N12NTH Categories: Color TFT, High Brightness TFT Panels
Share
Facebook Email linkedin

Description

A simple 5.0″ TFT Display 800×480 Full Color / High Brightness TFT Module, Transmissive/ Normal White.

5.0 Inch TFT Display

The highest quality product at the lowest price. Ships from the USA.
  • 5.0″ TFT, 800 x (RGB) x 480
  • Full Color / High Brightness TFT Module
  • 12 o’clock Viewing Direction
  • Transmissive / Normal White
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant
Download Product References Below
Product Datasheet: AFK800480A2-5.0N12NTH
Controller Datasheet: HX8664 +HX8264
Optional Accessory: TBA

Model / Series Name AFK800480A2-5.0N12NTH
Diagonal Dimension (inch) 5.0
Dots WxH 800 x 480
Module Size WxHxD max (mm) 120.7*75.80*3.10
Display Mode TN TFT / Transmissive / Normal White
IC HX8664 +HX8264
Interface Type 24-BIT RGB
Logic Power Supply Voltage 3.3V
Backlight 24 Chip White LED
Luminance 1000 cd/m2
Touch Panel None

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

    Additional information

    Weight 2.04 lbs
    Dimensions 99.8 × 164.80 × 7.10 mm
    backlightcolor

    White

    diagonal-size

    5.0

    displaytype

    TFT – TN

    polarizertype

    Transmissive

    resolution

    800×480

    touchpanel

    None

    viewingdirection

    12 o'clock

    interface

    RGB
