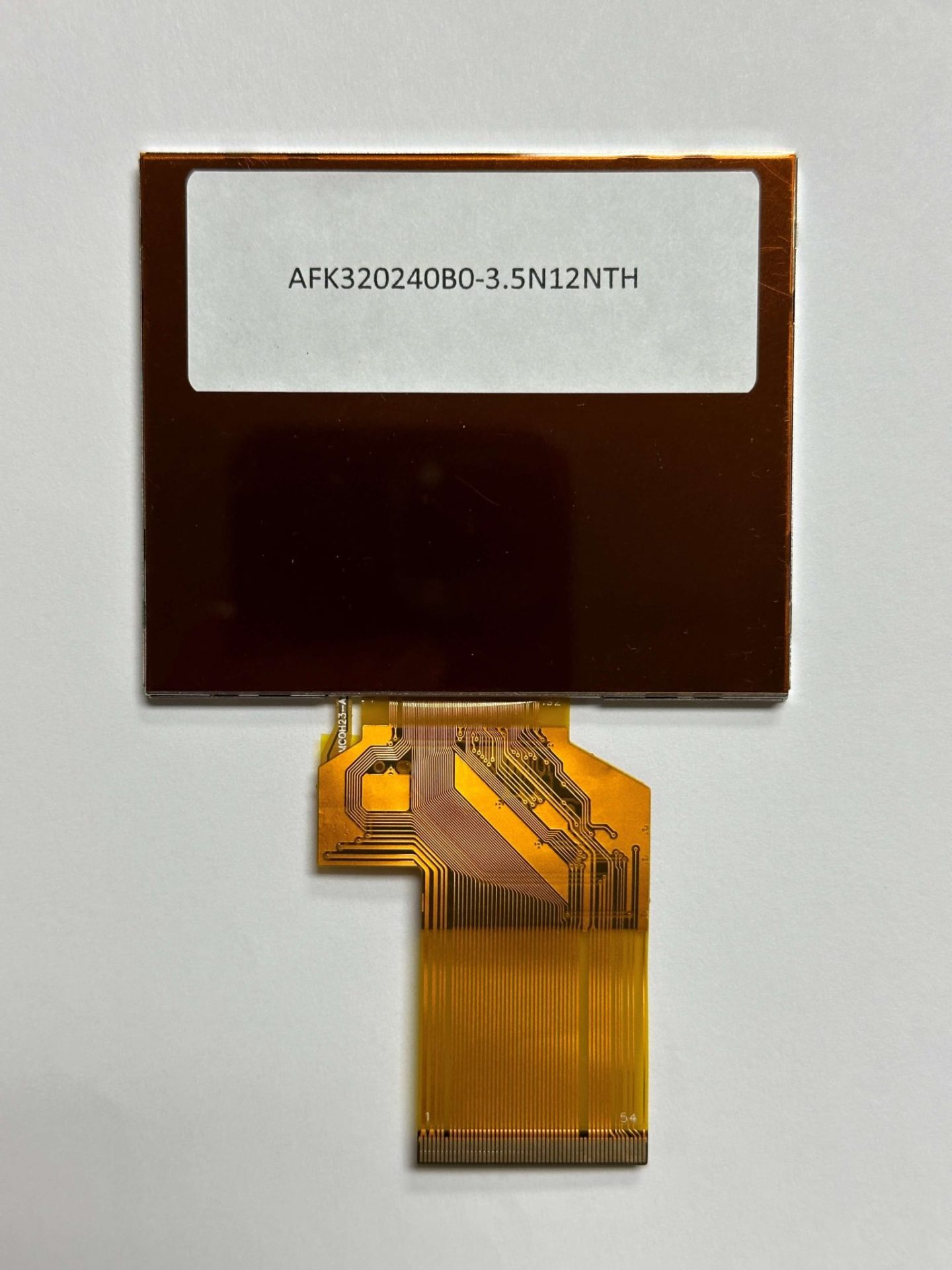

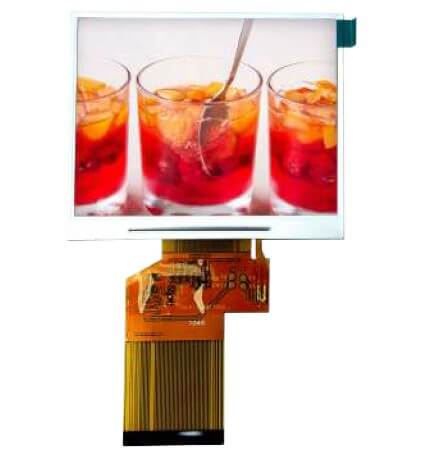

3.5” TN TFT display with RGB+SPI interface, 320×240, High Brightness
$22.68CONTACT FOR VOLUME PRICING
100 in stock
- Diagonal Dimension: 3.5 Inch
- Resolution: 320 x 480 pixels
- Interface: 24BIT RGB+SPI
- Luminance: 760cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Pricing table
Quantity | Unit Price |
---|---|
50- | $19.96 |
Contact us for larger volume orders and any other enquiries.
SKU: AM0393R-01
Categories: Medium Brightness TFT Panels, Color TFT, TFT Display Panels
Description
3.5″ TN TFT Display 320×240 Full Color / HighBrightness TFT Module, Transmissive, with 24BIT RGB+SPI interface.
3.5Inch TN TFT Display with 24BIT RGB+SPI interface
The highest quality product at the lowest price. Ships from the USA.
- 3.5″ TFT, 320x 240
- Full Color / High Brightness TFT Module
- 12 o’clock Viewing Direction
- Transmissive
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Model / Series Name | AM0393R-01 |
Diagonal Dimension (inch) | 3.5 |
Dots WxH | 320 x 240 |
Module Size WxHxD max (mm) | 76.90 * 63.90 * 3.2mm |
Display Mode | TN TFT / Transmissive / Normal White |
IC | HX8238-D |
Interface Type | 24BIT RGB+SPI interface |
Logic Power Supply Voltage | 3.3V |
Backlight | White LED |
Luminance | 760 cd/m2 |
Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
Weight | 0.4 lbs |
---|---|
Dimensions | 65 × 80 × 3 mm |
backlightcolor | |
diagonal-size | |
displaytype | |
polarizertype | |
touchpanel | |
viewingdirection |
