2.4″ Arduino TN TFT, 240×320, 300 Nits, 4-wire SPI Interface
$12.61CONTACT FOR VOLUME PRICING
102 in stock
- Medium Brightness / TN display
- Diagonal Dimension: 2.4 Inch
- Resolution: 240 x 320 pixels
- Interface: 4-wire SPI + Arduino Compatible
- Luminance: 300 cd/m2
- Viewing Direction: 12 o’clock
- Touch Panel: None
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $12.01 |
| 50-99 | $11.41 |
| 100-149 | $10.88 |
| 150-199 | $10.55 |
| 200- | $10.21 |
Contact us for larger volume orders and any other enquiries.
Description
A simple Arduino TN TFT 2.4″ Medium Brightness / TN Mode, Transmissive / 12 o’clock Viewing Direction with 240 x 320 dots, 4-wire SPI Interface.
The highest quality product at the lowest price. Ships from the USA.
- 2.4″ TN, 240 x 320
- Medium Brightness / TN
- Transmissive
- 12 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- ROHS Compliant
Download Product References Below

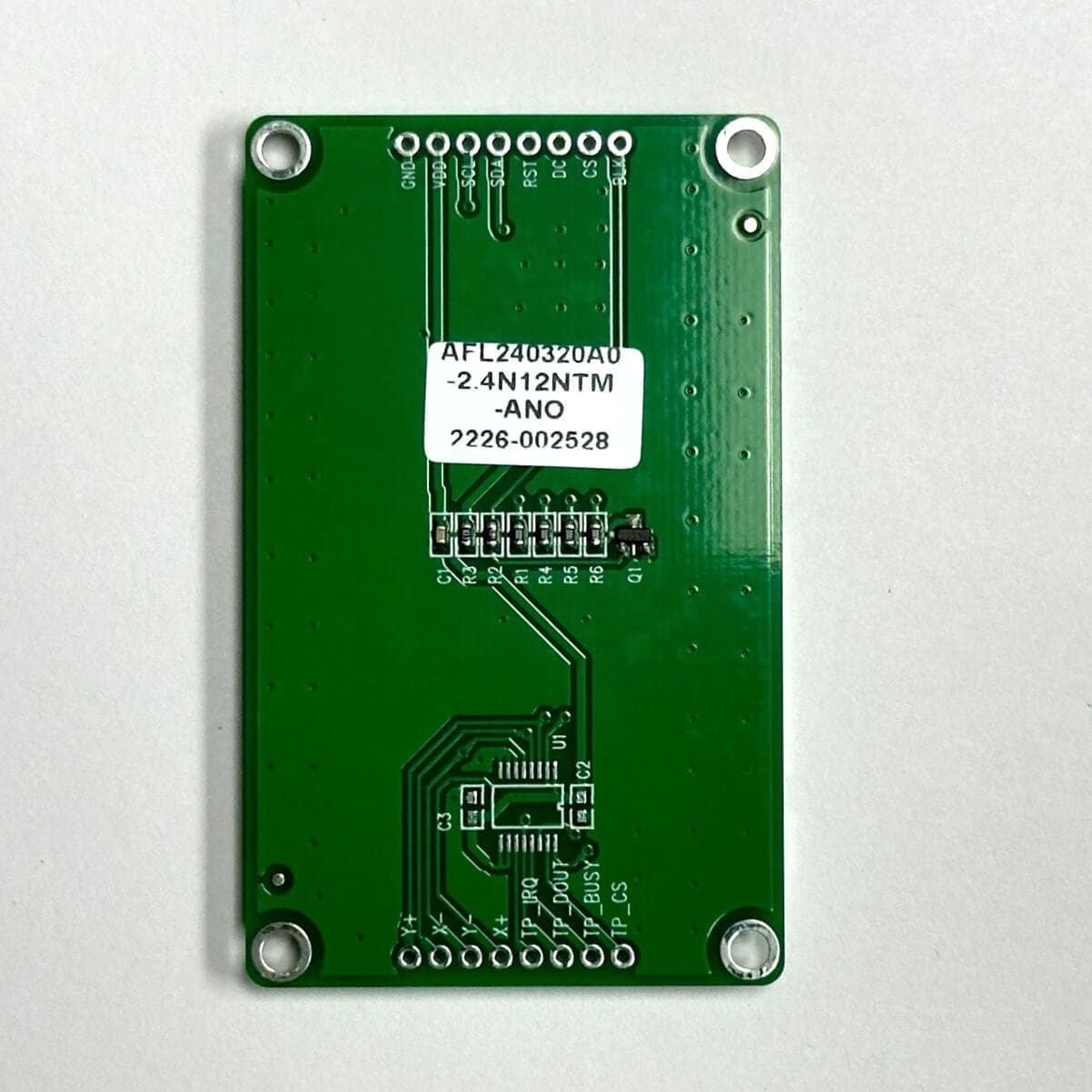

Product Datasheet: AFL240320A0-2.4N12NTM-ANO
Controller Datasheet: ILI9341V
Optional Accessory: TBD
| Model / Series Name | AFL240320A0-2.4N12NTM-ANO |
| Diagonal Dimension (Inches) | 2.4 |
| Dots WxH | 240 x 320 |
| Module Size WxHxD max (mm) | 45.0 x 73.0 x 6.0 |
| Display Mode | TN / Transmissive |
| IC | ILI9341V |
| Interface Type | 4-wire SPI + Compatible Arduino |
| Logic Power Supply Voltage | 3.3 |
| Backlight | LED, WHITE |
| Luminance | 300 cd/m2 |
| Touch Panel | None |
These are just few of our famous TFT modules; we still have a lot of TFT products to offer.
If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.
Additional information
| Weight | 0.05 lbs |
|---|---|
| Dimensions | 73 × 44 × 13 mm |
| backlightcolor | |
| Diagonal Size (Inch) | 2.4 |
| displaytype | |
| polarizertype | |
| resolution | |
| Touch Panel | None |
| viewingdirection | |
| interface | SPI |
