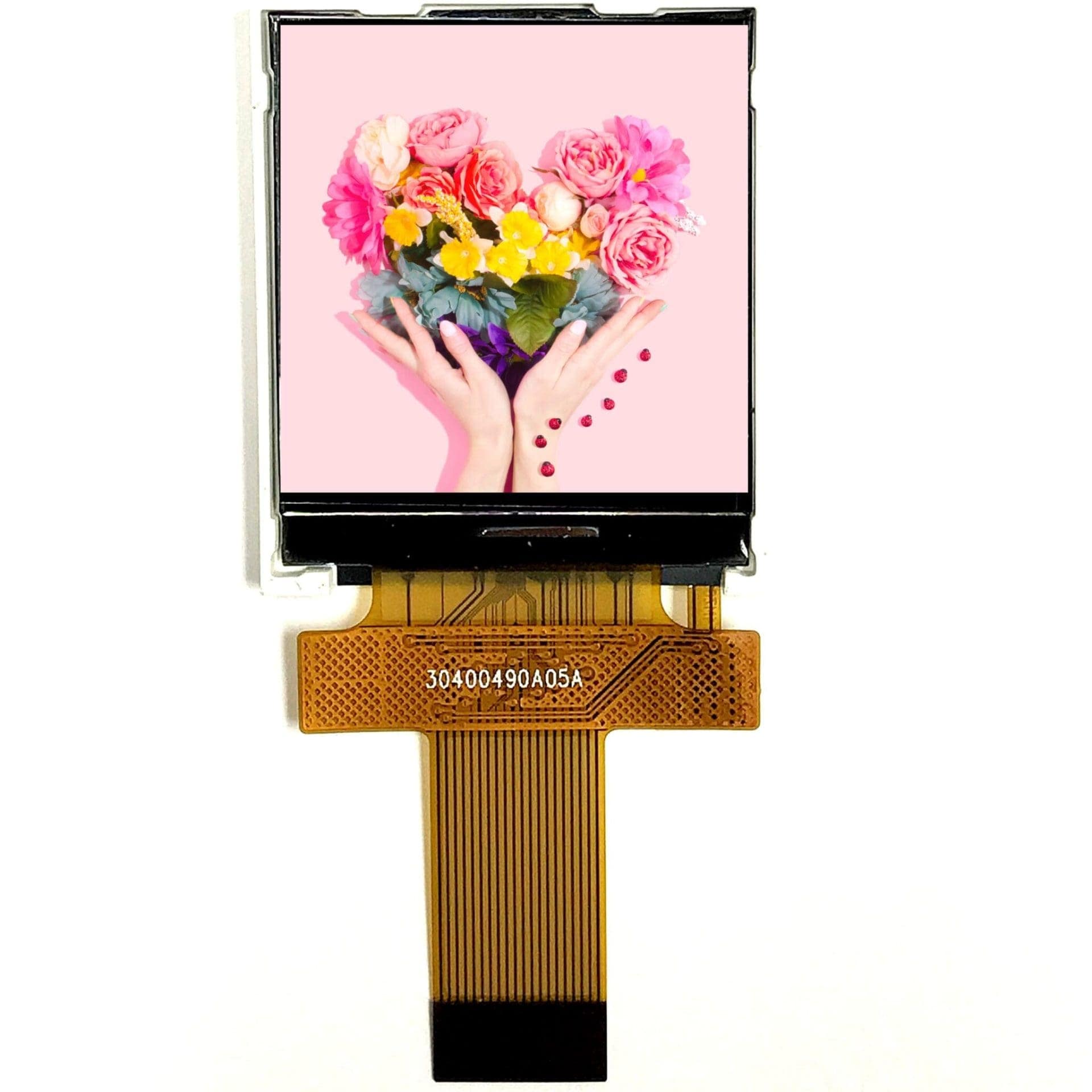

1.44 TF LCD module graphic
HomeTFT DisplaysColor TFT 1.44″ TN display, 128×128, 500 Nits, MCU/SPI Interface
Previous product

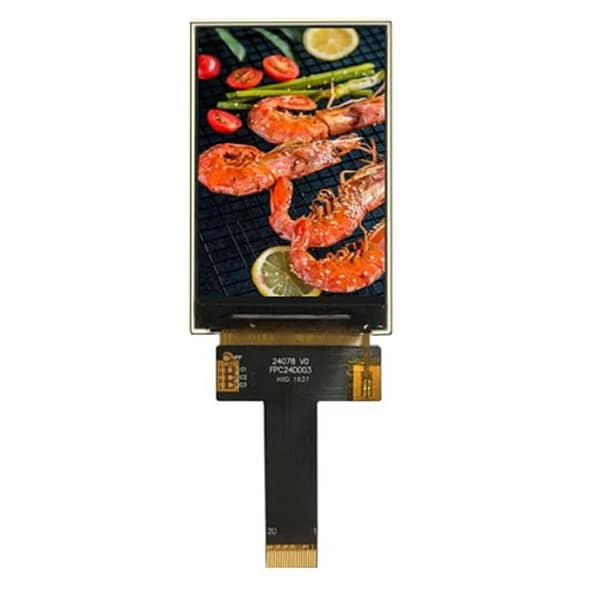

2.35" IPS display, 320x480, 750 Nits, MIPI Interface
2.35" IPS display, 320x480, 750 Nits, MIPI Interface $12.05
Back to products
Next product
1.77" TN display, 128x160, 320 Nits, SPI Interface $5.58

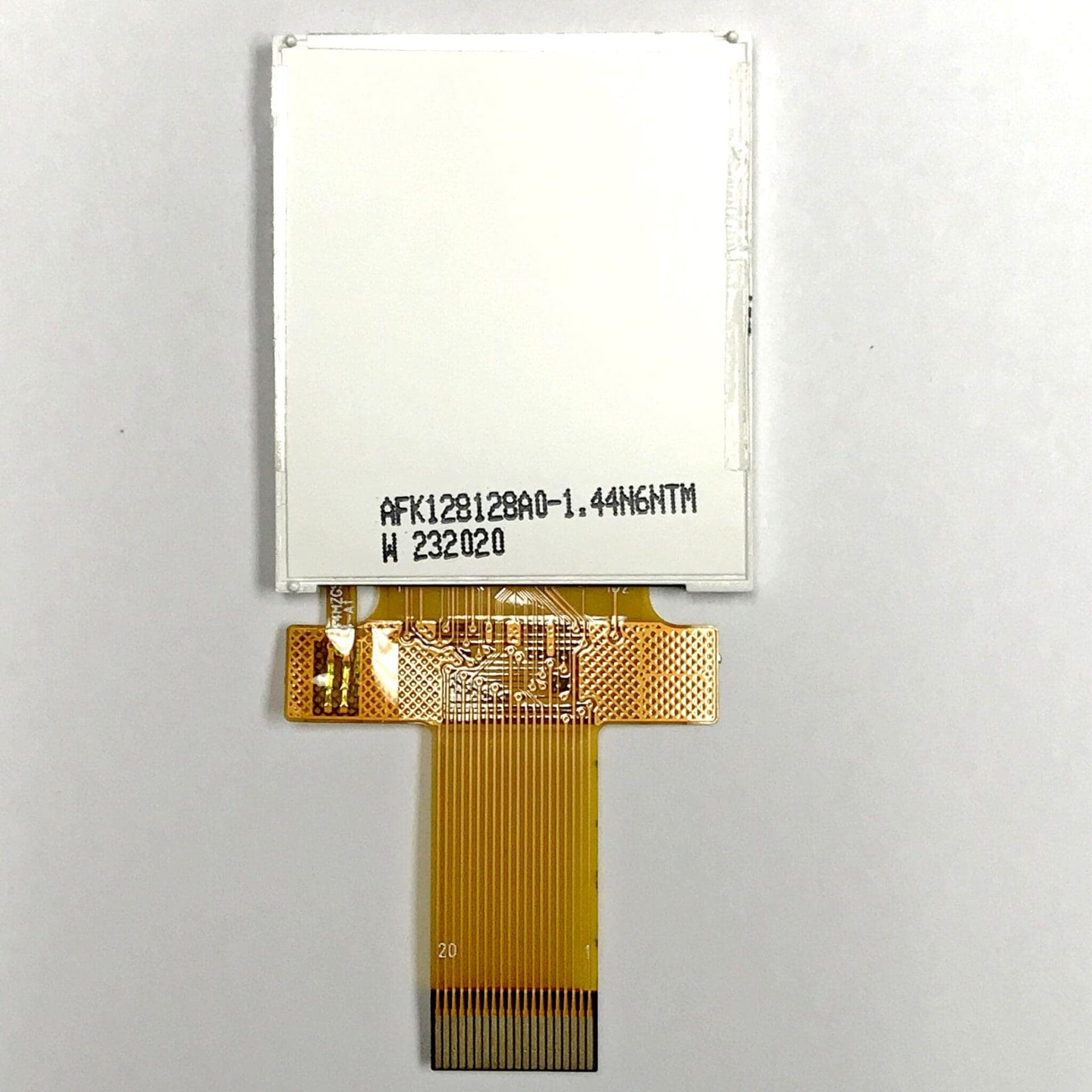

1.44″ TN display, 128×128, 500 Nits, MCU/SPI Interface

$5.30CONTACT FOR VOLUME PRICING

164 in stock

  • Medium Brightness / TN display
  • Diagonal Dimension: 1.44 Inch
  • Resolution: 128 x 128 pixels
  • Interface: MCU/SPI
  • Luminance: 500 cd/m2
  • Viewing Direction: 6 o’clock
  • Touch Panel: None

Pricing table

QuantityUnit Price
25-49$4.67
50-$4.04

Contact us for larger volume orders and any other enquiries.

Compare
Add to wishlist
SKU: AFK128128A0-1.44N6NTM Categories: Color TFT, Special Size TFT Panels
Share
Facebook Email linkedin

Description

A simple 1.44″ Medium Brightness / TN Module, Transmissive / 6 o’clock Viewing Direction / Normal White with 128 x 128 dots.

1.44 TFT LCD module graphic 128×128

The highest quality product at the lowest price. Ships from the USA.
    • 1.44″ TN, 128 x 128
    • Medium Brightness / TN
  • Transmissive / Normal White
  • 6 o’clock Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant


Download Product References Below

Product Datasheet: AFK128128A0-1.44N6NTM
Controller Datasheet: ST7735S
Optional Accessory: TBD
Model / Series Name AFK128128A0-1.44N6NTM
Diagonal Dimension (Inches) 1.44
Dots WxH 128 x 128
Module Size WxHxD max (mm) 35 x 30 x 2.6
Display Mode TN / Normal White / Transmissive
IC ST7735S
Interface Type MCU/SPI Interface
Logic Power Supply Voltage 1.8/2.8
Backlight LED, WHITE, If=15mA
Luminance 500 cd/m2
Touch Panel None

These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at info@orientdisplay.com.

Additional information

Weight 0.0086 lbs
Dimensions 30 × 65 × 3 mm
backlightcolor

White

diagonal-size

1.44

displaytype

TFT – TN

polarizertype

Transmissive

resolution

128×128

touchpanel

None

viewingdirection

6 o'clock

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “1.44″ TN display, 128×128, 500 Nits, MCU/SPI Interface” Cancel reply
