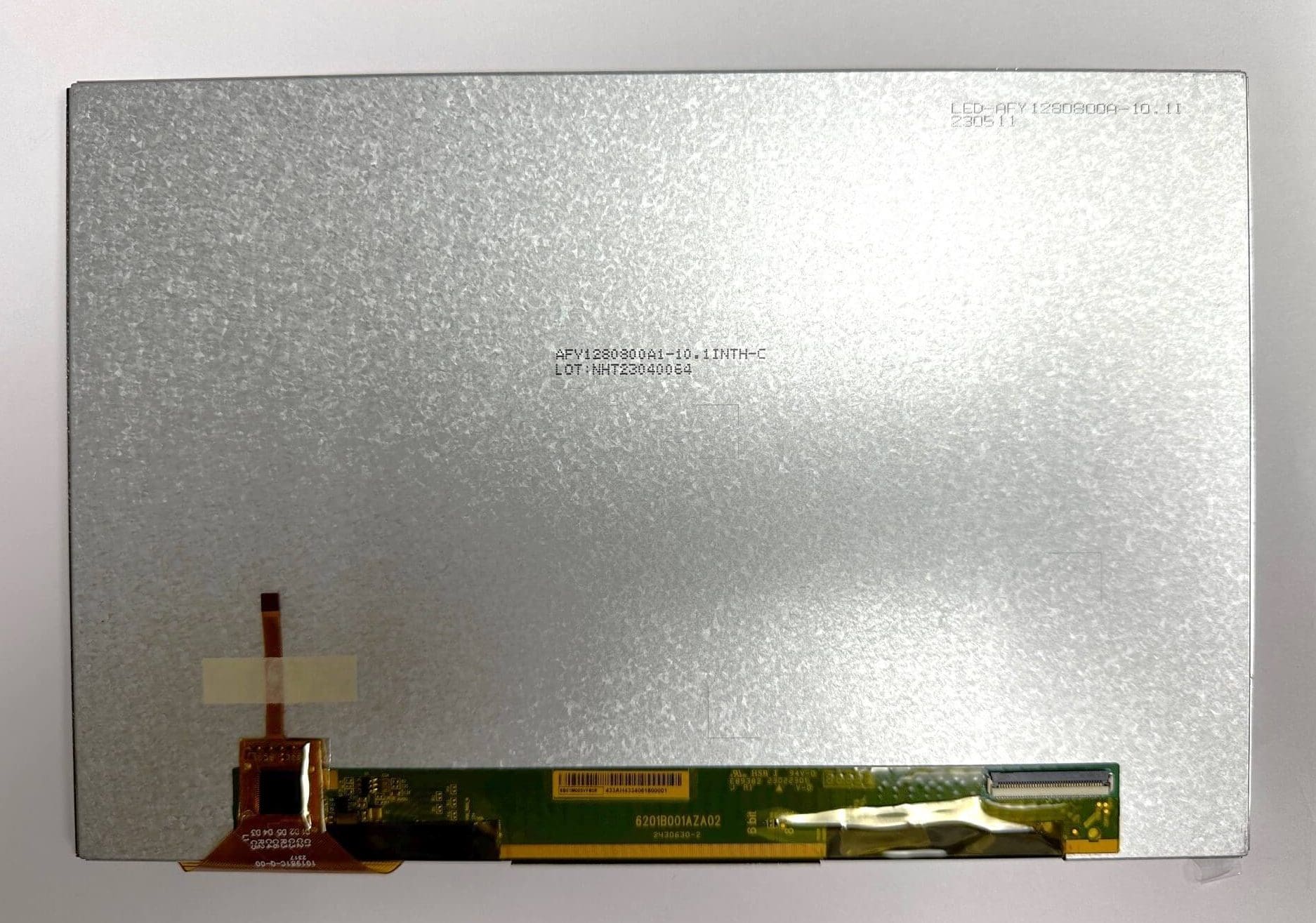

10.1″ Sunlight Readable IPS, 1280×800, 900 Nits with Capacitive Touch Panel

$141.86CONTACT FOR VOLUME PRICING

95 in stock

  • Model / Series Name: AFY1280800A1-10.1INTH-C
  • Diagonal Dimension (inch): 10.1
  • Dots WxH: 1280 x 800
  • Module Size WxHxD max (mm): 232.90 x 154.60 x 6.55
  • Display Mode: IPS / Normal black / Transmissive

Pricing table

QuantityUnit Price
50-$129.77

Contact us for larger volume orders and any other enquiries.

Compare
Add to wishlist
SKU: AFY1280800A1-10.1INTH-C Categories: , , , , ,

Description

A simple 10.1″ High Brightness / Sunlight Readable IPS Module, Transmissive / All Viewing Direction / Normal Black with 1280 x (RGB) x 800 dots.

The highest quality product at the lowest price. Ships from the USA.
  • 10.1″ IPS, 1280 x (RGB) x 800
  • High Brightness / Sunlight Readable IPS
  • Transmissive / Normal Black / Capacitive Touch Panel
  • ALL Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • ROHS Compliant

Download Product References Below
Product Datasheet: AFY1280800A1-10.1INTH-C
Controller Datasheet: EK79202B
Optional Accessory: TBD


These are just few of our famous TFT modules; we still have a lot of TFT products to offer.

If none of these part numbers meet your requirements in terms of brightness, interface, or connection method, please email us at
info@orientdisplay.com.
Model / Series Name AFY1280800A1-10.1INTH-C
Diagonal Dimension (inch) 10.1
Dots WxH 1280 x 800
Module Size WxHxD max (mm) 232.90 x 154.60 x 6.55
Display Mode IPS / Normal black / Transmissive
IC EK79202B
Interface Type LVDS
Logic Power Supply Voltage 3.3 V
Backlight 42 Chip White LED, lf = 180mA
Luminance 900 cd/m2
Touch Panel Capacitive (CTP)

Custom Made Options

FPC or Cable Customization

Obtain a customized cable or FPC to enhance the security and efficiency of your connections, by adjusting cable length, position, pinout, or adding extra connectors.

Touch Panel with Optical Bonding

Improve your user experience by incorporating either capacitive or resistive touch screen. We will tailor the thickness, color or shape of the touch panel and cover lens to seamlessly integrate with your design with or without OCA or OCR bonding.

GUI or Interface Customization

Select the most suitable connection or GUI interface. We can integrate various interfaces such as HDMI, USB, SPI, I2C, UART, MCU, VGA, and others into your display to fulfill your design objective.

Contact Us

    Additional information

    Weight 0.96 lbs
    Dimensions 228 × 153 × 6 mm
    backlightcolor

    diagonal-size

    displaytype

    polarizertype

    resolution

    touchpanel

    viewingdirection

    interface

    LVDS
