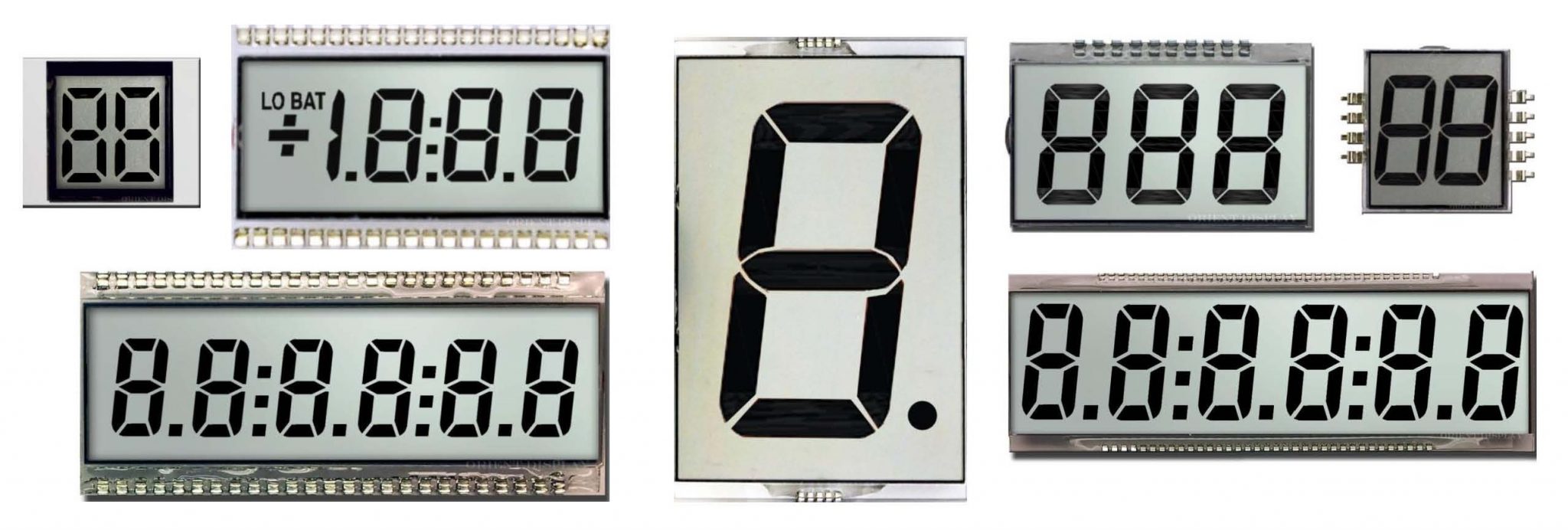

Orient Display: LCD Glass Panels/Segment LCD Display - 1 to 8 digits, TN positive LCD mode, multiple choices of sizes

LCD Glass Panel Features (Product is backed by Orient Display’s Lowest Price Guarantee Policy)

  • Fast delivery: stocked Seattle warehouse
  • NO minimum order requirement on most models

“The products look good. I want to personally thank you for your precise and efficient cooperation! It’s rare these days.”

Biser Filipov, Manager

Standard Glass Panels

Digits LCD Mode  Glass Size Viewing Area Digit Height Features Connection Temperature Part Number Stock
1 TN Positive 122.56 x 81.28 109.22 x 76.2 101.60 6:00, Static, Transf, 5V Pin Op:-20°C-70°C, St:-30°C-80°C OD-103T Buy Here
1 TN Positive 122.56 x 81.28 109.22 x 76.2 101.60 6:00, Static, Reflec, 5V Pin Op:-20°C-70°C, St:-30°C-80°C OD-103R Buy Here
2 TN Positive 22.86 x 21.34 15.86 x 18.18 12.70 6:00, 1/2 Duty, 1/2 Bias, Transf, 4.3V Pin Op:-20°C-70°C, St:-30°C-80°C OD-202 Buy Here
2 TN Positive 8.00 x 10.00 6.00 x 5.50 4.00 6:00, Static, Reflec, 3V Zebra Op:-20°C-70°C, St:-30°C-80°C OD-204 Buy Here
1/2 TN Positive 30.00 x 26.17 26.00 x 17.17 12.17 6:00, Static, Reflec, 5V Pin Op:-20°C-70°C, St:-30°C-80°C OD-251 Buy Here
3 TN Positive 33.10 x 20.40 30.50 x 15.80 12.20 6:00, 1/3 Duty, 1/2 Bias, Trans, 2.7V Pin Op:-20°C-70°C, St:-30°C-80°C OD-301 Buy Here
3 TN Positive 30.70 x 16.20 27.90 x 10.00 7.87 6:00, Static, Reflec, 5V Pin Op:-20°C-70°C, St:-30°C-80°C OD-302 Buy Here
31/2 TN Positive 50.80 x 30.48 44.45 x 16.51 12.70 6:00, Static, Reflective, 5V,w/ lowbat & +/- Pin Op:0°C-500°C, St:-10°C-60°C OD-357 Buy Here
31/2 TN Positive 50.80 x 30.48 45.8 x 17.86 12.70 6:00, Static, Trans, 5V,w/ lowbat & +/- Pin Op:-20°C-70°C, St:-30°C-80°C OD-358T Buy Here
31/2 TN Positive 50.80 x 30.48 45.8 x 17.86 12.70 6:00, Static, Reflec, 5V,w/ lowbat & +/- Pin Op:-20°C-70°C, St:-30°C-80°C OD-358R Buy Here
1/2 TN Positive 93.85 x 45.72 86.23 x 30.35 24.90 6:00,1/4D,1/3B,Trans/Ref, 5V,w/Arrow&+/- Pin Op:-30°C-80°C,St:-35°C-85°C OD-3515 Contact Us
1/2 TN Positive 69.85 x 38.10 63.00 x 24.00 17.80 6:00, Static, Trans/Ref, 5V,w/Arrow&+/- Pin Op:-30°C-80°C,St:-30°C-80°C OD-3516 Buy Here
3/4 TN Positive 20.10 x 10.10 18.10 x 7.30 6.00 6:00,1/2D,1/3B,Reflec, 5V,with E Zebra Op:-20°C-70°C, St:-30°C-80°C OD-371 Buy Here
3/4 TN Positive 23.70 x 11.50 21.70 x 8.20 7.00 6:00,1/2D,1/2B,Reflec, 3V,with E Zebra Op:-20°C-70°C, St:-30°C-80°C OD-372 Buy Here
1/2 TN Negative 30.70 x 18.10 28.00 x 14.00 8.30 6:00,1/4D,1/3B,Transf, 4.5V,with 25 Dots NO Pin Op:-20°C-70°C, St:-30°C-80°C OD-391 Contact Us
4 TN Positive 50.80 x 30.45 44.45 x 16.51 12.70 6:00, Static, Transf, 3.3V Pin Op:-20°C-70°C,St:-30°C-80°C OD-409 Buy Here
41/2 TN Positive 50.80 x 30.50 47.50 x 17.70 10.20 6:00, Static, Reflec, 5Vw/ lowbat & +/- Pin Op:-30°C-80°C,St:-30°C-80°C OD-454 Contact Us
4 TN Positive 35.56 x 22.86 31.56 x 12.51 7.62 6:00,1/3D,1/2B,Reflec,5V,16 Segs Pin Op:-20°C-60°C,St:-25°C-70°C OD-491 Contact Us
5 TN Positive 50.80 x 30.48 47.80 x 20.00 10.20 6:00, Static, Transf, 5V Pin Op:-30°C-80°C,St:-30°C-80°C OD-502 Contact Us
6 TN Positive 137.16 x 46.38 130.56 x 31.50 25.40 6:00, Static, Transflecive, 5V Pin Op:-30°C-85°C,St:-35°C-85°C OD-607A Buy Here
6 TN Positive 69.85 x 30.48 63.50 x 16.51 12.70 6:00, Static, Reflec, 5V Pin Op:-20°C-80°C,St:-30°C-80°C OD-609R Buy Here
6 TN Positive 69.85 x 30.48 63.50 x 16.51 12.70 6:00, Static, Transf, 5V Pin Op:-20°C-80°C,St:-30°C-80°C OD-609 Buy Here
6 TN Positive 30.00 x 17.30 27.60 x 11.60 8.00 6:00, 1/4D,1/3B, Reflec, 3V Pin Op:-20°C-70°C, St:-30°C-80°C OD-6010 Buy Here
8 TN Positive 70.00 x 25.0 64.00 x 12.50 9.00 6:00,1/4D,1/3B,Reflec,4.7V,14 Segs Pin Op:-30°C-80°C,St:-40°C-80°C   OD-893 Buy Here
8 TN Positive 93.98 x 30.48 87.63 x 19.05 11.00 12:00,1/4D,1/3B,Transfl,5V,14 Segs Pin Op:-20°C-80°C,St:-40°C-80°C OD-894 Buy Here
24 HTN Positive 61.80 x 18.80 58.80 x 13.30 5.03 12:00,1/12D,1/5B,Reflec,4.8V,16 Segs Zebra Op:-20°C-70°C, St:-30°C-80°C OD-2491 Contact Us
