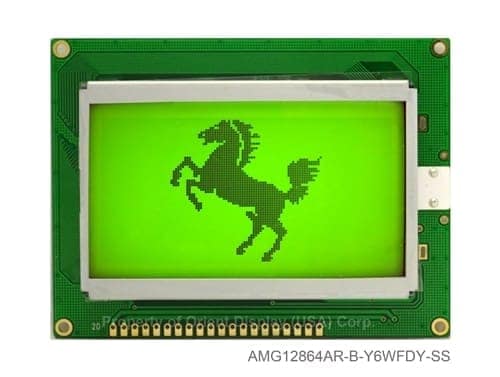

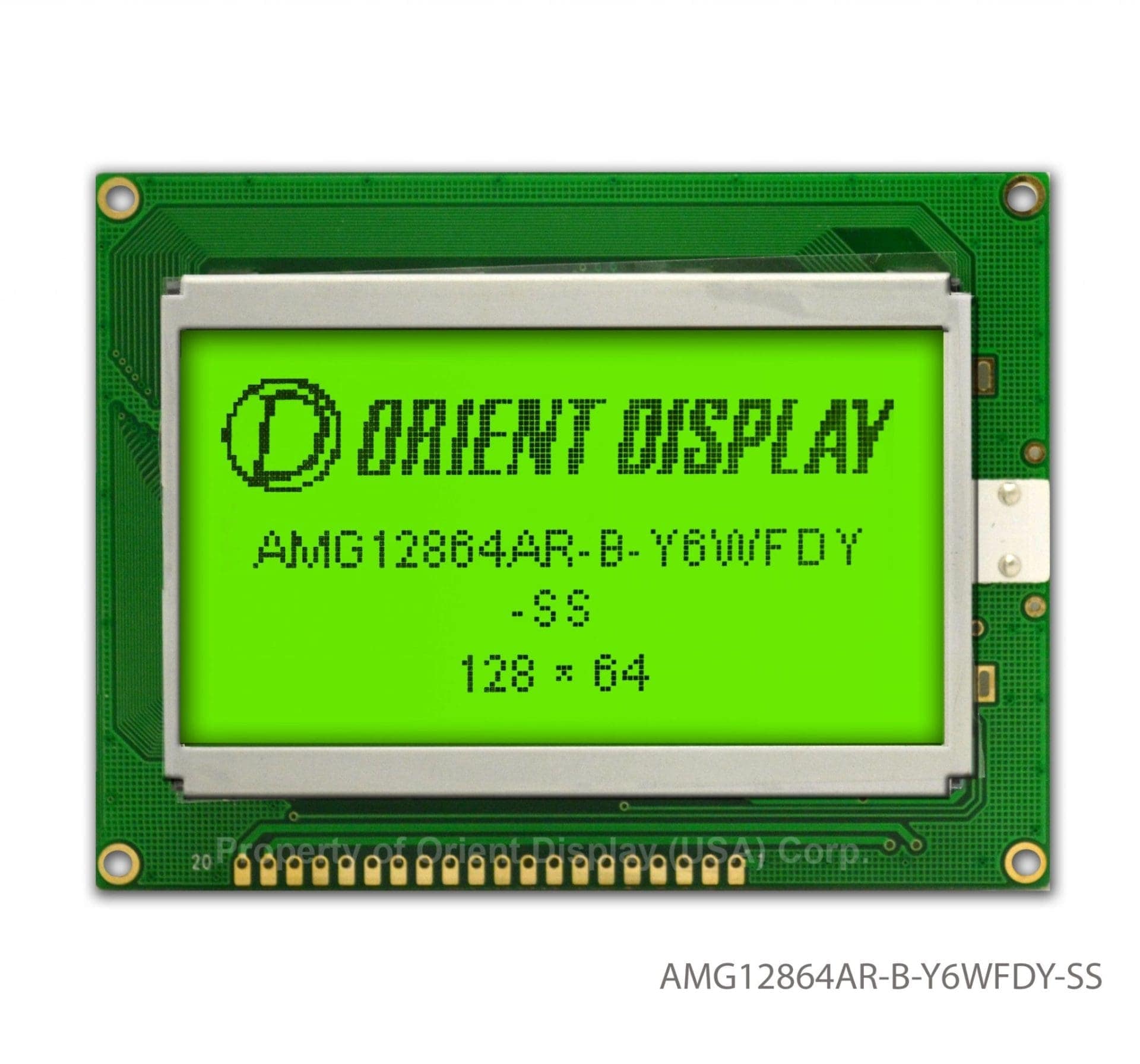

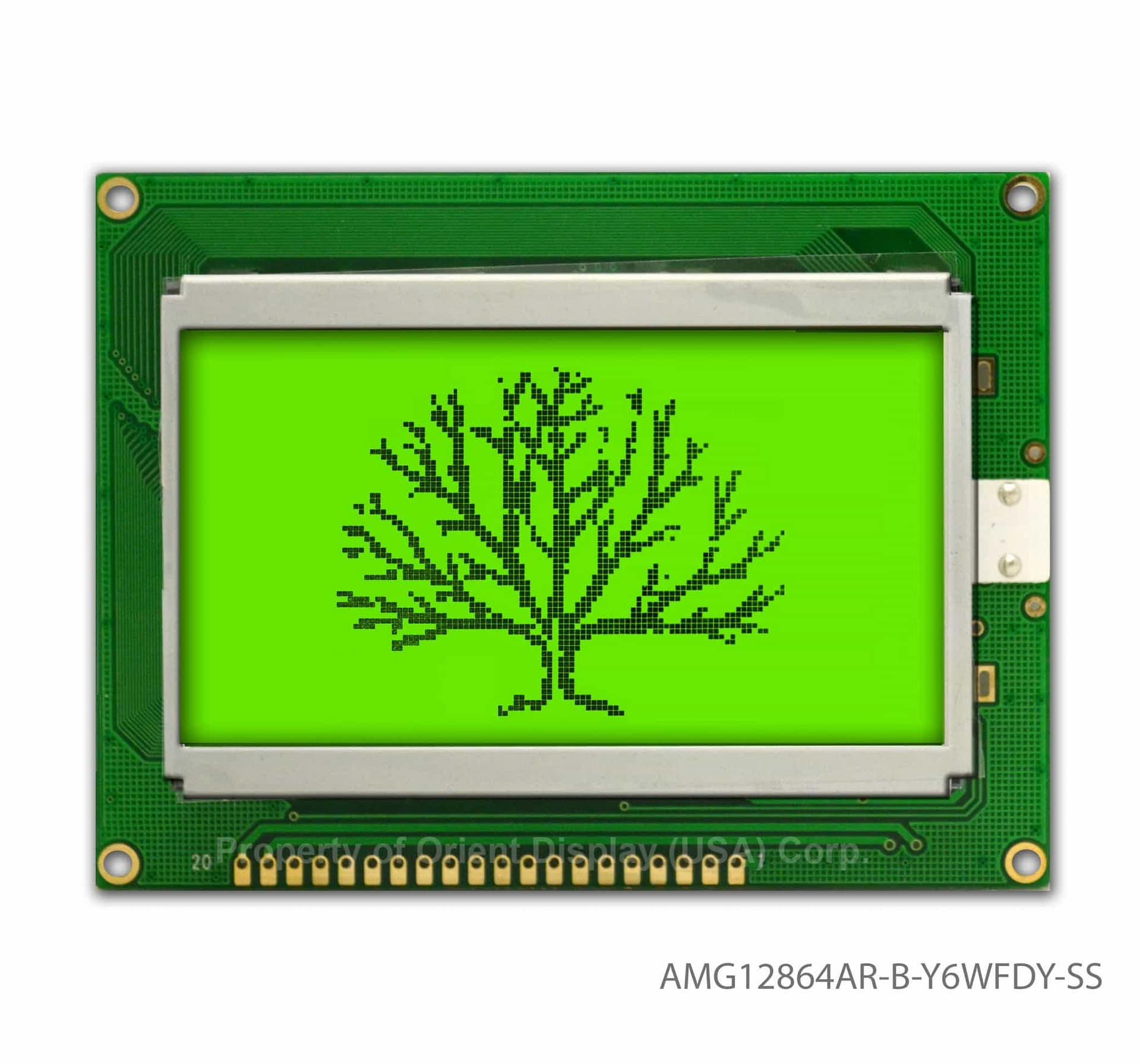

AMG12864AR-B-Y6WFDY-SS (2.9″ 128×64 Graphic LCD Module) NO DC-DC

$15.30CONTACT FOR VOLUME PRICING

85 in stock

  • Diagonal Dimension: 2.9 Inch
  • Resolution: 128 x 64 pixels
  • LCD mode: STN Positive Yellow Green
  • Polarizer: Transflective
  • Backlight: Yellow Green LED
  • Dark on Yellow Green Background
  • Connection: Pin
  • IC Package Type: COB
  • Features: No DC-DC

Pricing table

QuantityUnit Price
25-49$14.6
50-99$13.9
100-149$13.27
150-199$12.88
200-$12.49

Contact us for larger volume orders and any other enquiries.

Compare
Add to wishlist
SKU: AMG12864AR-B-Y6WFDY-SS Categories: LCD Graphic Displays, COB, LCD Display Modules
Share
Facebook Email linkedin

Description

A 2.9″ monochrome, 128×64 dot matrix, COB (Chip on Board) Graphic LCD Module in STN Positive Yellow Green LCD Mode with Yellow Green LED Backlight. It has a transflective polarizer, recommended for applications that will be used both indoor and outdoor. This product has no DC-DC and is assembled Chip On board with 1/64 Duty and a Controller IC S6B0107 or S6B0108 or equivalent. The interface type is Parallel. This is an ROHS compliant product manufactured with ISO standards and procedures.



The highest quality product at the lowest price.



  • STN Positive Yellow Green
  • 6 o’clock Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • Transflective Polarizer
  • Yellow Green LED Backlight
  • COB Type (Chip on Board)
  • No DC-DC
  • ROHS Compliant



Download Product References Below

Product Datasheet: AMG12864A

Controller Datasheet: S6B0107 or S6B0108



Model/Series Name AMG12864A
Dots/ Resolution 128 x 64
LCD Mode STN Positive Yellow Green
Polarizer Type Transflective
Diagonal Dimension (inches) 2.9

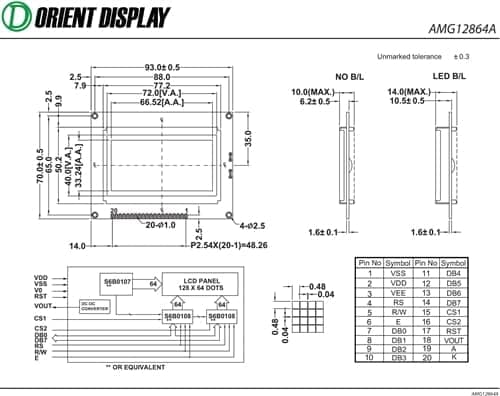

Module Size WxHxT max(mm) 93.0 x 70.0 x 14.0
View Area WxH (mm) 72.0 x 40.0
Dot Size WxH (mm) 0.48 x 0.48
Backlight Yellow Green LED
Controller S6B0107 or S6B0108 or equivalent
Interface Type Parallel

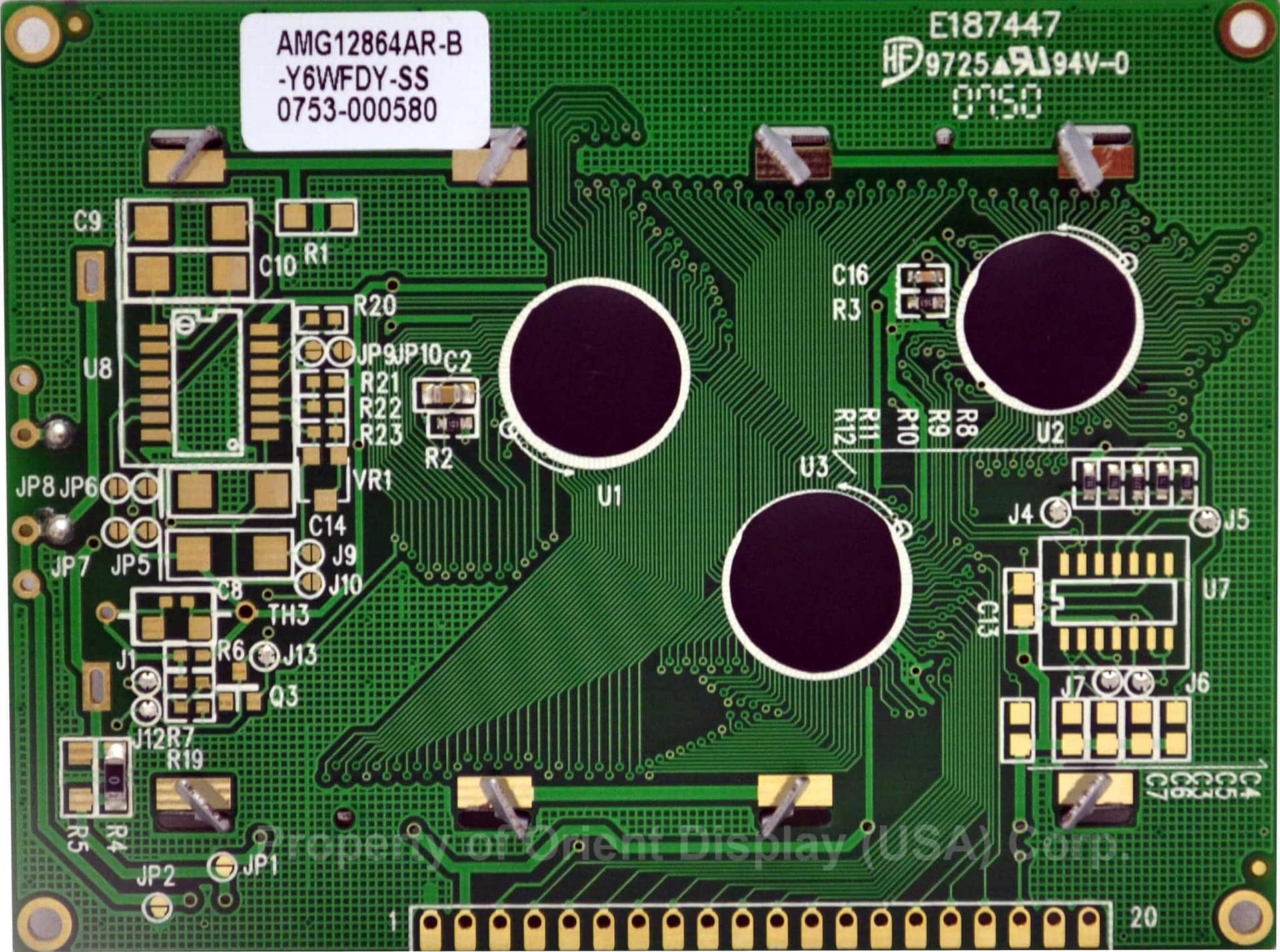

LCD Assembly COB (Chip on Board)
Features No DC-DC




Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.



Please send your inquiries to info@orientdisplay.com

Additional information

Weight 0.75 lbs
Dimensions 70 × 93 × 14 mm
backlightcolor

Yellow-Green

diagonal-size

2.9

displaymode

STN – Positive (Yellow Green)

displaytype

Graphic LCD

polarizertype

Transflective

resolution

128×64

touchpanel

None

viewingdirection

6 o'clock
