AMG240160P-G-W6WFDW (2.5″ 240×160 COG Graphic LCD Module)
$12.24CONTACT FOR VOLUME PRICING
32 in stock
- Diagonal Dimension: 2.5 Inch
- Resolution: 240 x 160 pixels
- LCD mode: FSTN Positive
- Polarizer: Transflective
- Backlight: White LED
- Black on Gray Background
- Connection: FPC
- IC Package Type: COG
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $11.72 |
| 50-99 | $11.2 |
| 100-149 | $10.73 |
| 150-199 | $10.45 |
| 200- | $10.16 |
Contact us for larger volume orders and any other enquiries.
Description
A 2.5″ monochrome, 240×160 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a six O’clock viewing direction and a transflective polarizer recommended for applications that will be used both indoor and outdoor. This product is assembled chip on glass with 1/160 Duty cycle and 1/12 Bias. This LCD uses controller IC UC1698 or equivalent. This is an ROHS compliant product manufactured with ISO standards and procedures .
2.5″ 240×160 COG Graphic LCD Module
The highest quality product at the lowest price.
- FSTN Positive
- 6 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transflective Polarizer
- White LED Backlight
- COG Type (Chip on Glass)
- ROHS Compliant
Download Product References Below
Product Datasheet: AMG240160P-G
Controller Datasheet: UC1698
Product Demo (Video): AMG240160P-G-W6WFDW
Controller Example Codes: AMG240160P-G-W6WFDW Display Codes
| Model/Series Name | AMG240160P-G |
| Dots/ Resolution | 240 x 160 |
| LCD Mode | FSTN Positive |
| Polarizer Type | Transflective |
| Diagonal Dimension (inches) | 2.5 |

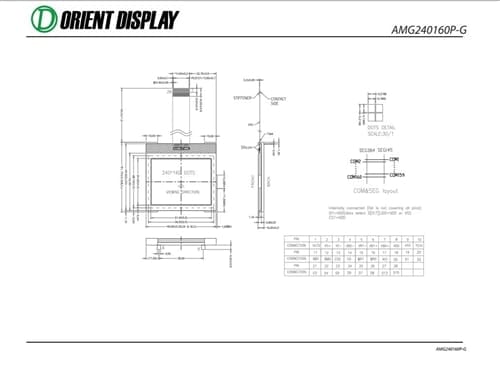

| Module Size WxHxT max(mm) | 60.0 x 51.7 x 5.0 |
| View Area WxH (mm) | 56.0 x 38.7 |
| Dot Size WxH (mm) | 0.196 x 0.196 |
| Dot Pitch WxH (mm) | 0.217 x 0.217 |
| Backlight | White LED |
| Controller | UC1698 or equivalent |
| LCD Assembly | COG (Chip on Glass) |
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.21 lbs |
|---|---|
| Dimensions | 51.7 × 60 × 5 mm |
| backlightcolor | |
| diagonal-size | |
| displaymode | |
| displaytype | |
| polarizertype | |
| resolution | |
| touchpanel | |
| viewingdirection |
