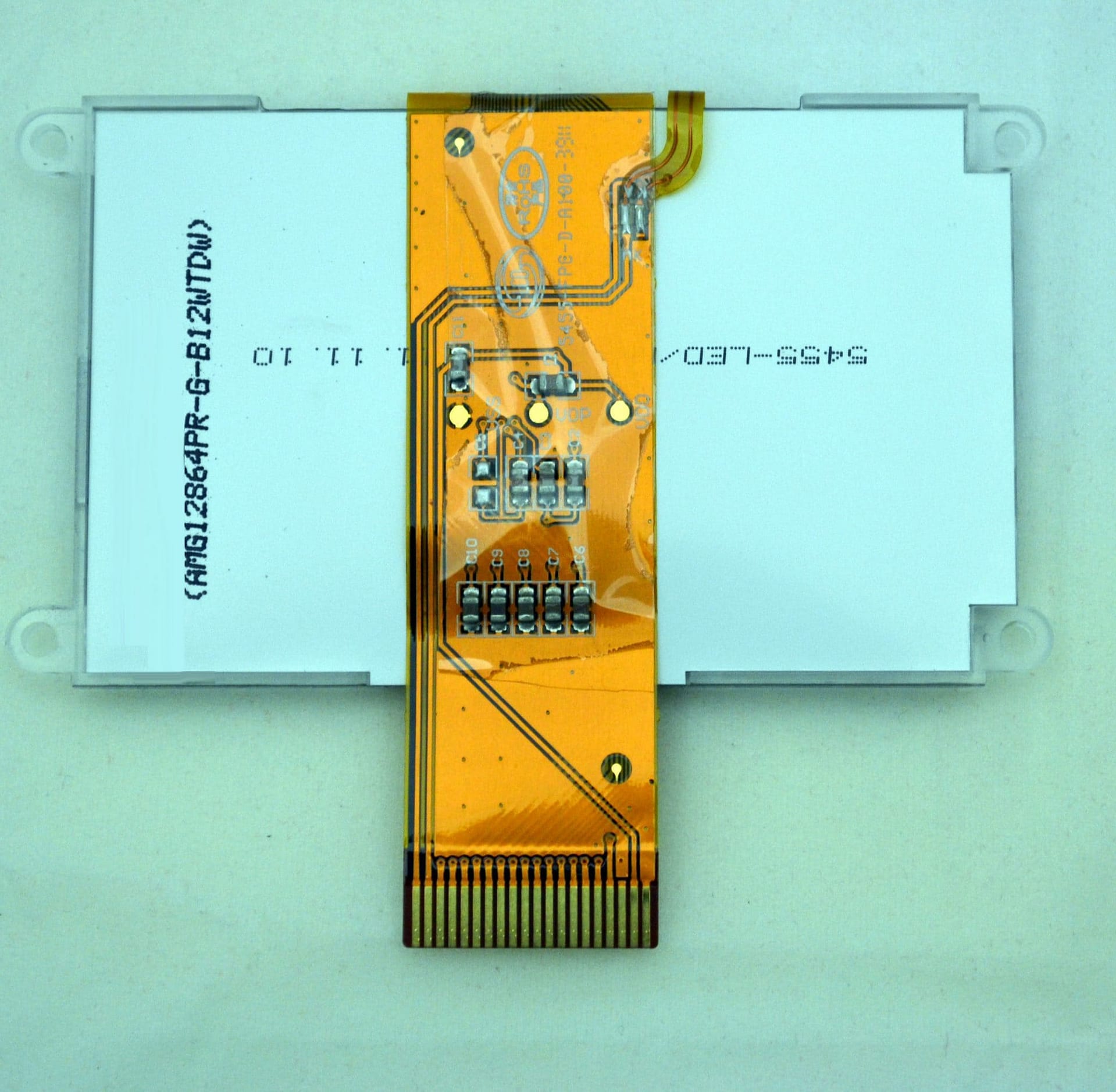

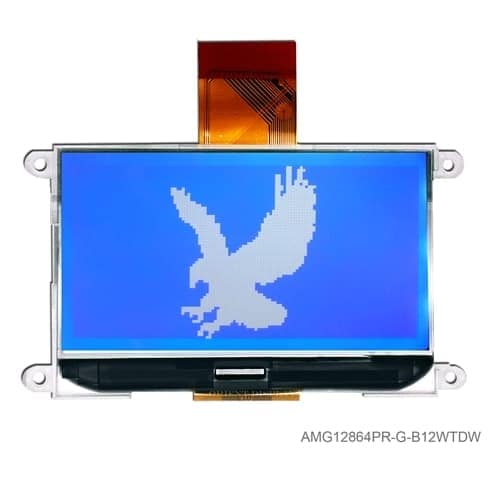

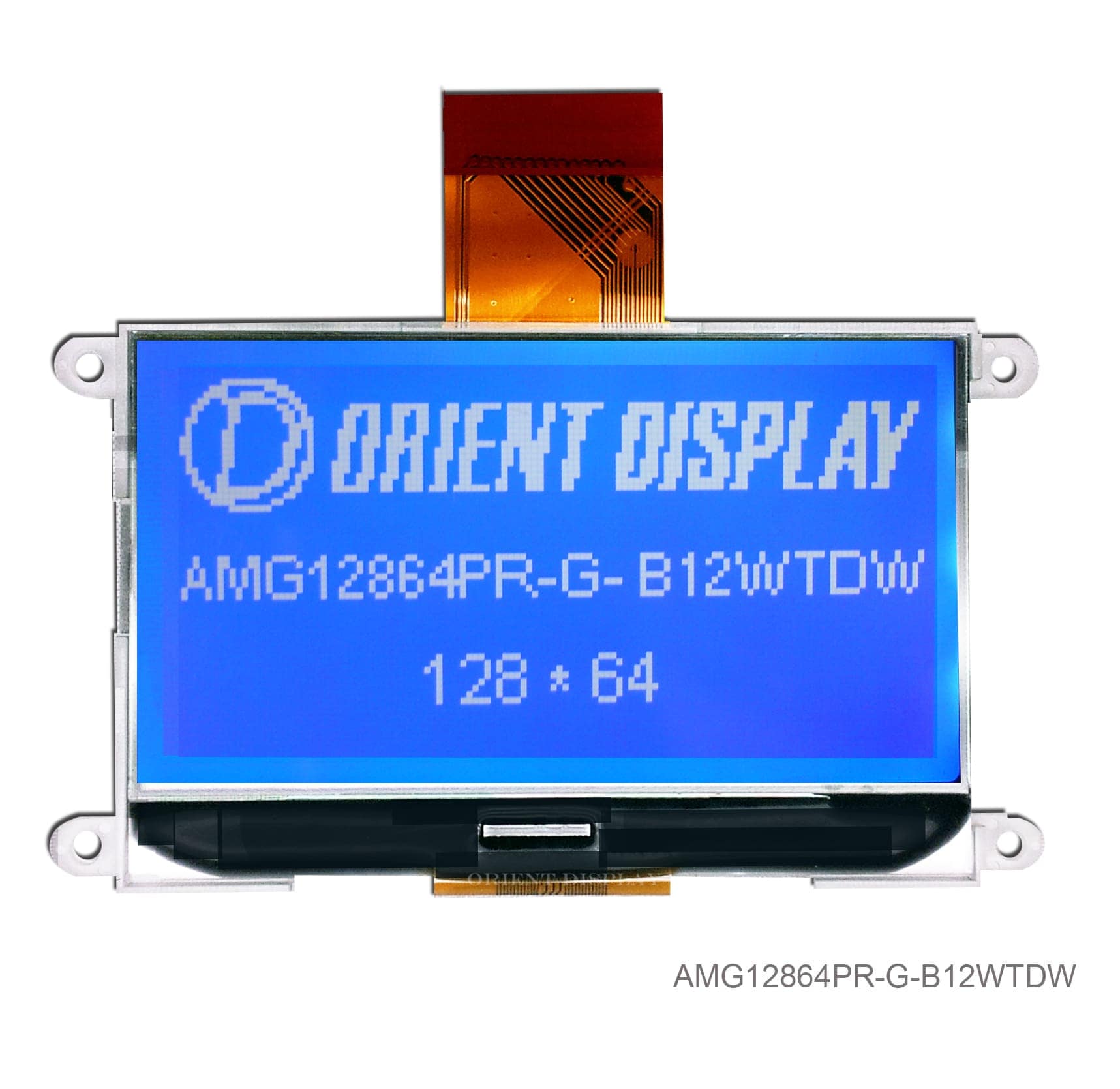

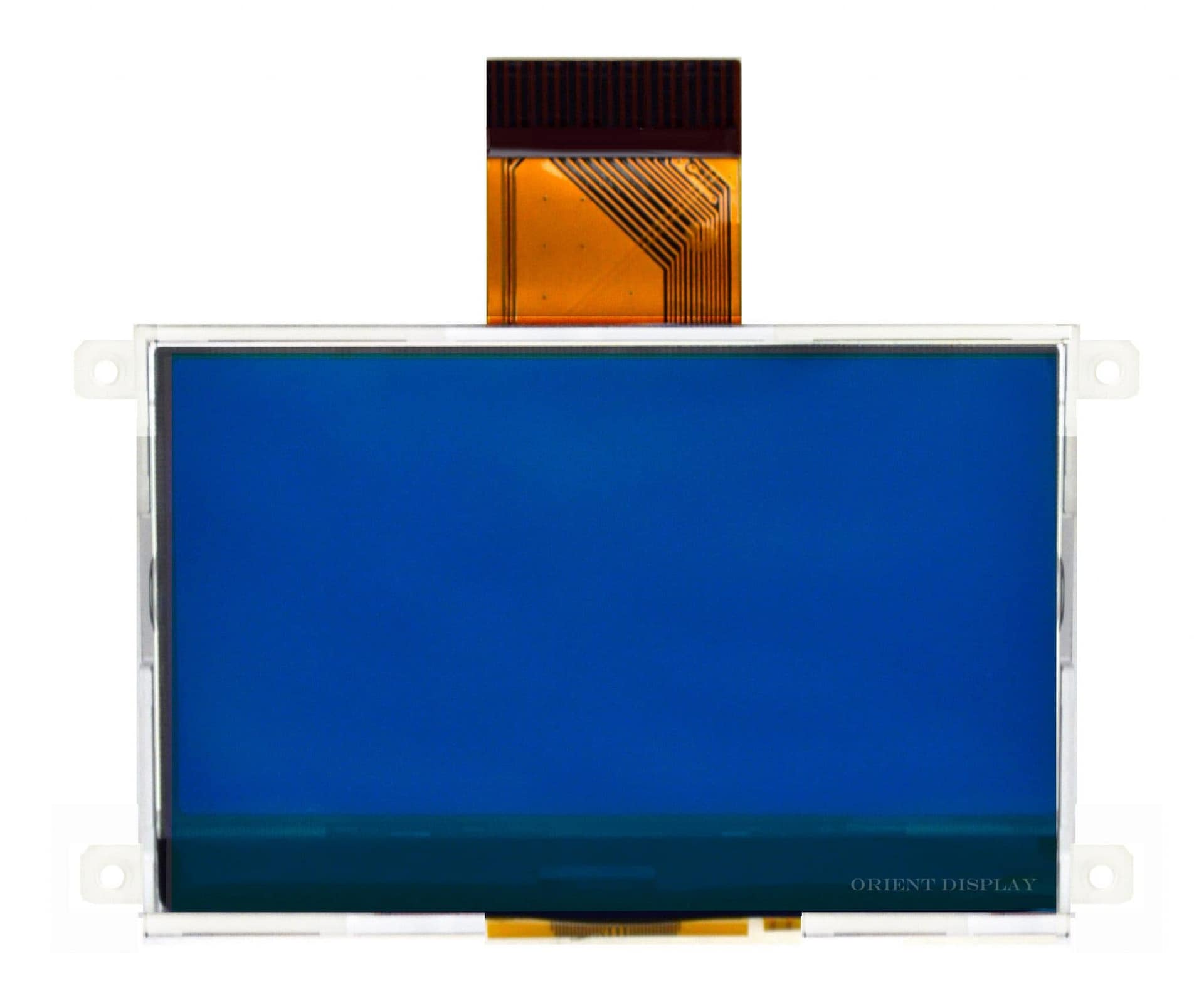

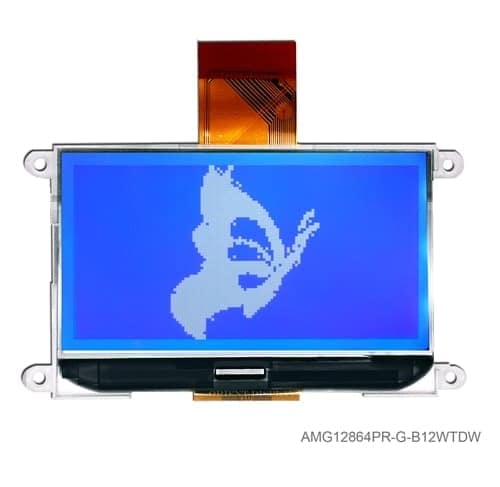

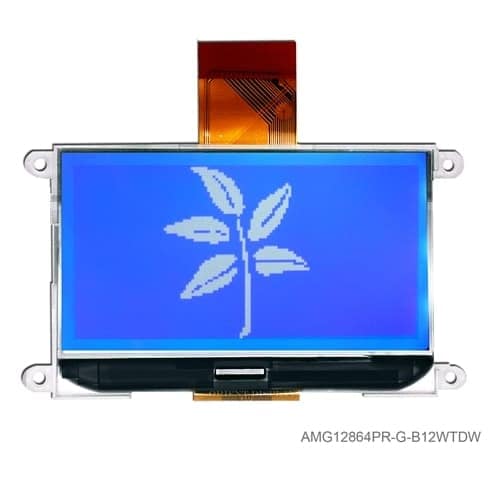

AMG12864PR-G-B12WTDW (2.9″ 128×64 COG LCD Module)
$13.04CONTACT FOR VOLUME PRICING
2 in stock
- Diagonal Dimension: 2.9 Inch
- Resolution: 128 x 64 pixels
- LCD mode: STN Negative Blue
- Polarizer: Transmissive
- Backlight: White LED
- White on Blue Background
- Connection: FPC
- IC Package Type: COG
Pricing table
| Quantity | Unit Price |
|---|---|
| 25-49 | $11.52 |
| 50-99 | $10 |
| 100-149 | $9.21 |
| 150-199 | $8.56 |
| 200- | $7.91 |
Contact us for larger volume orders and any other enquiries.
Description
A 2.9″ monochrome, 128×64 dot matrix, COG (Chip on Glass) Graphic LCD Module in STN Negative Blue LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight.
AMG12864PR-G-B12WTDW
It has a twelve O’clock viewing direction and a transmissive polarizer suitable for darker environment. This product is assembled chip on glass with 1/65 Duty and 1/9 Bias. This LCD uses Controller IC ST7565P or equivalent with an option to choose between serial interface (4-line SPI) and parallel interface (6800 or 8080). This is an ROHS compliant product manufactured with ISO standards and procedures.
The highest quality product at the lowest price.
- STN Negative Blue
- 12 o’clock Viewing Direction
- Operating Temp: -20°C to 70°C
- Storage Temp: -30°C to 80°C
- Transmissive Polarizer
- White LED Backlight
- COG Type (Chip on Glass)
- ROHS Compliant
Controller Datasheet: ST7565P
Product Demo (Video): AMG12864PR-G-B12WTDW
Controller Example Codes: AMG12864PR-G-B12WTDW-Display-Code

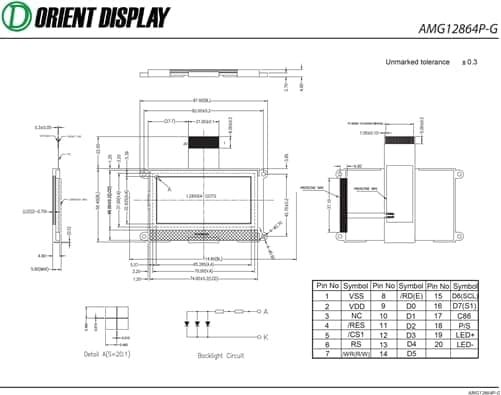

| Model/Series Name | AMG12864P-G |
| Dots/ Resolution | 128 x 64 |
| LCD Mode | STN Negative Blue |
| Polarizer Type | Transmissive |
| Diagonal Dimension (inches) | 2.9 |
| Module Size WxHxT max(mm) | 87.6 x 50.4 x 5.9 |
| View Area WxH (mm) | 70.0 x 37.0 |
| Dot Size WxH (mm) | 0.495 x 0.495 |
| Dot Pitch WxH (mm) | 0.51 x 0.51 |
| Backlight | White LED |
| Controller | ST7565P or equivalent |
| LCD Assembly | COG (Chip on Glass) |
| Interface Type Options: | Serial: 4-Line SPI
Parallel: 6800 or 8080 |
Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.
Please send your inquiries to info@orientdisplay.com
Additional information
| Weight | 0.21 lbs |
|---|---|
| Dimensions | 50.4 × 87.6 × 5.9 mm |
| backlightcolor | |
| diagonal-size | |
| displaymode | |
| displaytype | |
| polarizertype | |
| resolution | |
| touchpanel | |
| viewingdirection |
Reviews (0)
Shipping & Delivery
Related products
AM0186R-11 (282×128 dots COG LCD Module)
- Resolution: 282 x 128 pixels
- LCD mode: FSTN Positive
- Polarizer: Reflective
- Backlight: None
- Black on Gray Background
- Connection: FPC
- IC Package Type: COG

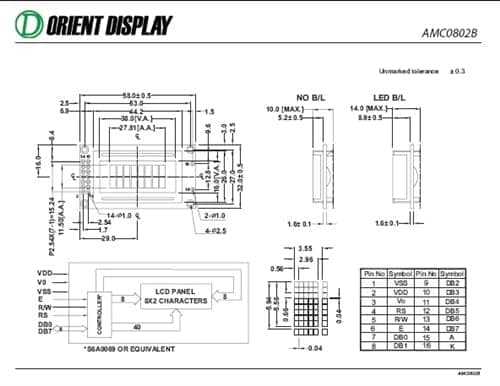

AMC0802BR-B-G6WFDY (8×2 Character LCD Module)
- Number of Characters: 8 x 2
- LCD mode: STN Positive Gray
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB

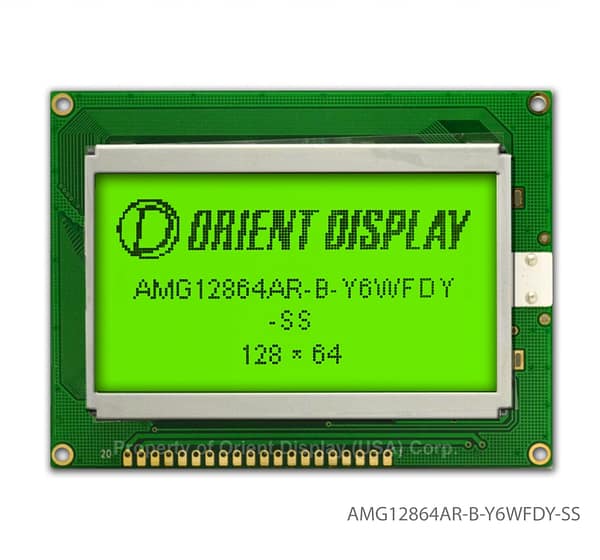

AMG12864AR-B-Y6WFDY-SS (2.9″ 128×64 Graphic LCD Module) NO DC-DC
- Diagonal Dimension: 2.9 Inch
- Resolution: 128 x 64 pixels
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark on Yellow Green Background
- Connection: Pin
- IC Package Type: COB
- Features: No DC-DC
AMG12232DR-B-G6WFDW (2.2″ 122×32 Graphic LCD Module)
- Diagonal Dimension: 2.2 Inch
- Resolution: 122 x 32 pixels
- LCD mode: STN Positive Gray
- Polarizer: Transflective
- Backlight: White LED
- Dark on Gray Background
- Connection: Pin
- IC Package Type: COB
AMG128128PR-G-W12WFDW (2.1″ 128×128 COG LCD Module)
- Diagonal Dimension: 2.1 Inch
- Resolution: 128 x 128 pixels
- LCD mode: FSTN Positive
- Polarizer: Transflective
- Backlight: White LED
- Black on Gray Background
- Connection: FPC
- IC Package Type: COG

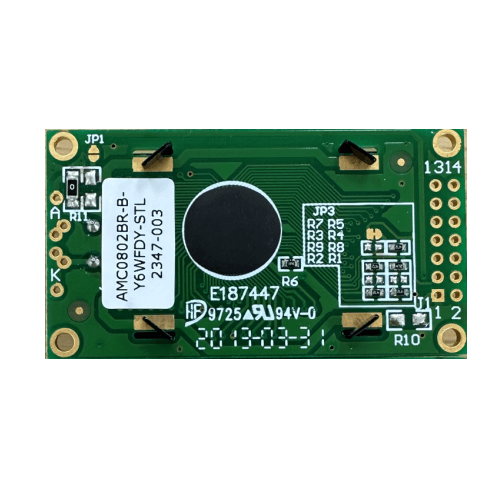

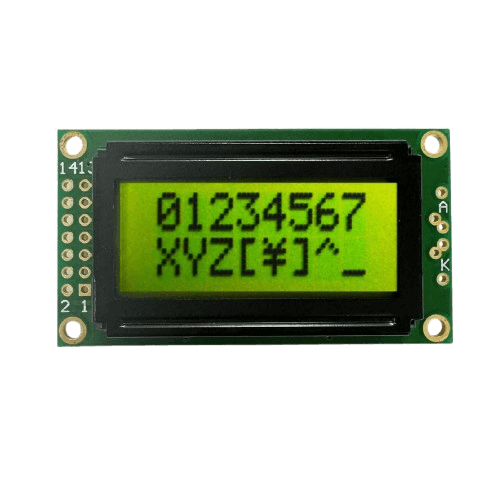

AMC0802BR-B-Y6WFDY-SPI (8×2 Character LCD Module – SPI Interface)
- Number of Characters: 8 x 2
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark Character on Yellow Green Background
- IC Package Type: COB
AMG12864JR-B-Y6WFDY-NV (2.4″ 128×64 Graphic LCD Module)
- Diagonal Dimension: 2.4 Inch
- Resolution: 128 x 64 pixels
- LCD mode: STN Positive Yellow Green
- Polarizer: Transflective
- Backlight: Yellow Green LED
- Dark on Yellow Green Background
- Connection: Pin
- IC Package Type: COB

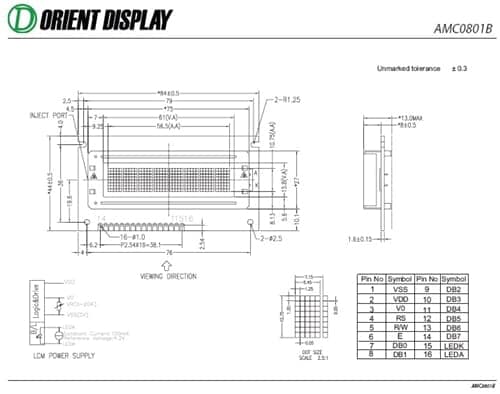

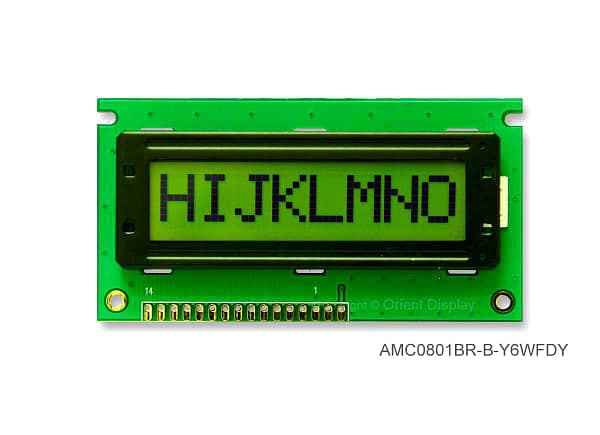

AMC0801BR-B-Y6WFDY (8×1 Character LCD Module)
