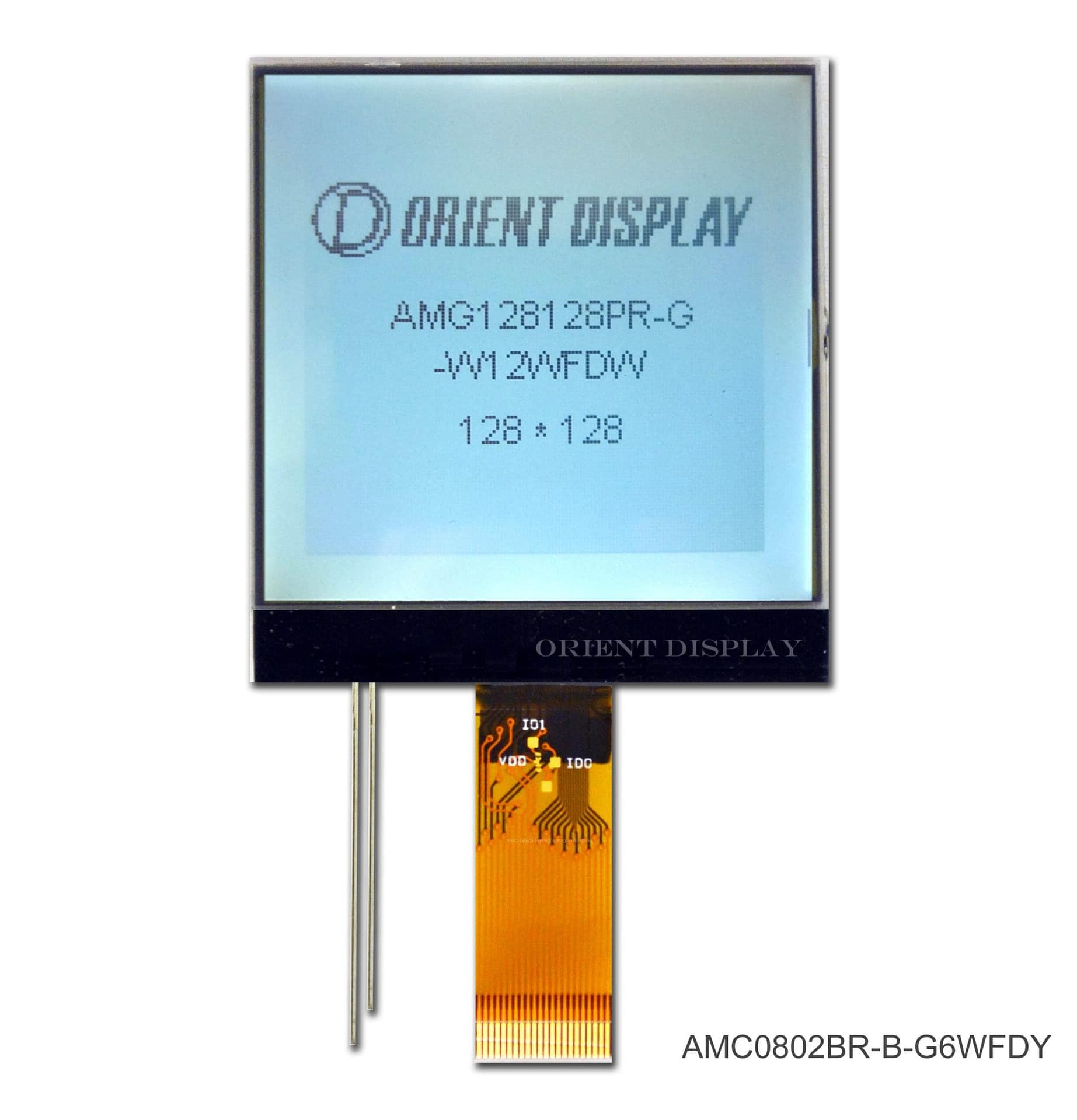

AMG128128PR-G-W12WFDW (2.1" 128x128 COG LCD Module)
AMG128128PR-G-W12WFDW (2.1" 128x128 COG LCD Module)
AMG128128PR-G-W12WFDW (2.1" 128x128 COG LCD Module)
AMG128128PR-G-W12WFDW (2.1" 128x128 COG LCD Module)
Click to enlarge
HomeLCD DisplaysLCD Graphic Displays AMG128128PR-G-W12WFDW (2.1″ 128×128 COG LCD Module)
Previous product
AMG12232DR-B-B6WTDW (2.2" 122x32 Graphic LCD Module)
AMG12232DR-B-B6WTDW (2.2" 122x32 Graphic LCD Module) $11.38
Back to products
Next product
AMG12864JR-B-Y6WFDY-NV (2.4" 128x64 Graphic LCD Module)
AMG12864JR-B-Y6WFDY-NV (2.4" 128x64 Graphic LCD Module) $13.54

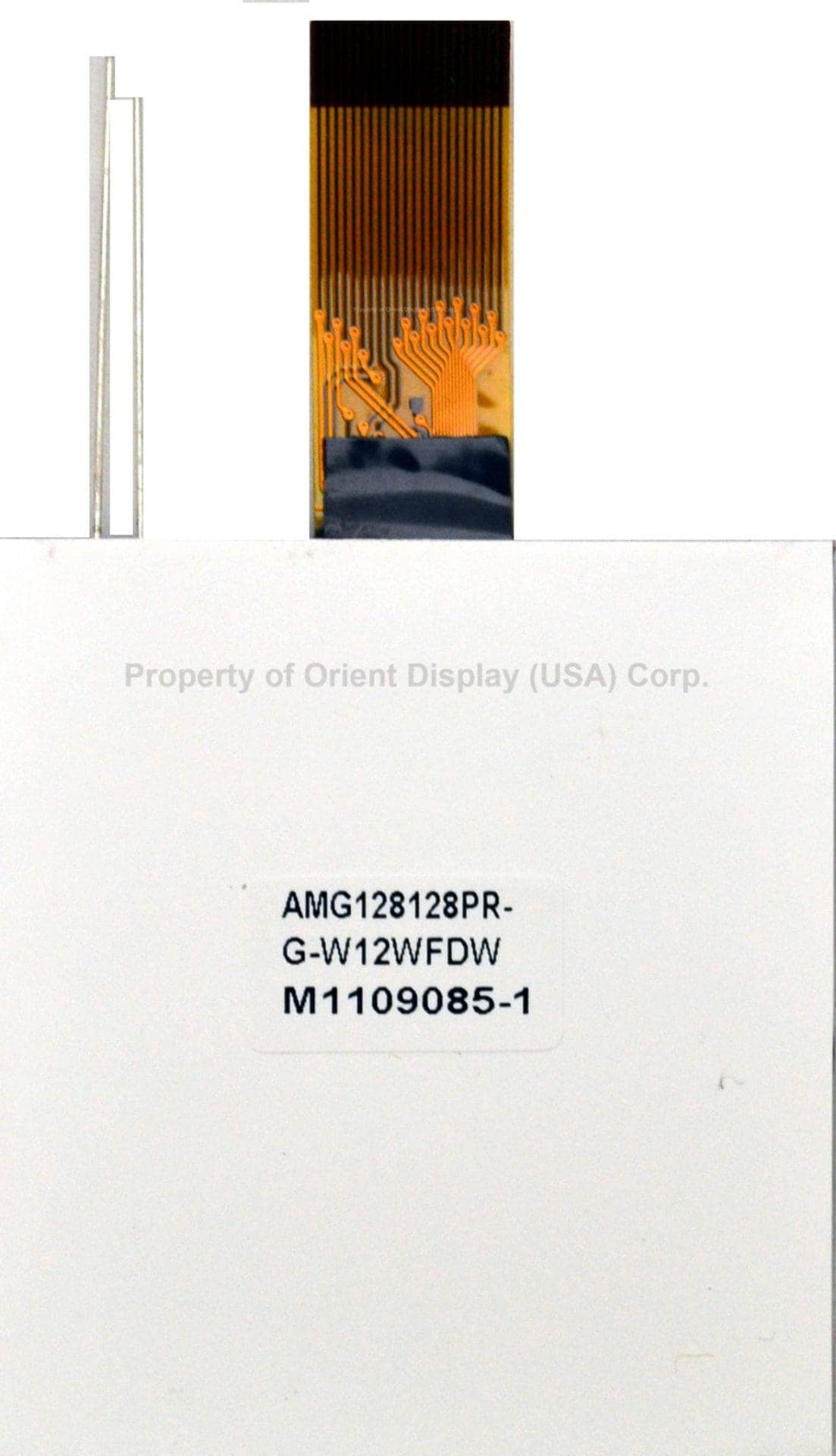

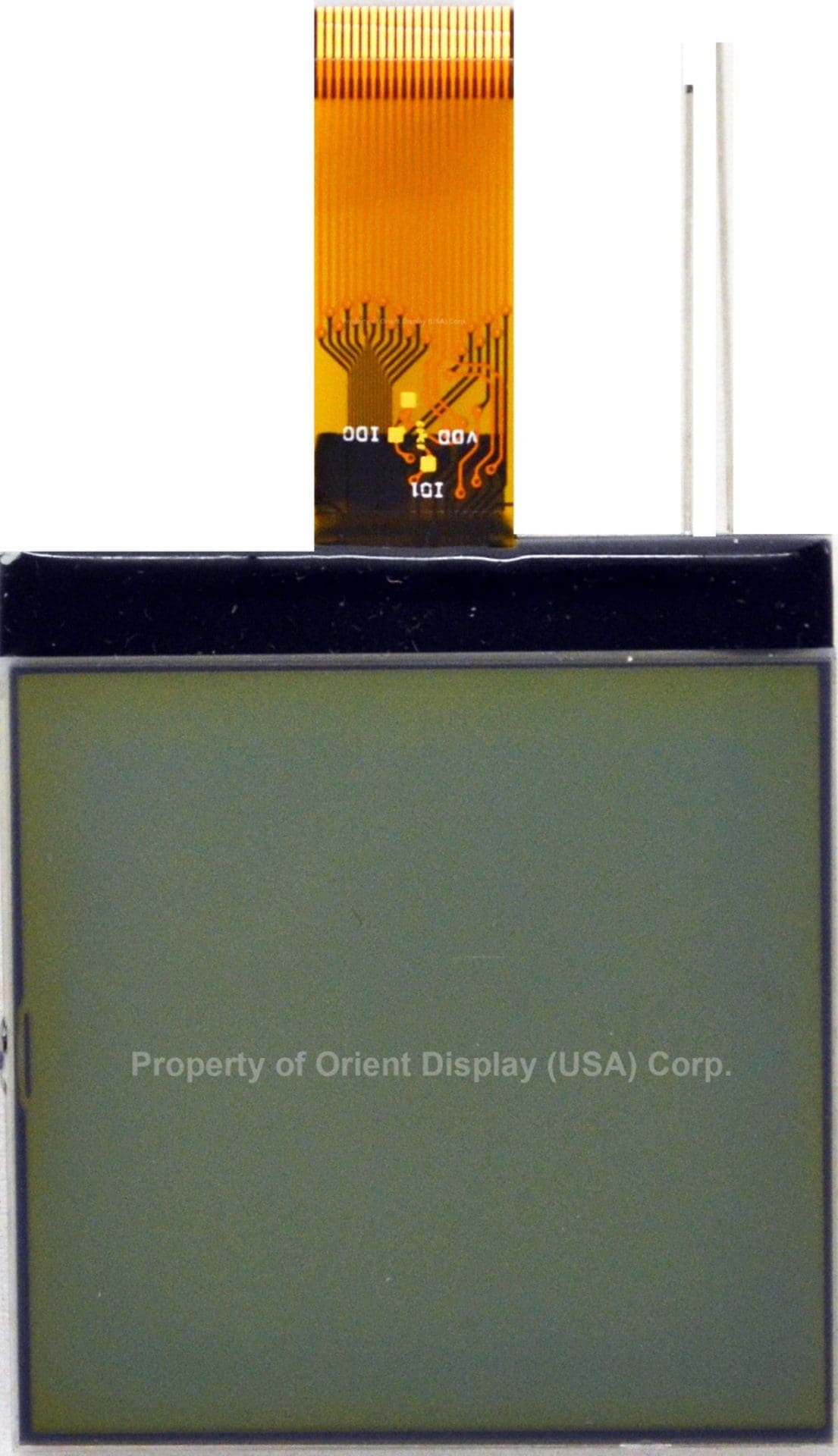

AMG128128PR-G-W12WFDW (2.1″ 128×128 COG LCD Module)

$12.38

  • Diagonal Dimension: 2.1 Inch
  • Resolution: 128 x 128 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transflective
  • Backlight: White LED
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG

Pricing table

QuantityUnit Price
25-49$10.94
50-99$9.5
100-149$8.76
150-199$8.14
200-$7.52

Contact us for larger volume orders and any other enquiries.

80 in stock

Compare
Add to wishlist
SKU: AMG128128PR-G-W12WFDW Categories: LCD Graphic Displays, COG, LCD Display Modules
Share
Facebook Email linkedin
  • Description
  • Additional information
  • Reviews (0)
  • Shipping & Delivery
Description

A 2.1″ monochrome, 128×128 dot matrix, COG (Chip on Glass) Graphic LCD Module in FSTN Positive LCD Mode with Wide Temperature Range (Operating Temp: -20°C to 70°C, Storage Temp: -30°C to 80°C), and White LED Backlight. It has a twelve O’clock viewing direction and a transflective polarizer, recommended for both indoor and outdoor applications. This product is assembled Chip On Glass with 1/128 Duty cycle and 1/11 Bias. This LCD uses controller IC UC1617 or equivalent with parallel interface. This is an ROHS compliant product manufactured with ISO standards and procedures.

The highest quality product at the lowest price.

  • FSTN Positive
  • 12 o’clock Viewing Direction
  • Operating Temp: -20°C to 70°C
  • Storage Temp: -30°C to 80°C
  • Transflective Polarizer
  • White LED Backlight
  • COG Type (Chip on Glass)
  • ROHS Compliant



Download Product References Below

Product Datasheet: AMG128128P-G

Controller Datasheet: UC1617



Product Demo (Video): AMG128128PR-G-W12WFDW

Controller Example Codes: AMG128128PR-G-W12WFDW Display Codes

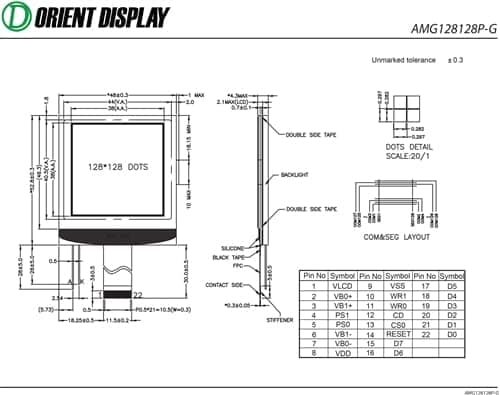

Model/Series Name AMG128128P-G
Dots/ Resolution 128×128
LCD Mode FSTN Positive
Polarizer Type Transflective
Diagonal Dimension (inches) 2.1
Module Size WxHxT max(mm) 48.0 x 52.8 x 4.3
View Area WxH (mm) 44.0 x 40.5
Dot Size WxH (mm) 0.282 x 0.282
Dot Pitch WxH (mm) 0.297 x 0.297
Backlight White LED
Controller UC1617 or equivalent
LCD Assembly COG (Chip on Glass)

Please visit Orient Display to see the full range of Character LCD Modules, Graphic LCD Modules, LCD Glass Panels, and Full Colored TFT Modules that we can offer.



Please send your inquiries to info@orientdisplay.com

Additional information
Weight 0.33 lbs
Dimensions 52.8 × 48 × 2.85 mm
backlightcolor

White

diagonal-size

2.1

displaymode

FSTN – Positive

displaytype

Graphic LCD

polarizertype

Transflective

resolution

128×128

touchpanel

None

viewingdirection

12 o'clock

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “AMG128128PR-G-W12WFDW (2.1″ 128×128 COG LCD Module)” Cancel reply

Your email address will not be published. Required fields are marked *

Shipping & Delivery

Related products

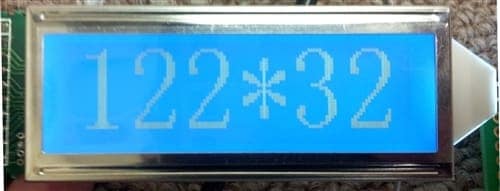

AMG12232DR-B-B6WTDW (2.2" 122x32 Graphic LCD Module)
AMG12232DR-B-B6WTDW (2.2" 122x32 Graphic LCD Module)
Compare
Close

AMG12232DR-B-B6WTDW (2.2″ 122×32 Graphic LCD Module)

LCD Graphic Displays, COB, LCD Display Modules
$11.38
  • Diagonal Dimension: 2.2 Inch
  • Resolution: 122 x 32 pixels
  • LCD mode: STN Negative Blue
  • Polarizer: Transmissive
  • Backlight: White LED
  • White on Blue Background
  • Connection: Pin
  • IC Package Type: COB
Add to wishlist
Add to cart
Quick view
Compare
Close

AM0186R-11 (282×128 dots COG LCD Module)

LCD Graphic Displays, COG, LCD Display Modules
$4.12
  • Resolution: 282 x 128 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Reflective
  • Backlight: None
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG
Add to wishlist
Add to cart
Quick view
Sold out
AMG240128PR-G-B6WTDW (4.0" 240x128 Graphic COG LCD Module)
AMG240128PR-G-B6WTDW (4.0" 240x128 Graphic COG LCD Module)
Compare
Close

AMG240128PR-G-B6WTDW (4.0″ 240×128 Graphic COG LCD Module)

LCD Graphic Displays, COG, LCD Display Modules
$20.46
  • Diagonal Dimension: 4.0 Inch
  • Resolution: 240 x 128 pixels
  • LCD mode: STN Negative Blue
  • Polarizer: Transmissive
  • Backlight: White LED
  • White on Blue Background
  • Connection: FPC
  • IC Package Type: COG
Add to wishlist
Read more
Quick view
AMC0802BR-B-Y6WFDY-I2C (8x2 Character LCD Module - I2C Interface)
AMC0802BR-B-Y6WFDY-I2C (8x2 Character LCD Module - I2C Interface)
Compare
Close

AMC0802BR-B-Y6WFDY-I2C (8×2 Character LCD Module – I2C Interface)

Monochrome STN LCD, I2C, LCD Display Modules
$5.43
  • Number of Characters: 8 x 2
  • LCD mode: STN Positive Yellow Green
  • Polarizer: Transflective
  • Backlight: Yellow Green LED
  • Dark Character on Yellow Green Background
  • IC Package Type: COB
Add to wishlist
Add to cart
Quick view
AMG24064P-G-W6WFDW (4.3" 240x64 COG LCD Module)
AMG24064P-G-W6WFDW (4.3" 240x64 COG LCD Module)
Compare
Close

AMG24064P-G-W6WFDW (4.3″ 240×64 COG LCD Module)

LCD Graphic Displays, COG, LCD Display Modules
$15.99
  • Diagonal Dimension: 4.3 Inch
  • Resolution: 240 x 64 pixels
  • LCD mode: FSTN Positive
  • Polarizer: Transflective
  • Backlight: White LED
  • Black on Gray Background
  • Connection: FPC
  • IC Package Type: COG
Add to wishlist
Add to cart
Quick view
AMG12864AR-B-Y6WFDY-AT-NV-Y (2.9" 128x64 Graphic LCD Module)
AMG12864AR-B-Y6WFDY-AT-NV-Y (2.9" 128x64 Graphic LCD Module)
Compare
Close

AMG12864AR-B-Y6WFDY-AT-NV-Y (2.9″ 128×64 Graphic LCD Module)

LCD Graphic Displays, COB, LCD Display Modules
$15.30
  • Diagonal Dimension: 2.9 Inch
  • Resolution: 128 x 64 pixels
  • LCD mode: STN Positive Yellow Green
  • Polarizer: Transflective
  • Backlight: Yellow Green LED
  • Dark on Yellow Green Background
  • Connection: Pin
  • IC Package Type: COB
Add to wishlist
Add to cart
Quick view

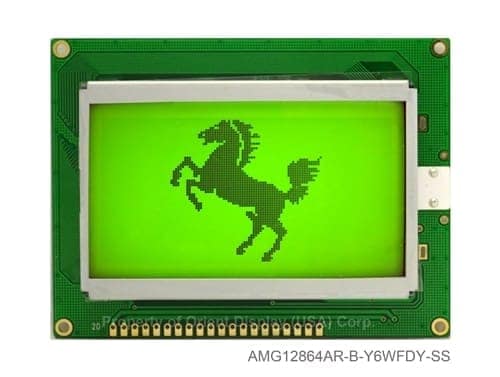

AMG12864AR-B-Y6WFDY-SS (2.9" 128x64 Graphic LCD Module) NO DC-DC
